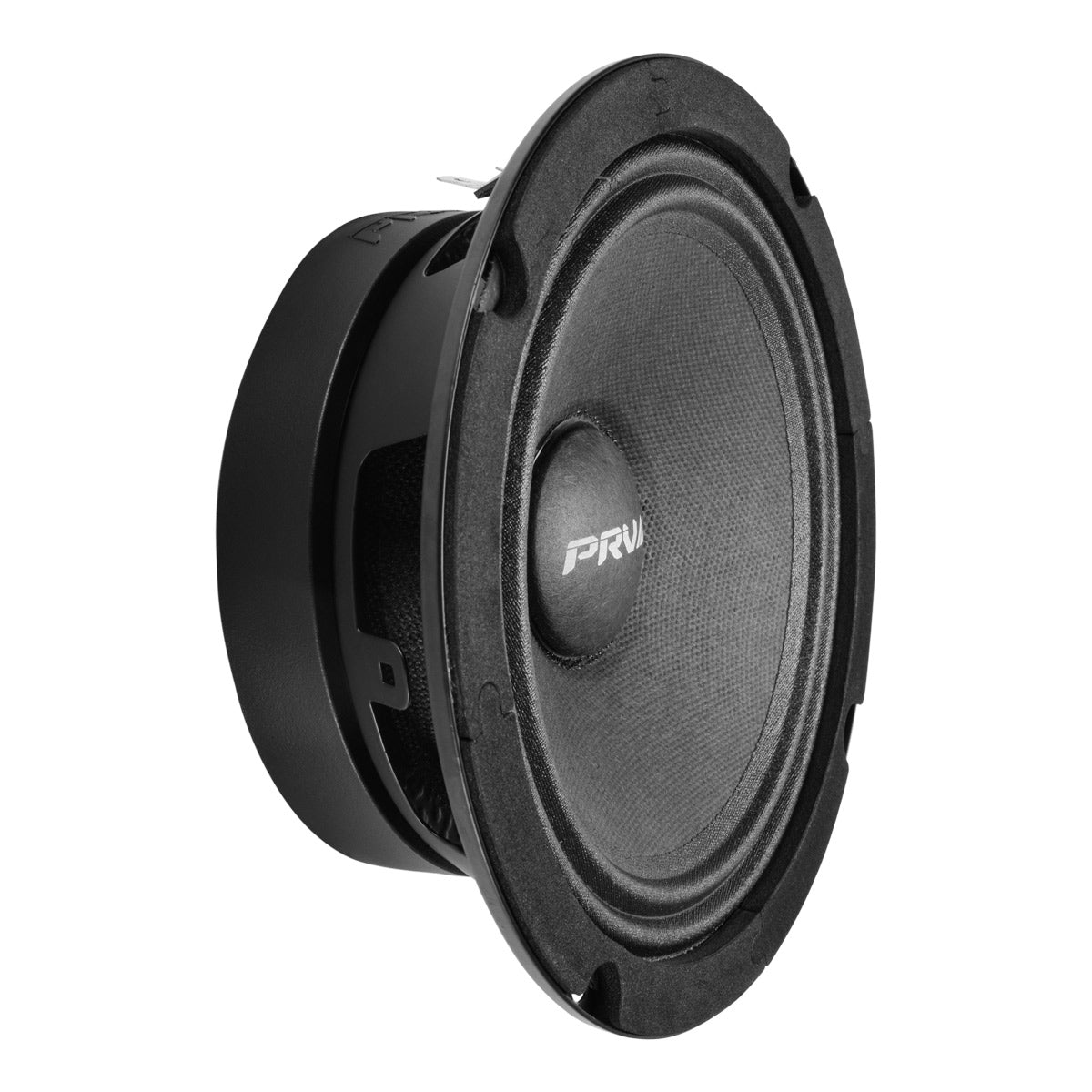

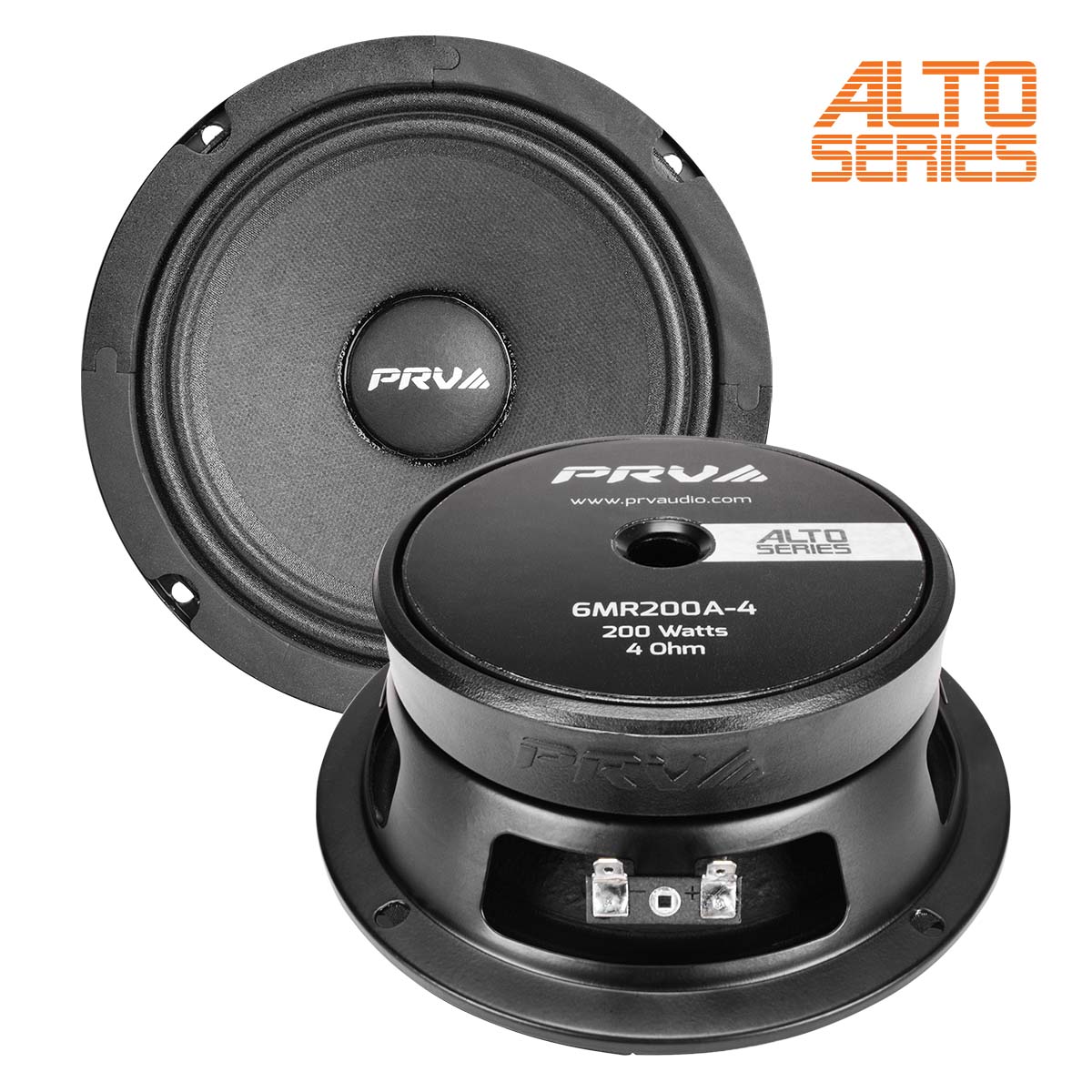

PRV 6MR200A-4 Midrange

PRV 6MR200A-4 Midrange

SKU: 6MR200A-4

PRV 6MR200A-4 Midrange

PRV 6MR200A-4 Midrange

SKU: 6MR200A-4

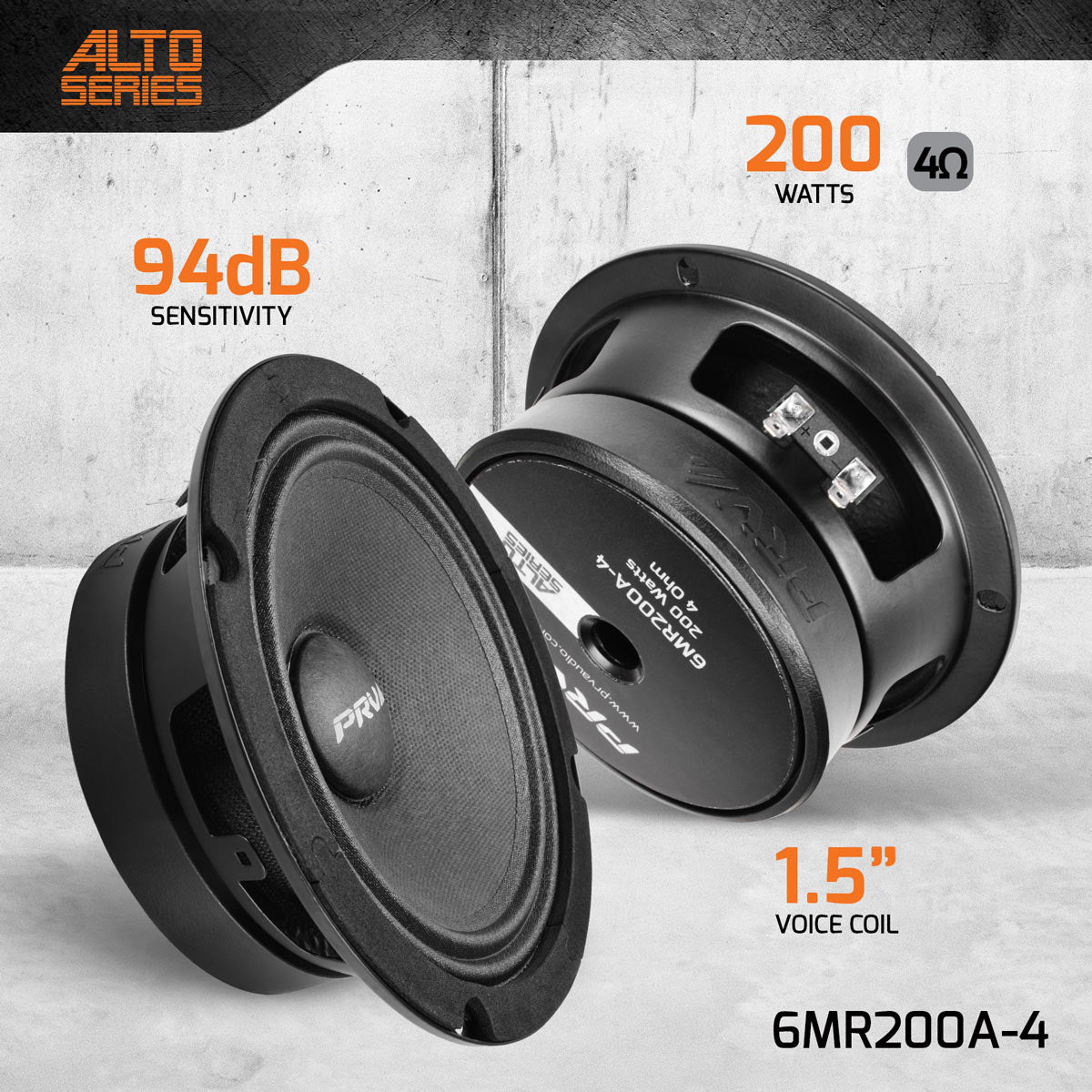

  • 6.5″ Midrange – 4 Ohm
  • Shallow Mount
  • 94 dB – 200 Watts

$24.91
$31.14

In stock
  • 6.5″ Midrange – 4 Ohm
  • Shallow Mount
  • 94 dB – 200 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

PRV Audio’s ALTO Series were carefully crafted and voiced to reproduce a natural, smooth sound while remaining dynamic. To get the superior fidelity, a special composite cone is used to smooth frequency response and to keep the moving mass low, increasing the efficiency. The 6MR200A-4 midrange speaker is our solution for PROAudioOnWheels® for Car audio systems.

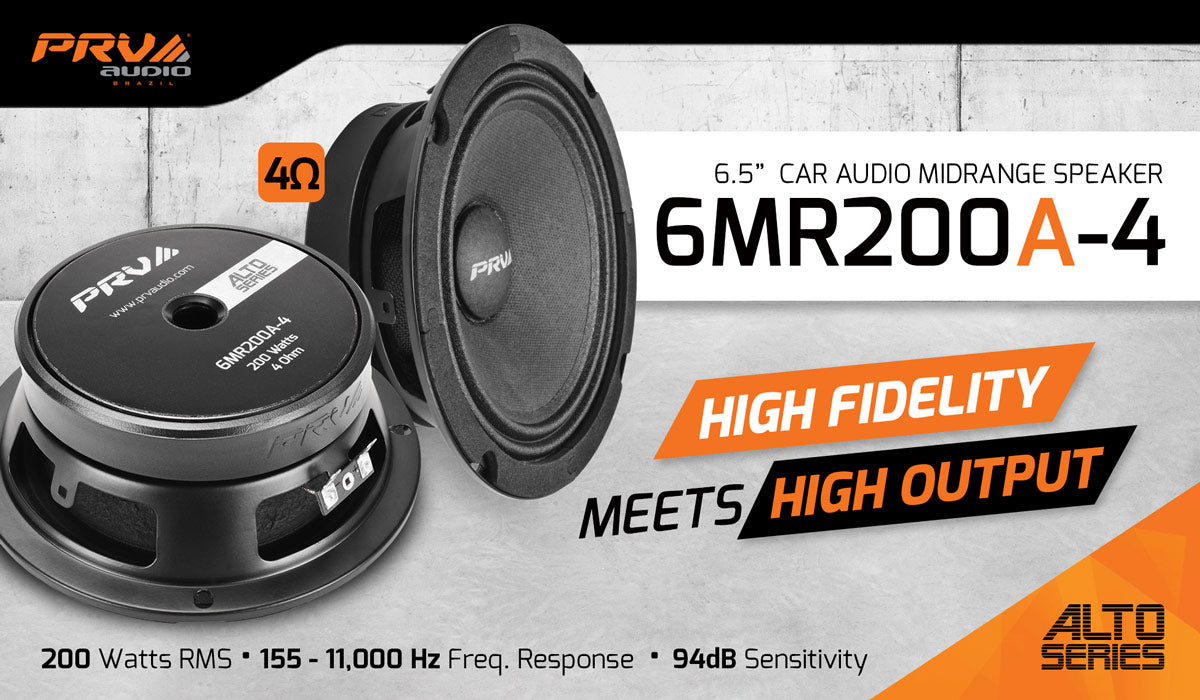

  • 6.5″ Car audio midrange speaker designed for Low Frequencies with shallow profile
  • 200 watts RMS program power gives capability of high acoustical output with small amplifier
  • Impressive choice for high output, car audio, and custom systems – 4 Ohm Impedance
  • Smooth response through the mid-bass and vocal range at at loudest volumes

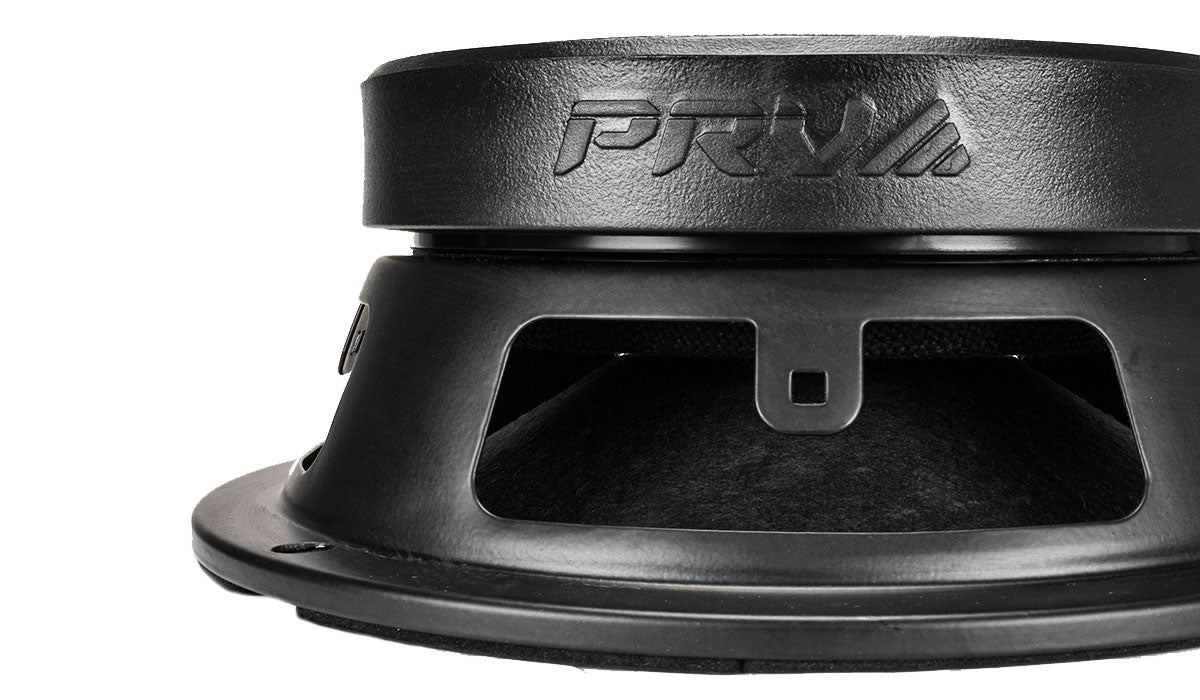

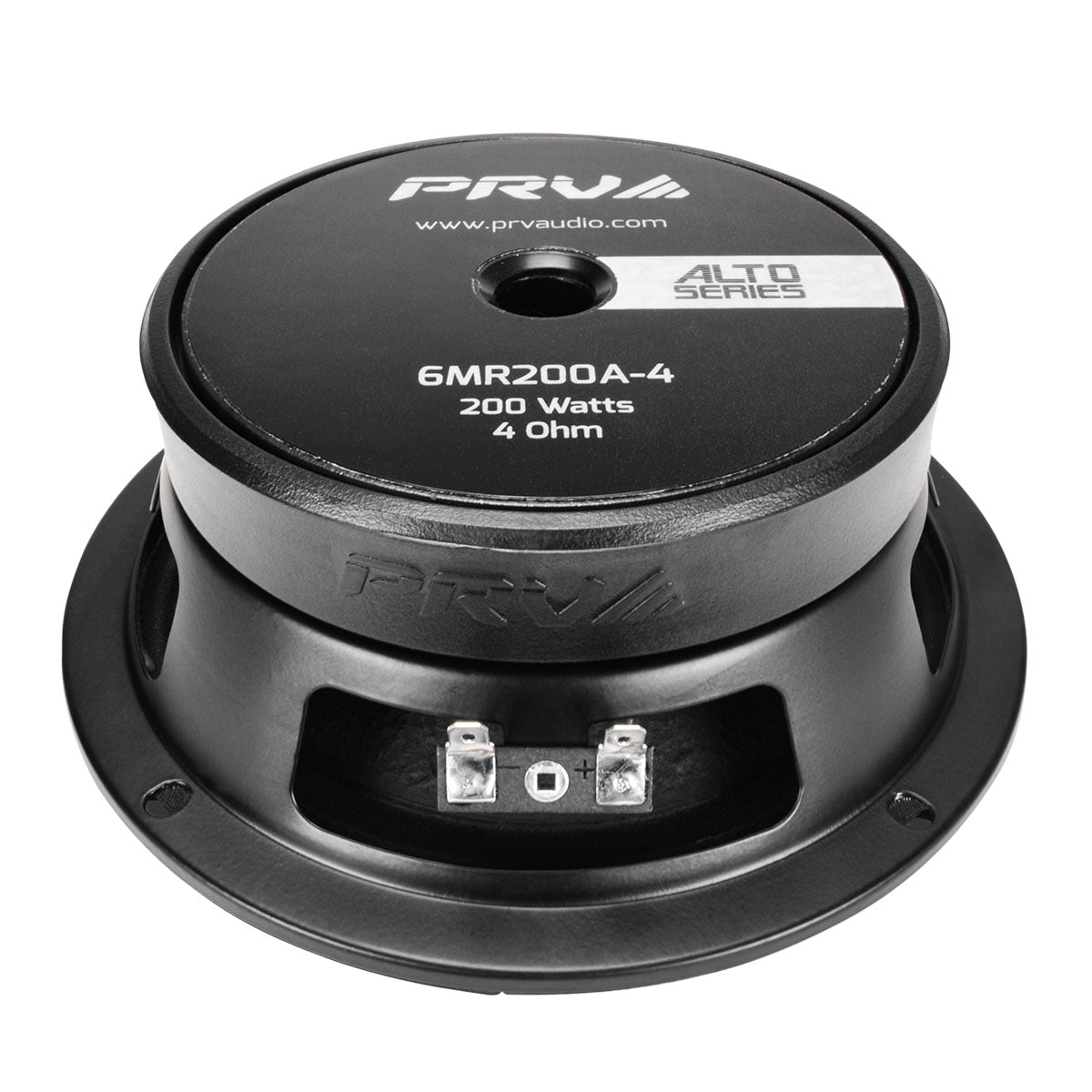

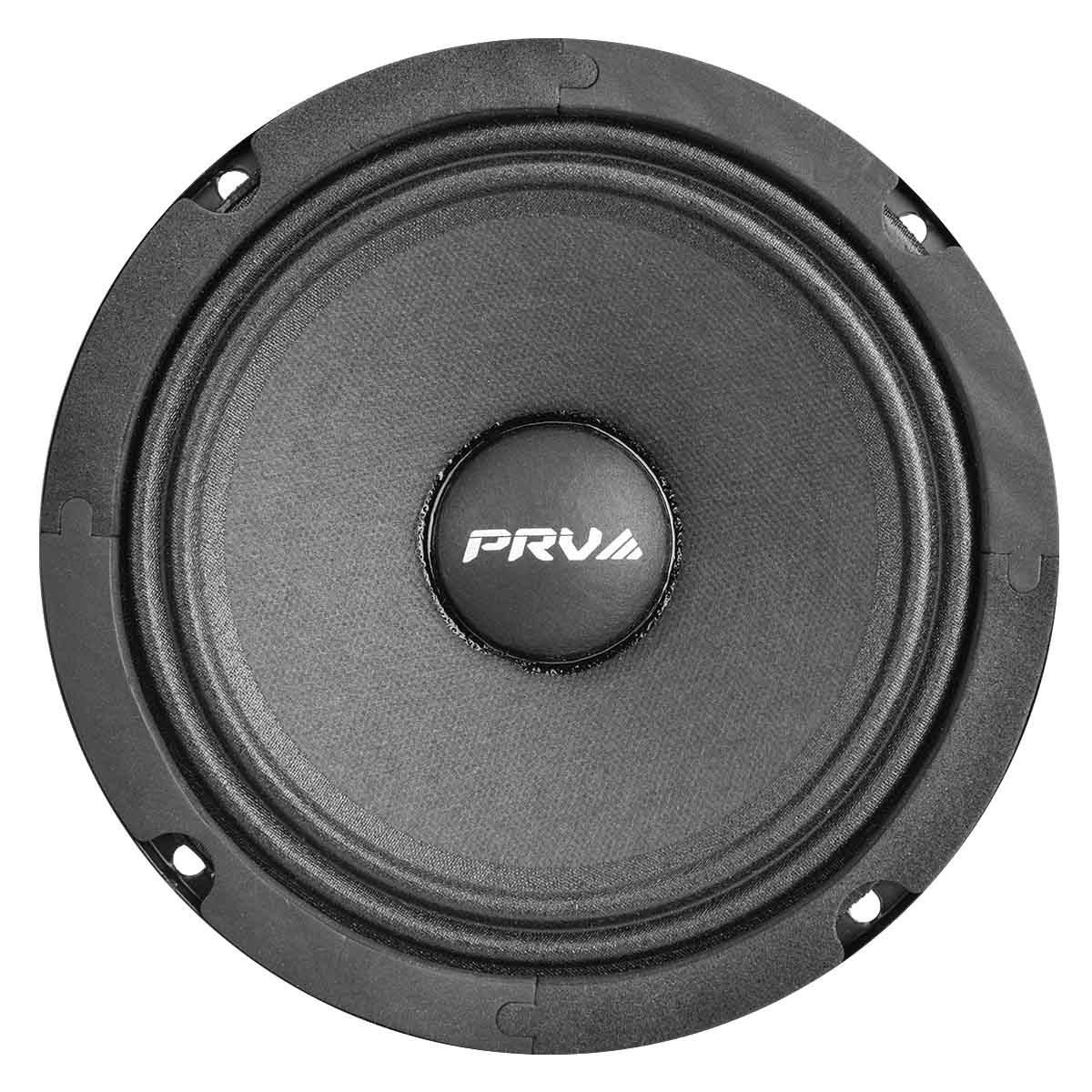

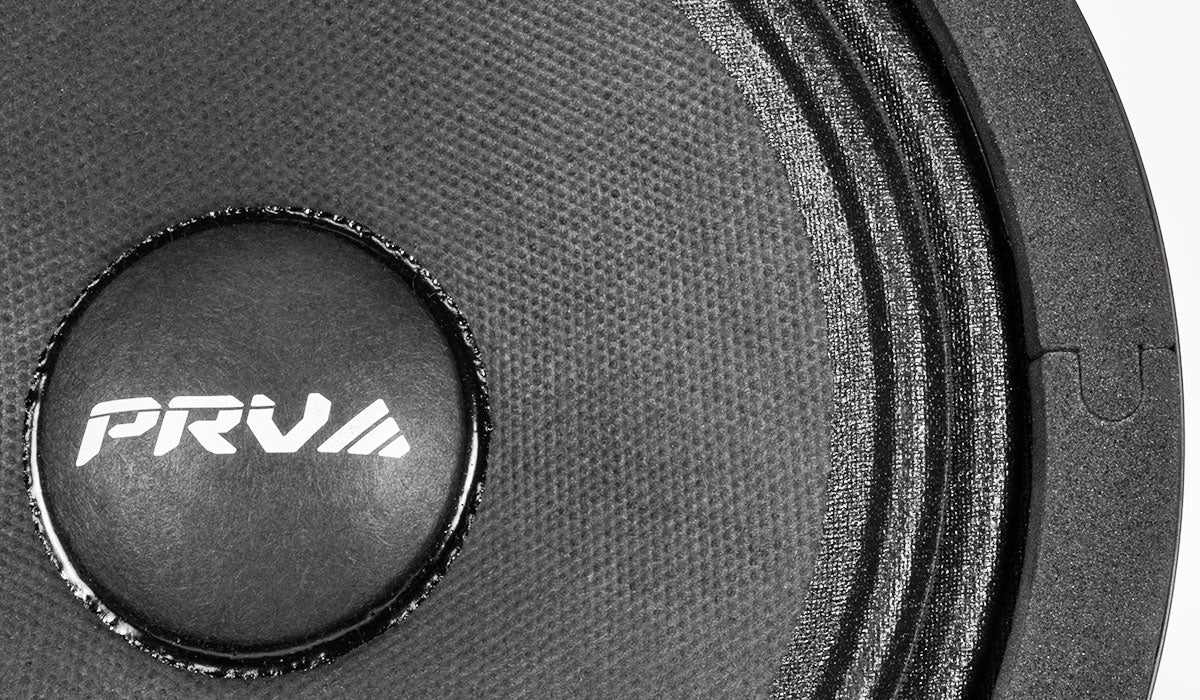

To ensure absolute signal fidelity, a cloth sealed surround is combined with a carefully crafted Kevlar-loaded paper cone. Additionally, a vented pole piece allows heat to escape for reduced power compression.

The 6MR200A midrange speaker is the evolution of the 6MR250A, this unit was designed with the goal of producing the highest possible output from a compact design without sacrificing performance, with only 2.24″ mounting depth.

This professional midrange speaker is purpose-built to cover from 100 Hz to 6,000 Hz in three-way speakers, but also works great as a midrange in a bass guitar speaker, as well as a woofer in two-way satellite speaker concept or even as a high output car audio door speaker.

PRV 6.5″ Midrange Car Speaker 6MR200A-4 200 Watts / 4 Ohm PRO Loudspeaker

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 6.5″ (165 mm)
  • Nominal Impedance 4 Ohm
  • Sensitivity 2.83V at 1m94 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 150 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 155 – 11,000 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth8.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.5 mm
  • Frame Material Stamped Steel
  • Magnet Type Shallow Mount

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 3.89 l
  • Excursion (mathematical)**
    • Xmax
    • 2.62 mm
  • Free Air Resonance
    • Fs
    • 138.3 Hz
  • Mechanical Factor
    • Qms
    • 9.47
  • Electrical Factor
    • Qes
    • 1.08
  • Total Factor
    • Qts
    • 0.97
  • Cone Area
    • Sd
    • 137 cm²
  • Mechanical Mass
    • Mms
    • 8.89 g
  • BI Factor
    • Bl
    • 4.92 Tm
  • Dc Resistance
    • Re
    • 3.4 Ohm
  • Inductance
    • Le
    • 0.18 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 7.98 g
  • Mechanical Compliance
    • Cms
    • 0.149 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6MR200A-4 Midrange DATASHEET Download

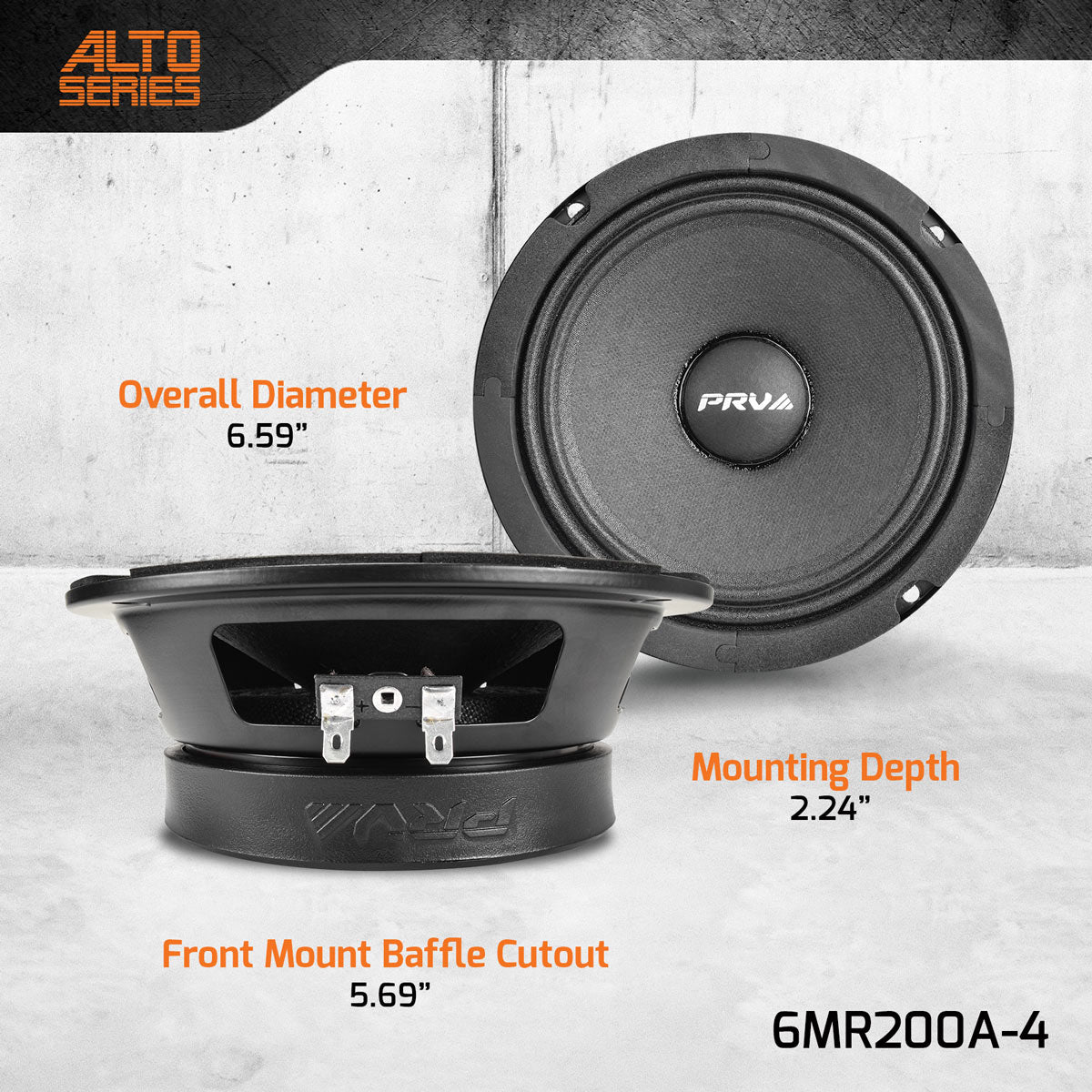

  • Overall Depth 2.5″ (63.5 mm)
  • Mounting Depth 2.24″ (57 mm)
  • Overall Diameter 6.59″ (167.5 mm)
  • Front Mount Baffle Cutout 5.69″ (144.5 mm)
  • Net Weight 3.52 Lbs (1.60 kg)
  • Shipping Weight 3.79 Lbs (1.75 kg)

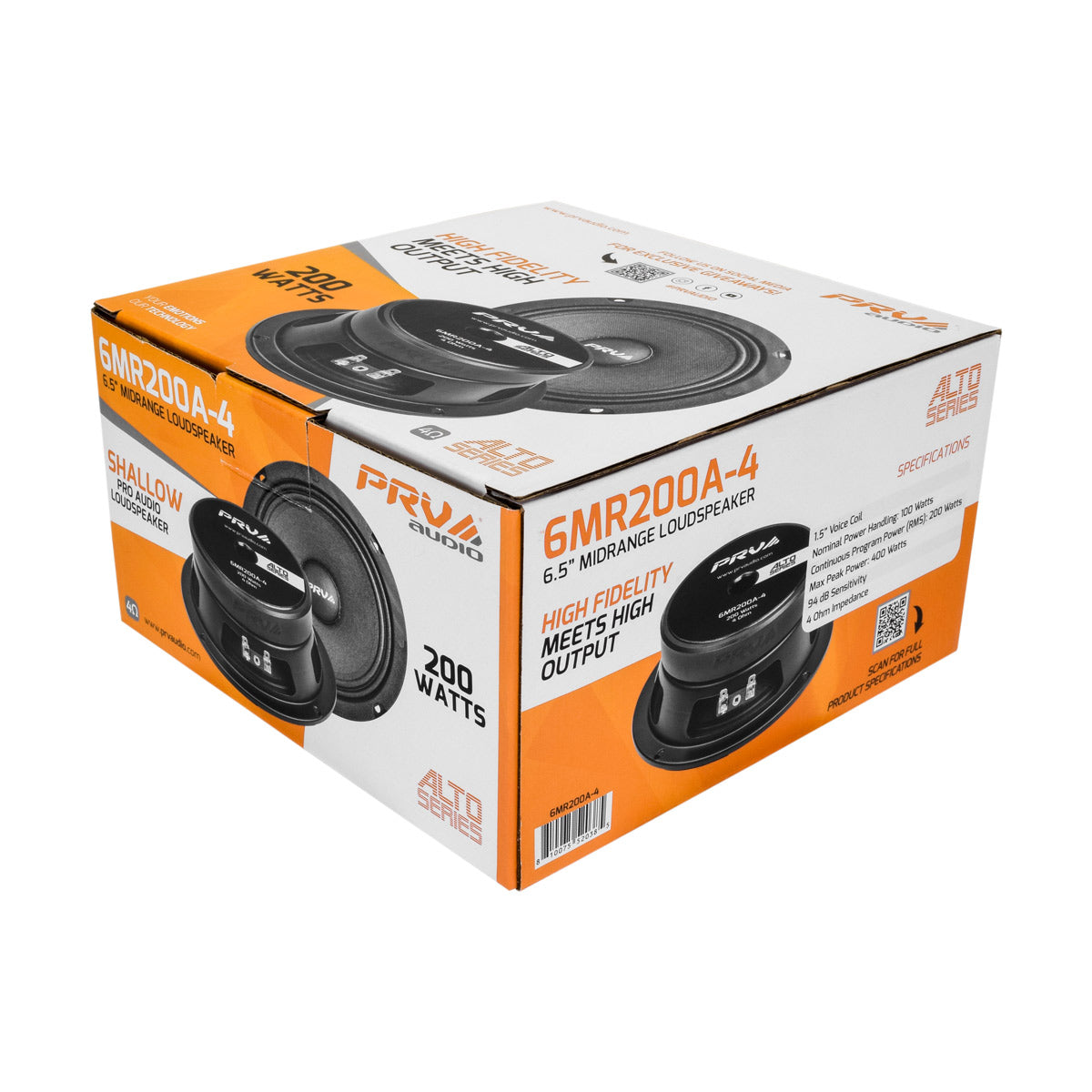

  • Carton Dimensions WxLxH 7.40″ x 7.48″ x 4.45″ (188 x 190 x 113 mm)
PRV 6MR200A-4 Midrange DATASHEET Download
