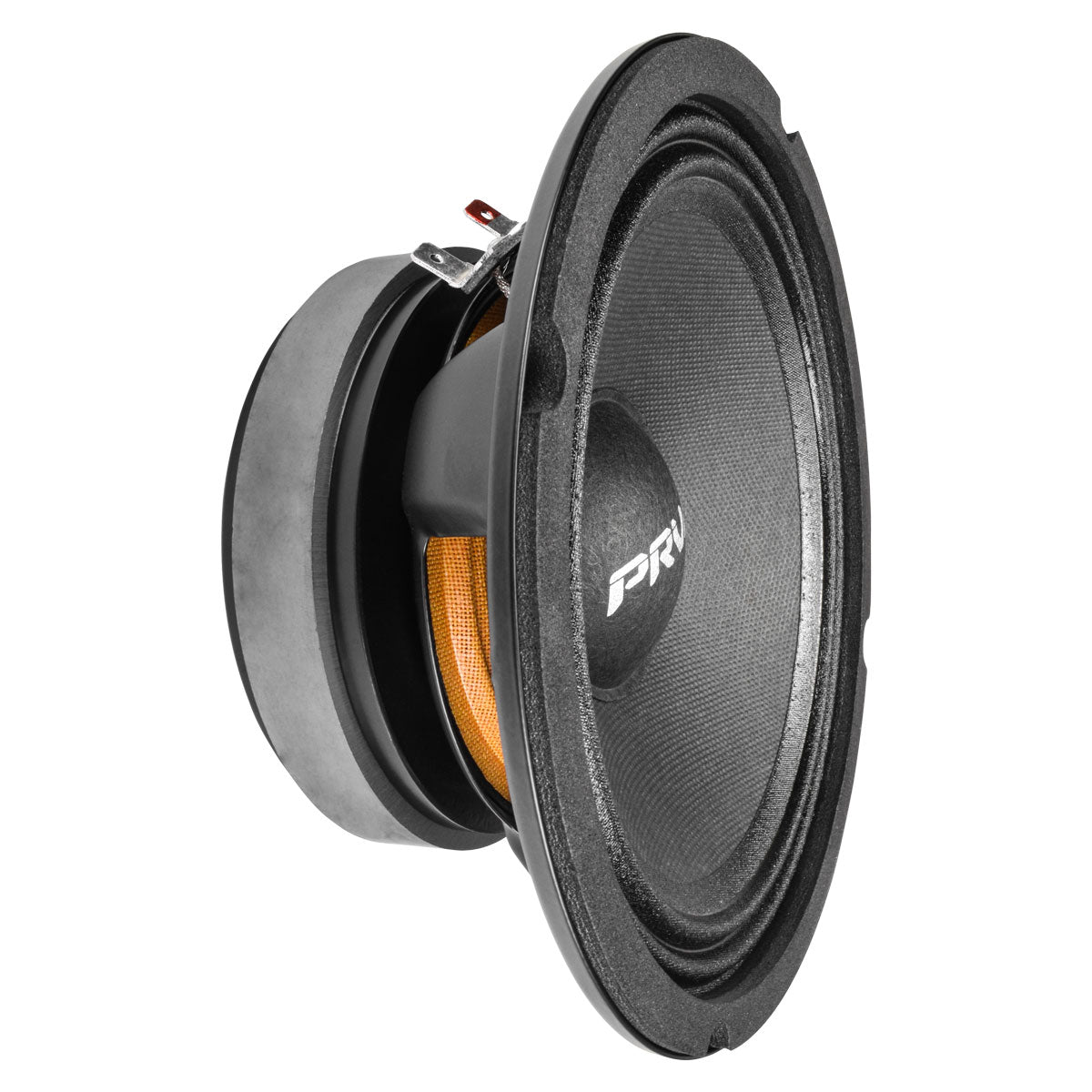

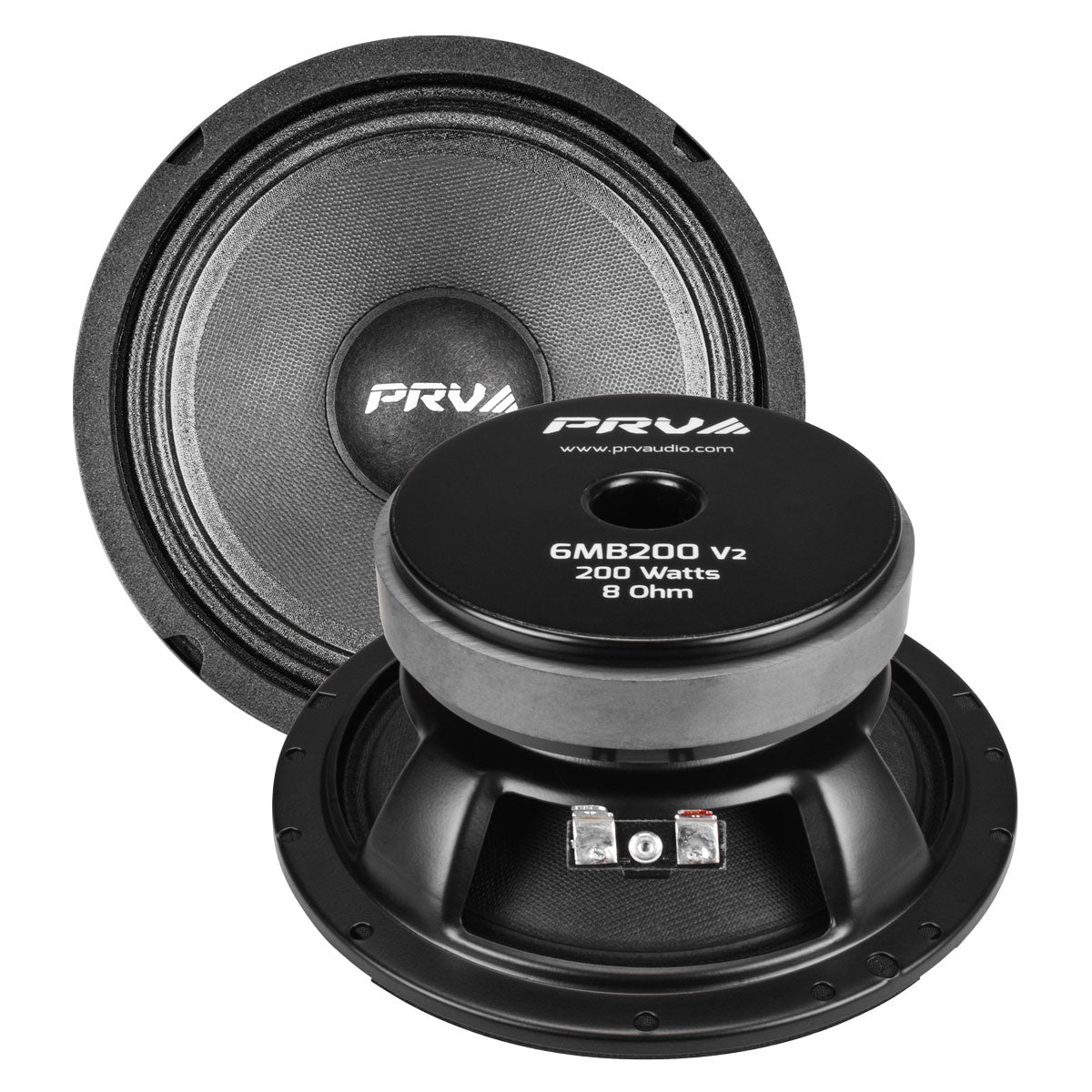

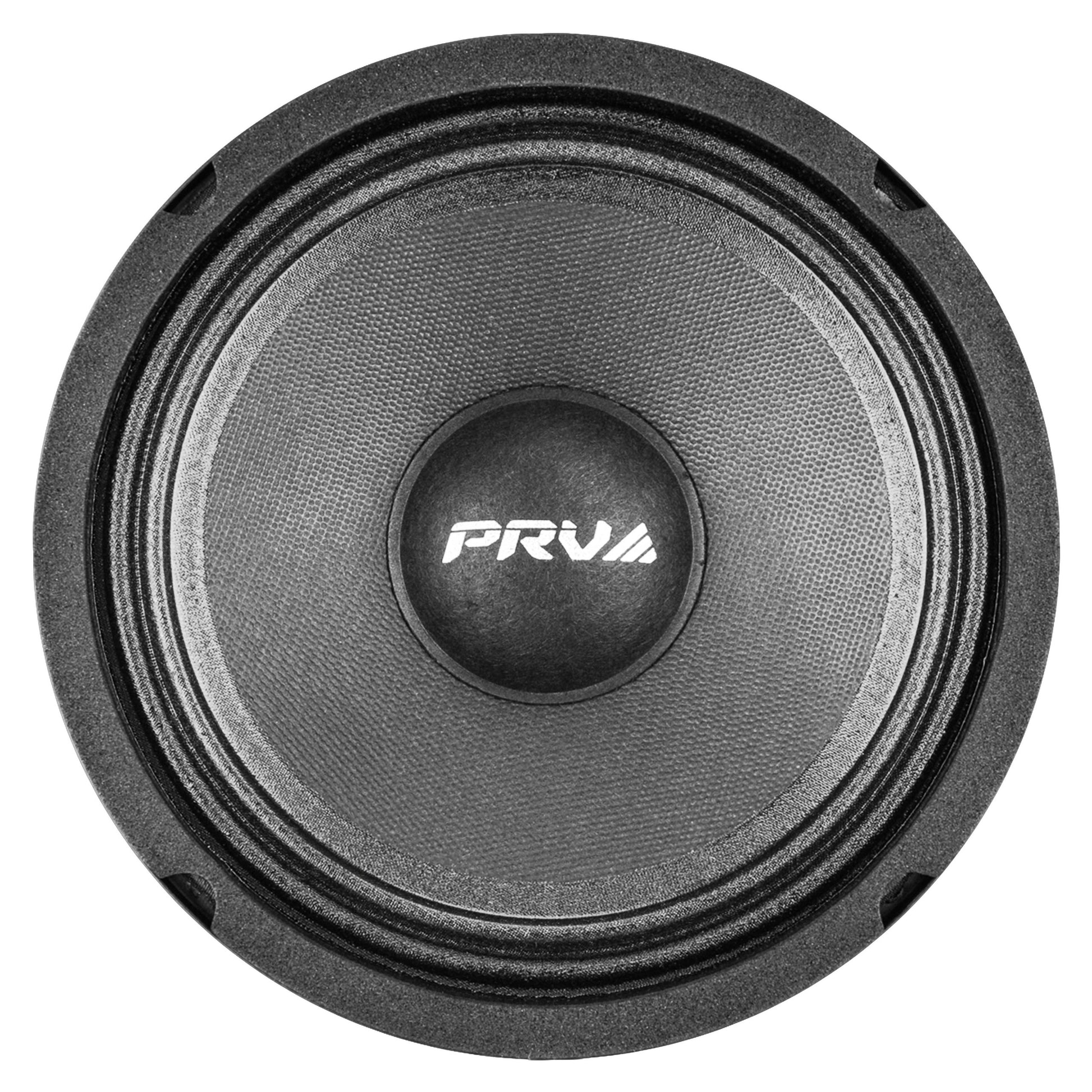

PRV 6MB200 v2 Midbass

PRV 6MB200 v2 Midbass

SKU: 6MB200 v2
Black Friday Special

PRV 6MB200 v2 Midbass

PRV 6MB200 v2 Midbass

SKU: 6MB200 v2

  • 6.5" Midbass - 8 Ohm
  • Ferrite Magnet
  • 93.5 dB - 200 Watts
$13.65
$37.39

In stock
  • 6.5" Midbass - 8 Ohm
  • Ferrite Magnet
  • 93.5 dB - 200 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The PRV Pro Audio 6MB200 v2 midbass woofer offers exceptional durability and smooth punch of mid bass response in a small enclosure. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

  • A deep midbass response along with a strong vocal response
  • Outstanding durability and strong impactful midbass even in small enclosures
  • Natural paper cone and double-roll surround for smooth response
  • Handles 200 Watts, guaranteeing endurance at loudest volumes
  • Impressive choice for high output home, car, and professional audio systems – 8 Ohm impedance also available in 4 Ohm

The 6MB200 v2 now has a more extended midrange response, up to 6.5 kHz giving it clean vocals. A perfect option for mid bass speaker replacements in three-way cabinets.

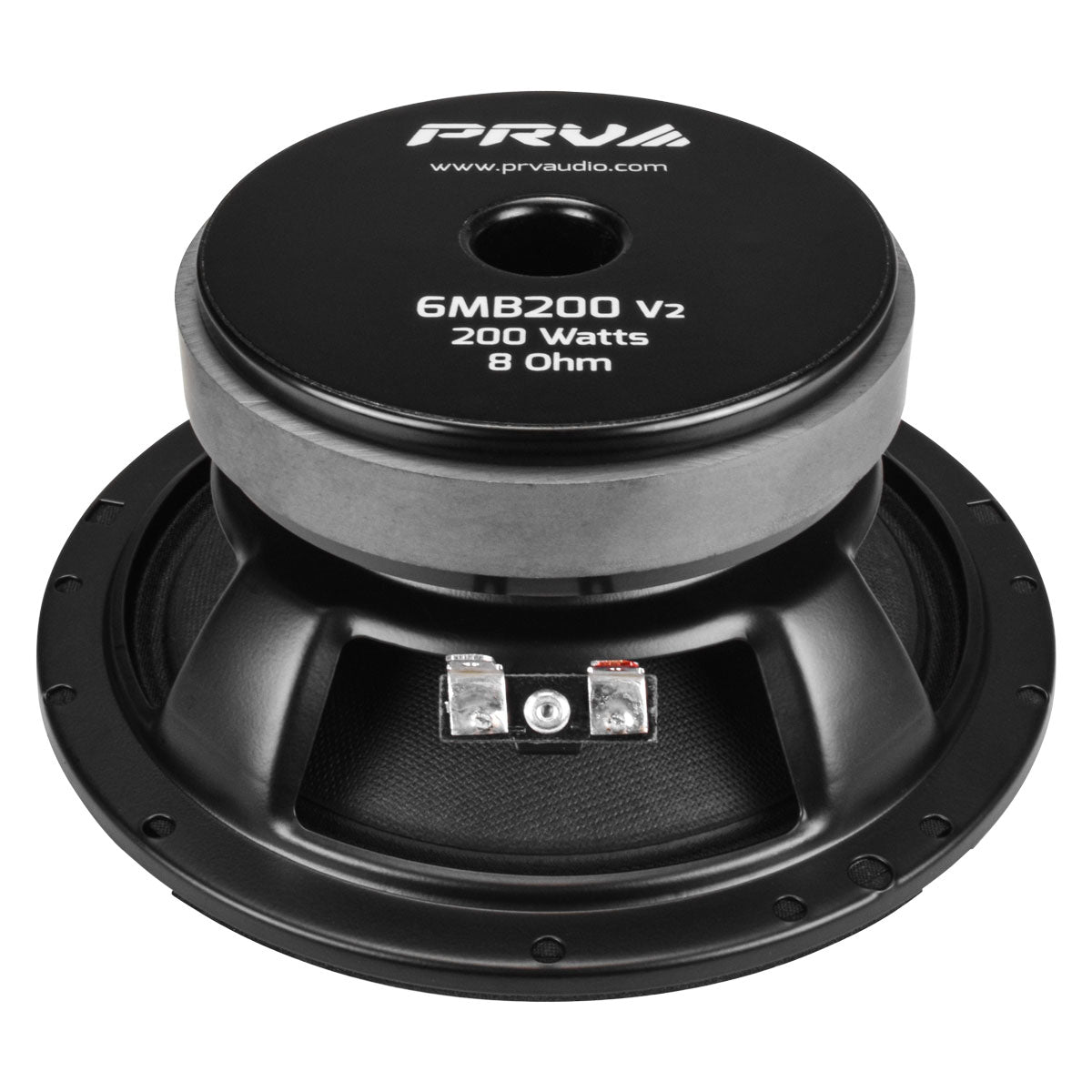

The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment.

Its light weight of only 3.3 Lbs helps to keep your enclosure light, making it perfect for portable audio applications.

PRV Audio 6.5” PRO Audio Midbass 6MB200 Loudspeaker 200 Watts 8 Ohm – Professional Woofer

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

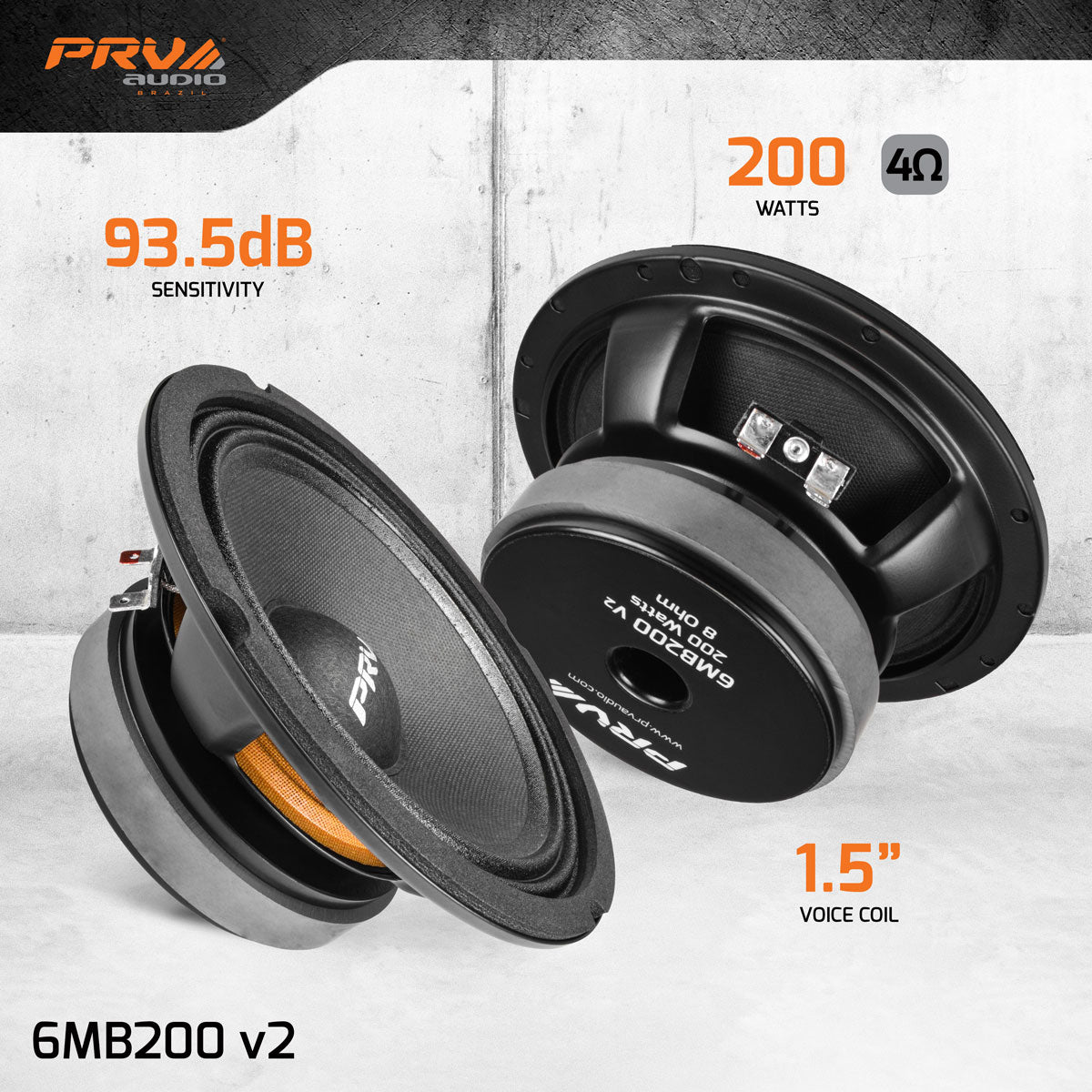

  • Nominal Diameter 6″ (152 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 100 Watts
  • Continuous Program Power (RMS)** 200 Watts
  • Max Peak Power*** 400 Watts
  • Sensitivity 2.83V at 1m93.5 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 125 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 125 – 6,500 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth12.5 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.8 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 4.13 l
  • Excursion (mathematical)**
    • Xmax
    • 4.80 mm
  • Free Air Resonance
    • Fs
    • 123.28 Hz
  • Mechanical Factor
    • Qms
    • 20.81
  • Electrical Factor
    • Qes
    • 1.20
  • Total Factor
    • Qts
    • 1.13
  • Cone Area
    • Sd
    • 154 cm²
  • Mechanical Mass
    • Mms
    • 11.57 g
  • BI Factor
    • Bl
    • 7.05 Tm
  • Dc Resistance
    • Re
    • 6.7 Ohm
  • Inductance
    • Le
    • 0.25 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 10.55 g
  • Mechanical Compliance
    • Cms
    • 0.144 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6MB200 v2 Midbass DATASHEET Download

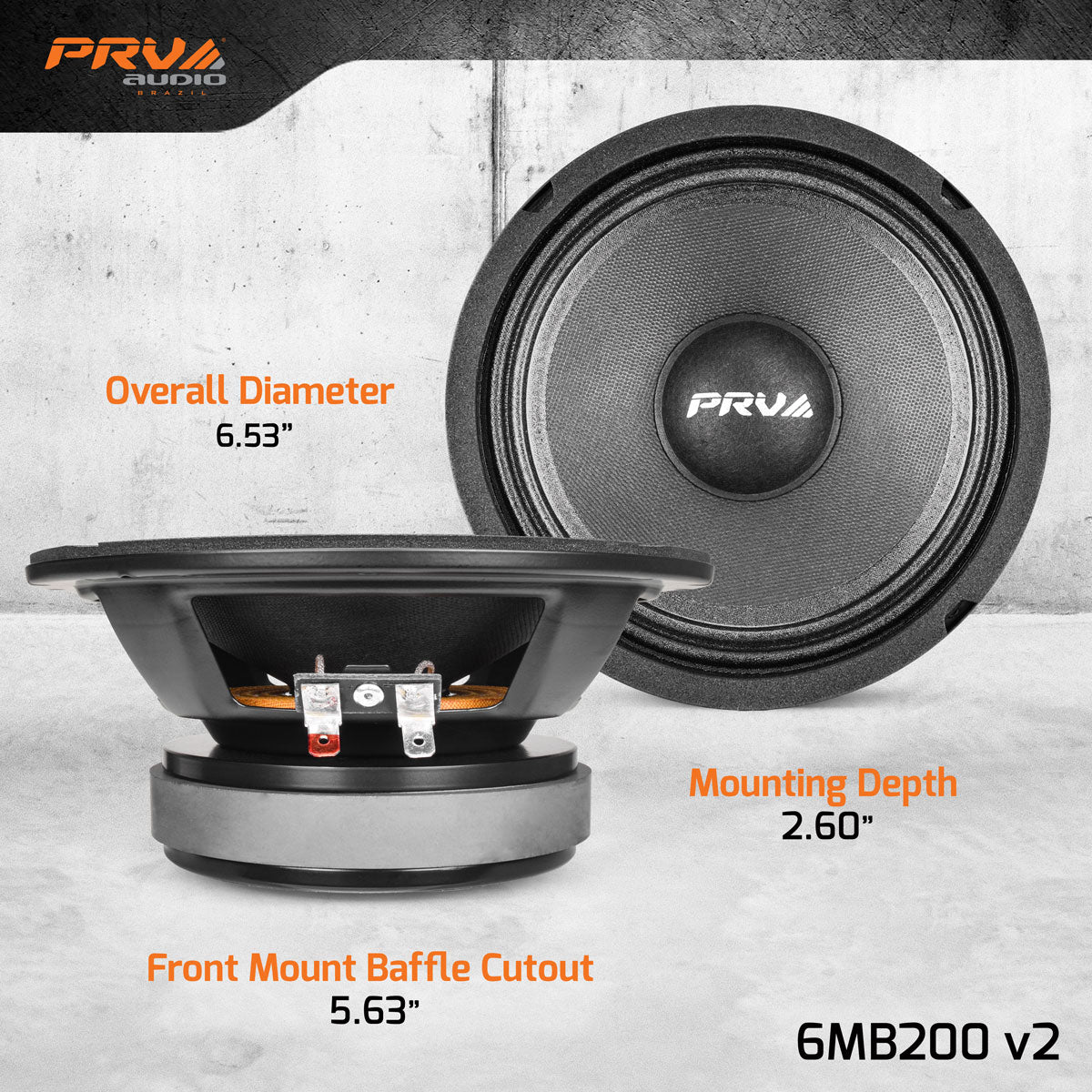

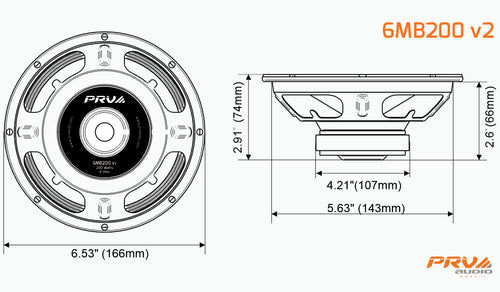

  • Overall Depth 2.91” (74 mm)
  • Overall Diameter 6.53” (166 mm)
  • Front Mount Baffle Cutout 5.63” (143 mm)
  • Net Weight 3.30 Lbs (1.50 kg)
  • Shipping Weight 3.62 Lbs (1.64 kg)
  • Carton Dimensions WxLxH 7.17” x 7.17” x 4.13” (182 x 182 x 105 mm)
