PRV 6CX380-4 SLIM Fullrange

PRV 6CX380-4 SLIM Fullrange

SKU: 6CX380-4 SLIM
New

PRV 6CX380-4 SLIM Fullrange

PRV 6CX380-4 SLIM Fullrange

SKU: 6CX380-4 SLIM

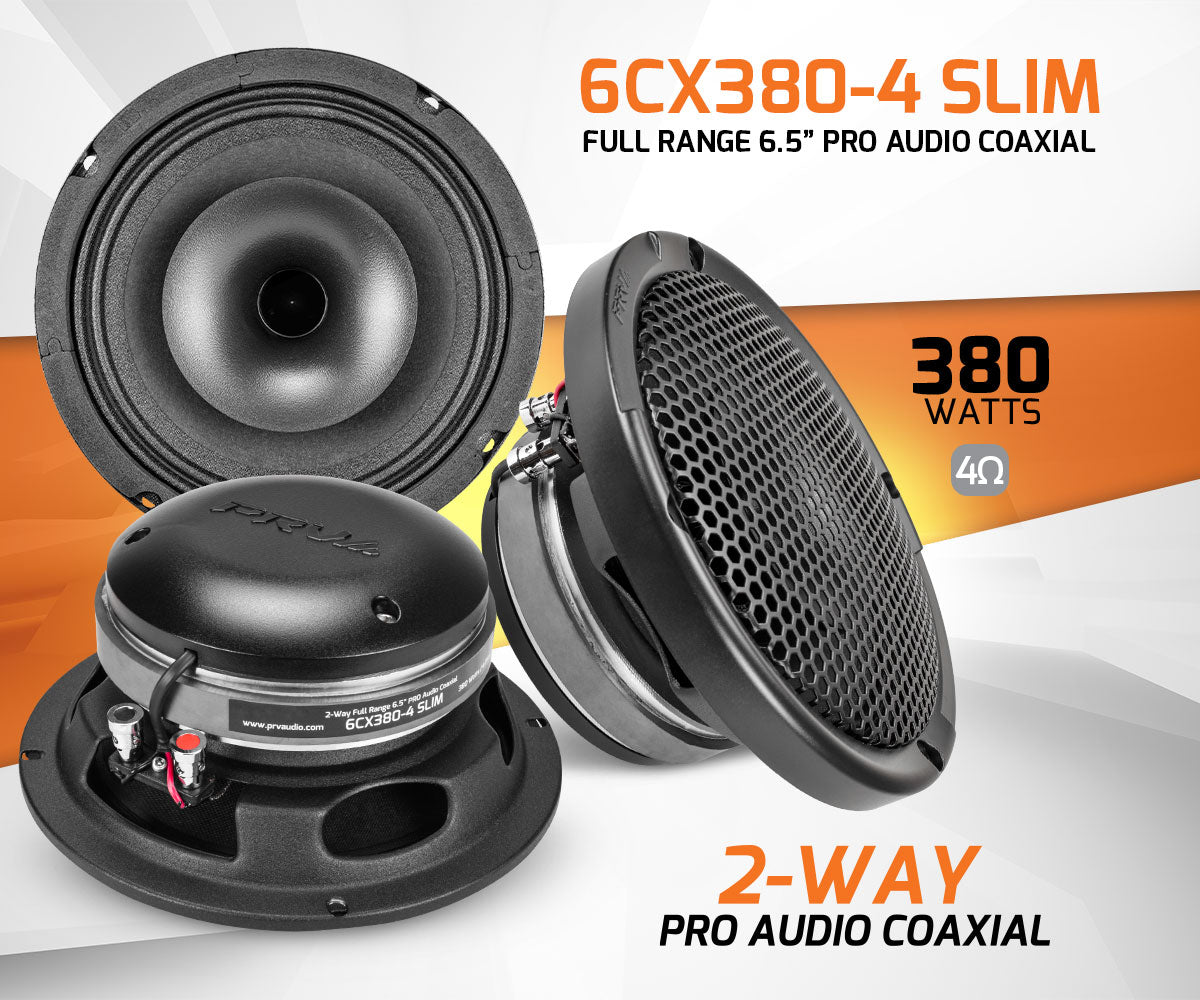

  • 6.5” Fullrange - 4 Ohm
  • 2-Way Coaxial
  • 96dB - 380 Watts
$64.91
$81.14

In stock
  • 6.5” Fullrange - 4 Ohm
  • 2-Way Coaxial
  • 96dB - 380 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The best of the pro audio and car audio worlds are combined in this
compact 6.5" speaker! The 6CX380-4 SLIM's coaxial speaker has a built-in
tweeter driver, an innovative design that delivers amazing sound
clarity.

For a countless number of applications that require high output sound in
small locations where conventional drivers wouldn't fit, we have
carefully blended a super tweeter with our PRO Audio shallow midrange
speaker in a compact package. This is the greatest 6.5" 2-way coaxial
for car audio you can find that is both small and loud.

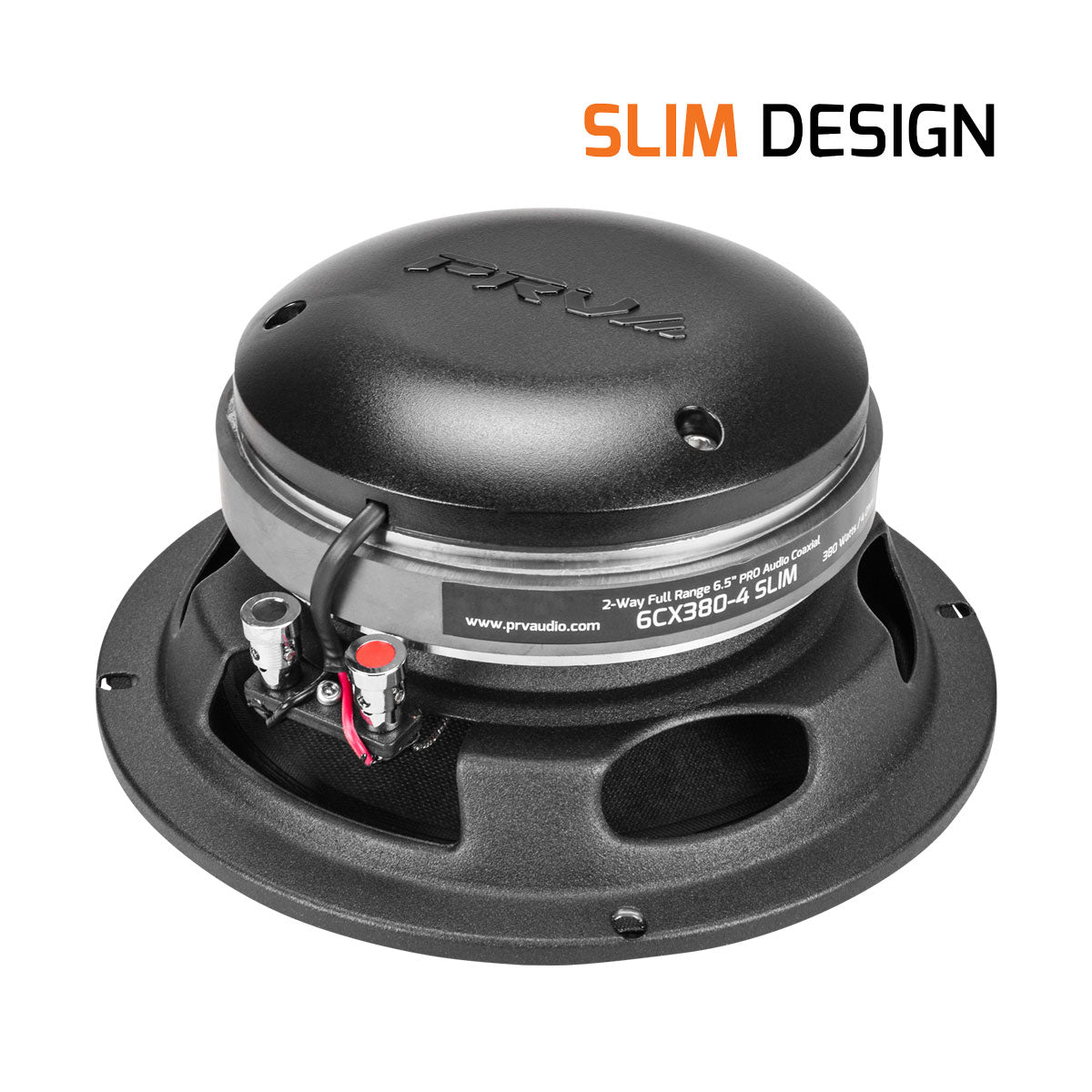

  • Slim Design – Perfect for tight space applications that require PRO
    Audio sound quality in small areas where conventional drivers wouldn't
    fit.

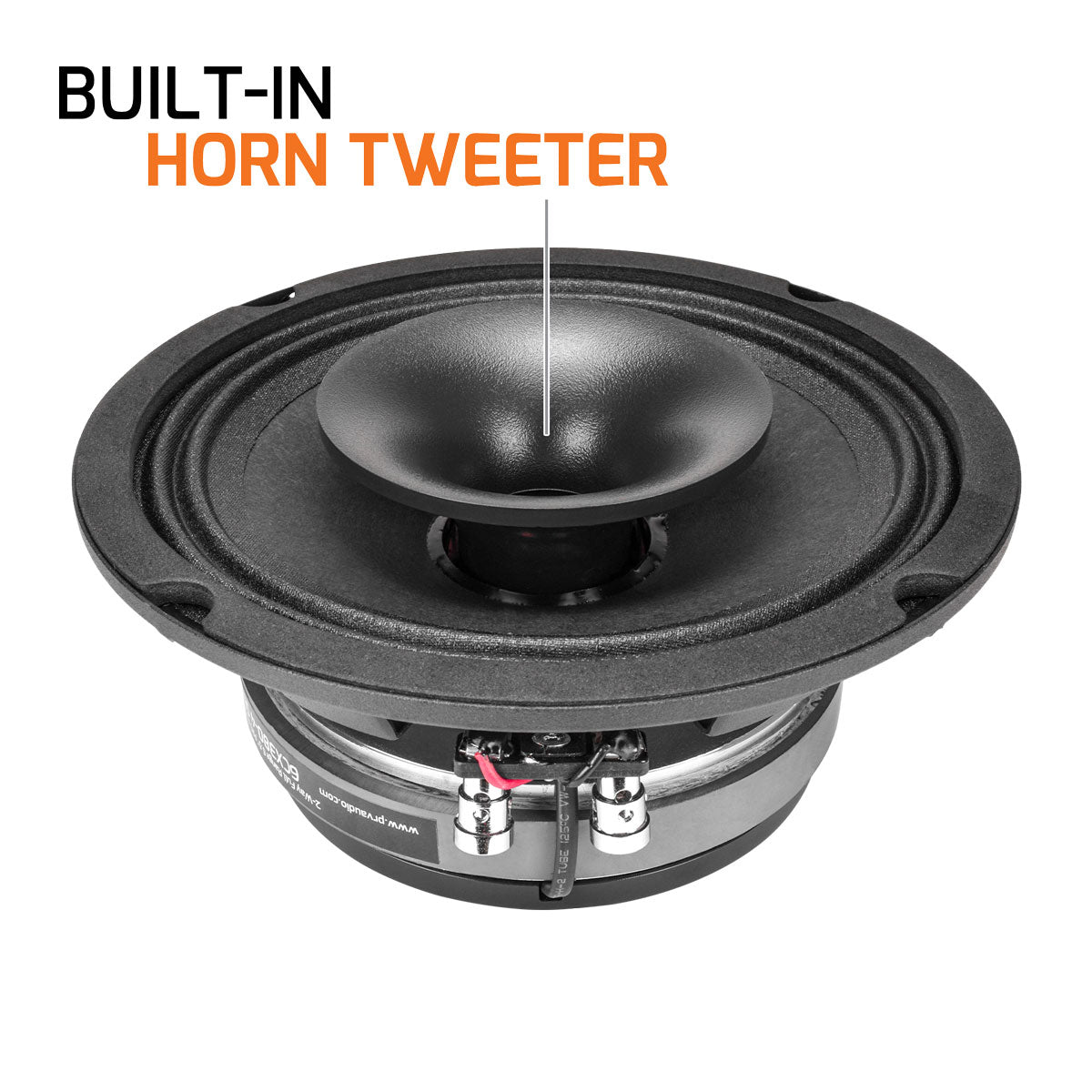

  • Built-in driver tweeter with in-line capacitor attenuates perfectly with the speaker, giving you a rich musical response.

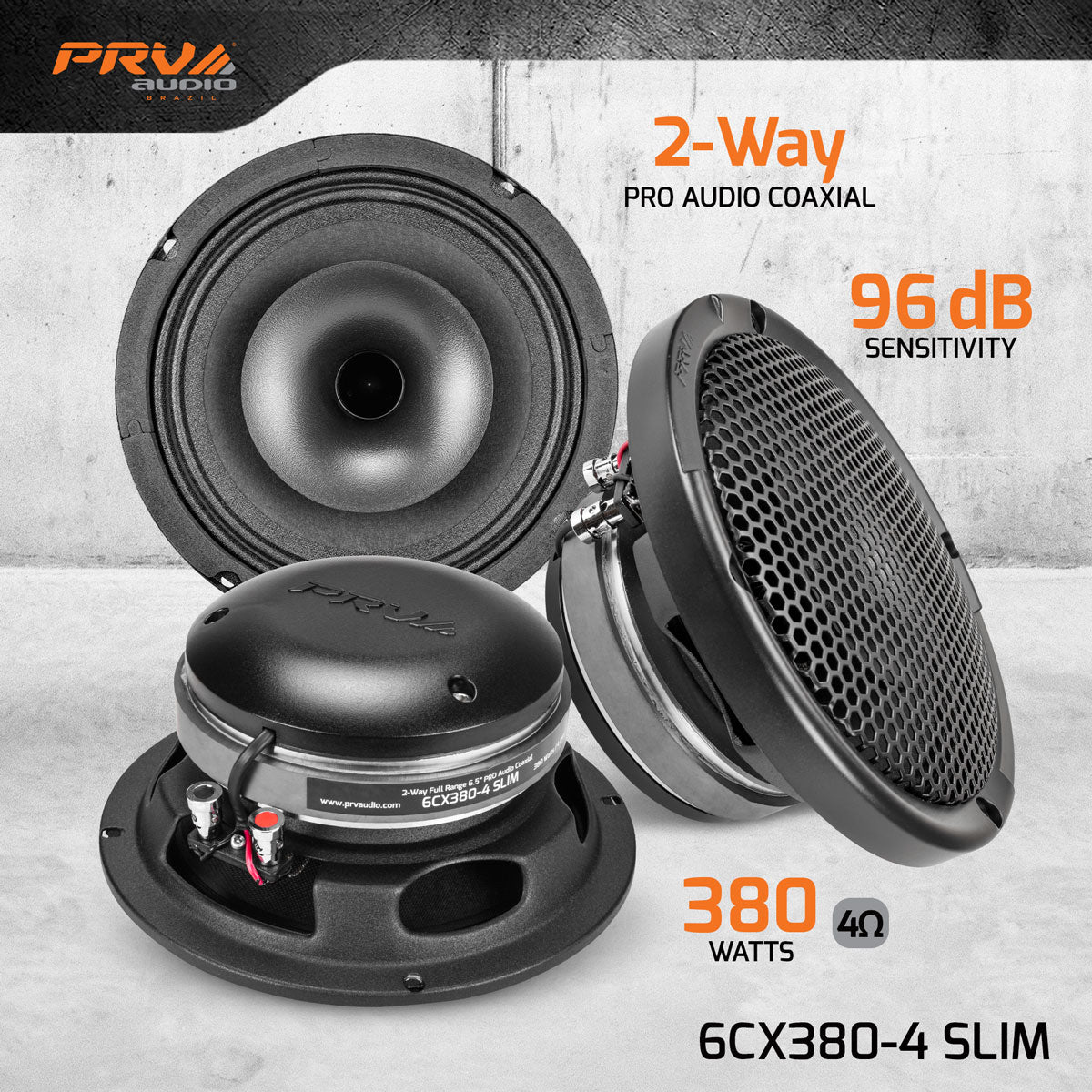

  • 380 Watts RMS Music Power Handling, with a 96 dB Sensitivity, capable of generating a lot sound with a small cone!

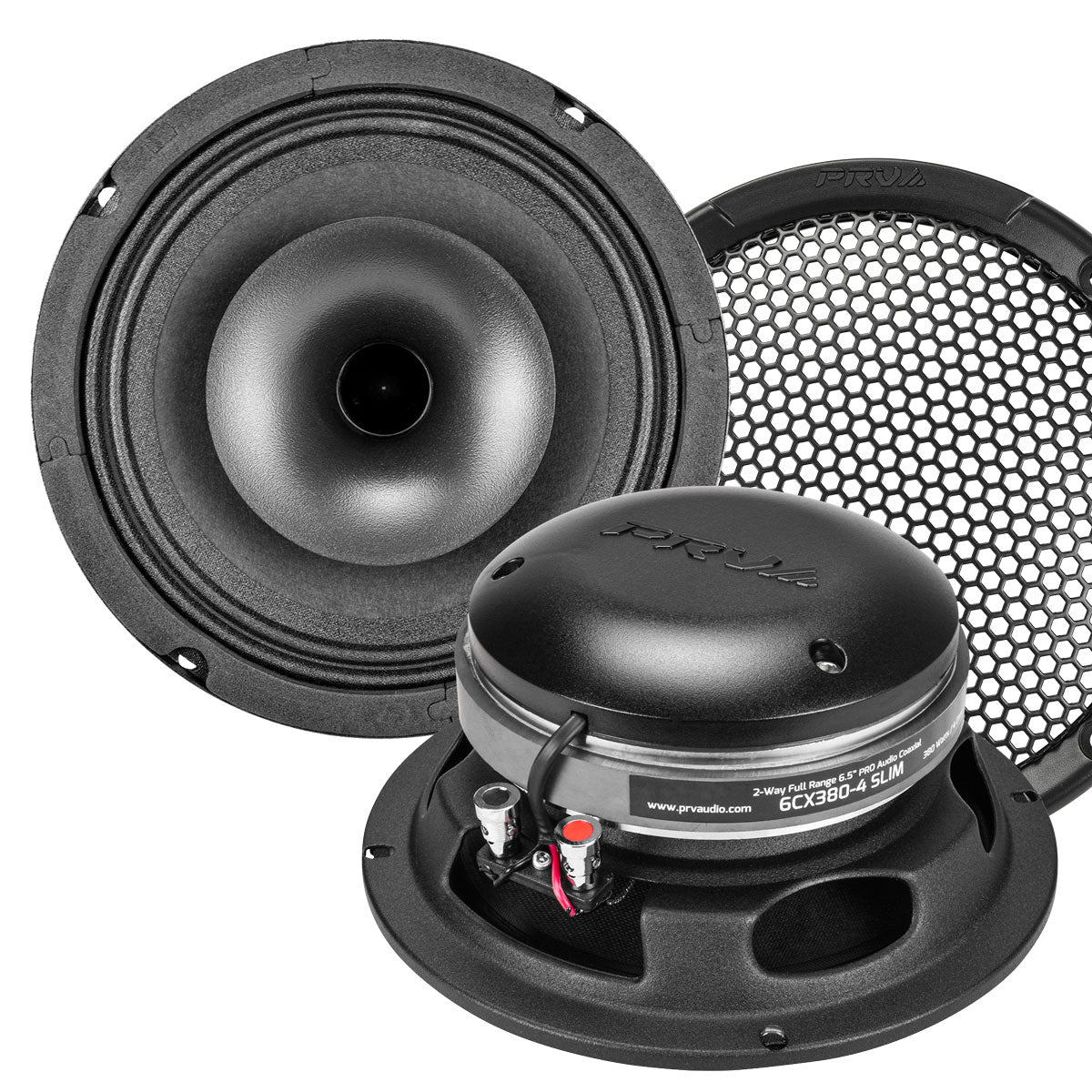

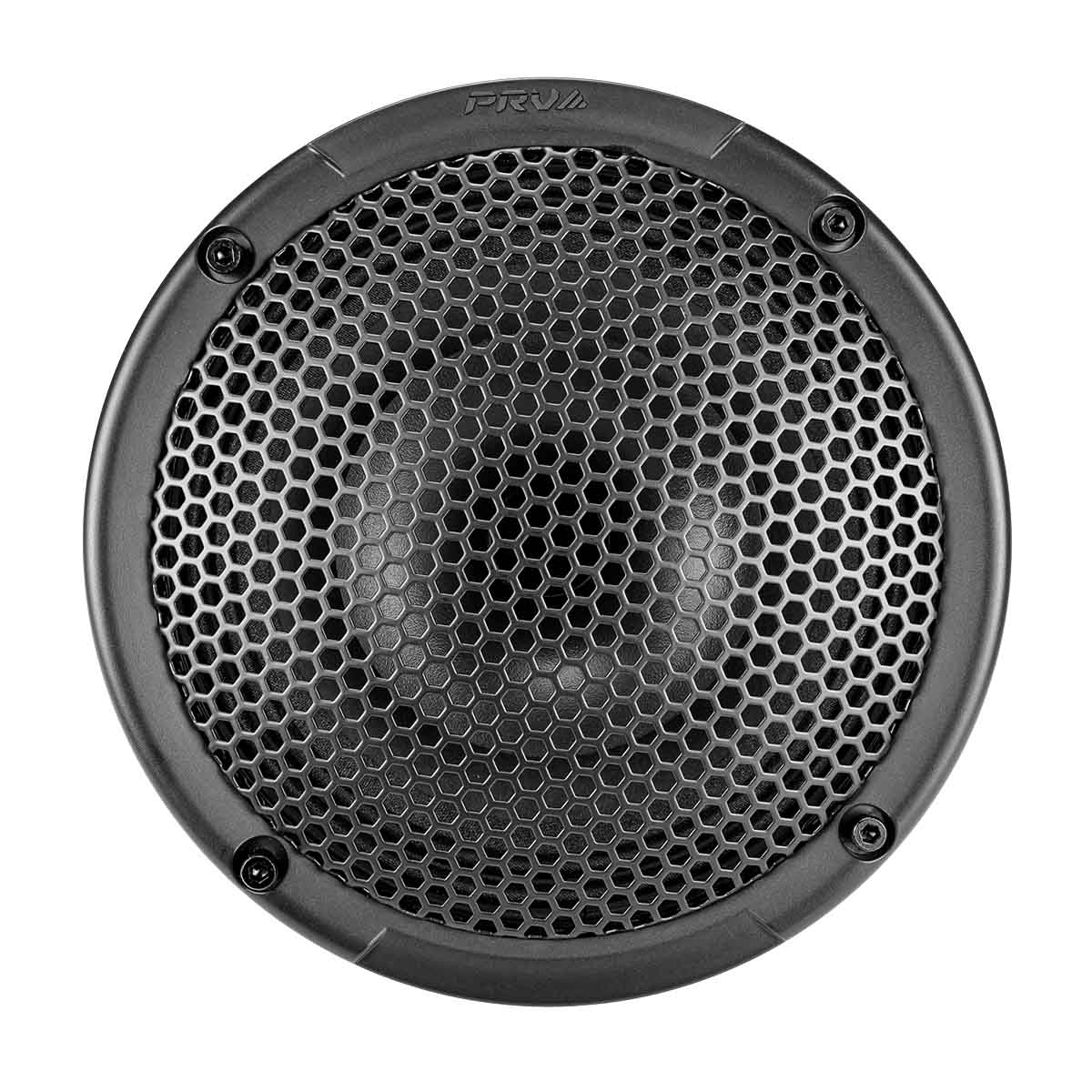

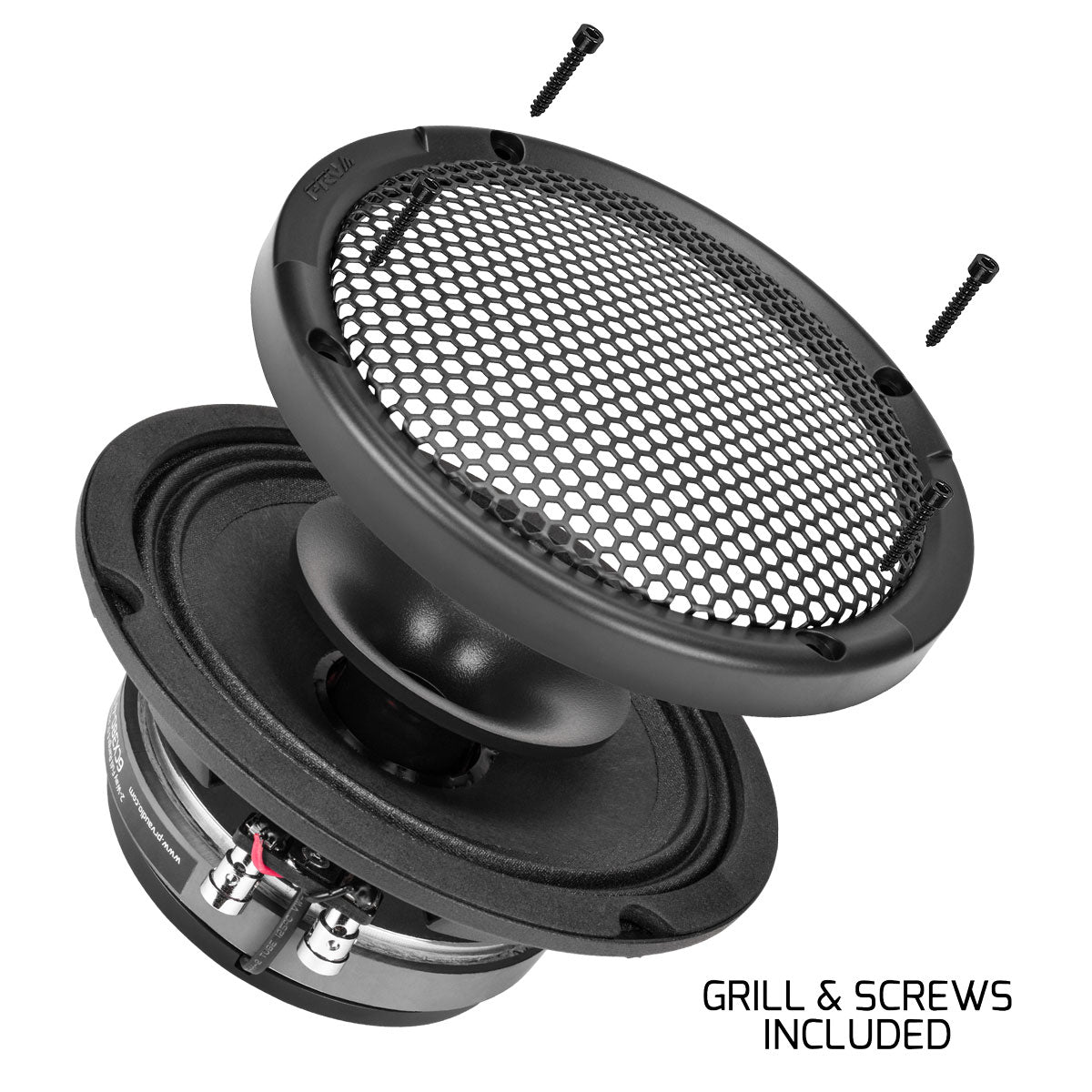

  • Grill and Mounting Screws Included
  • Also available in 8″- 8CX380-4 SLIM

By combining elements from the PRO Audio and Car Audio segments, we have
developed a new type of highly efficient coaxial that is able to give
high levels of output in compact spaces.Its slim design makes this
coaxial the perfect speaker, allowing it to be utilized in endless
ways.

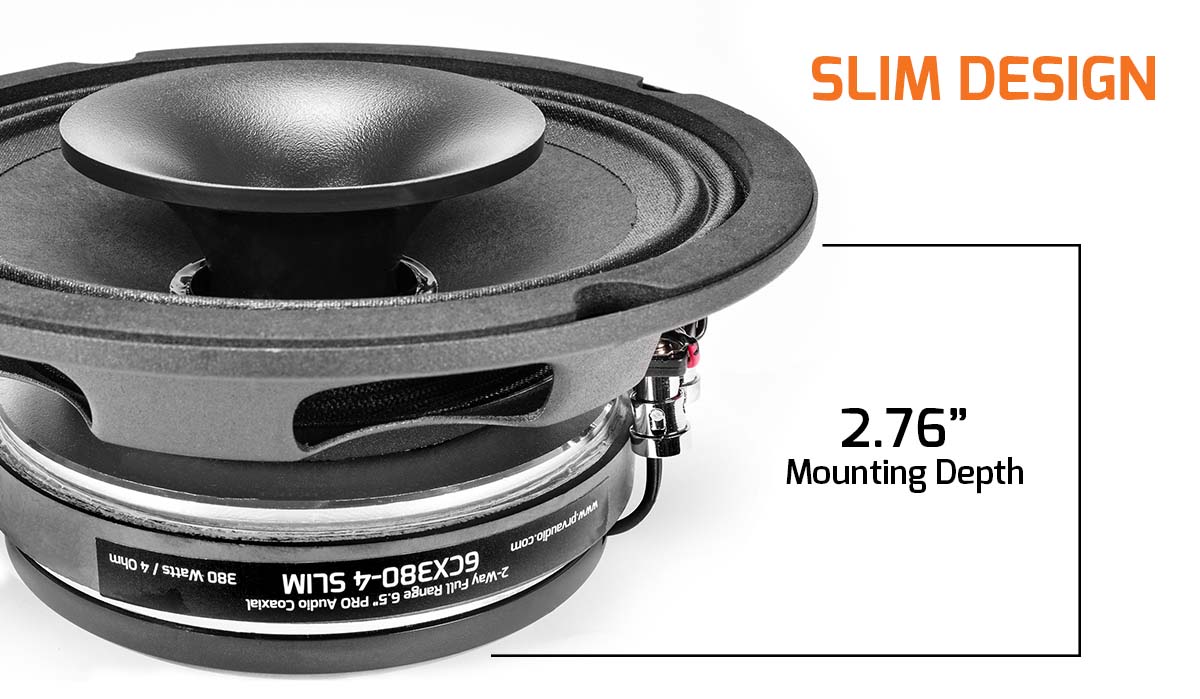

Loud and clear vocals are all within 2.76′′ of mounting depth
without sacrificing quality or performance.

Its specially composed spider reduces distortion on midbass frequencies,
and its double roll surround keeps cone travel linear, while its

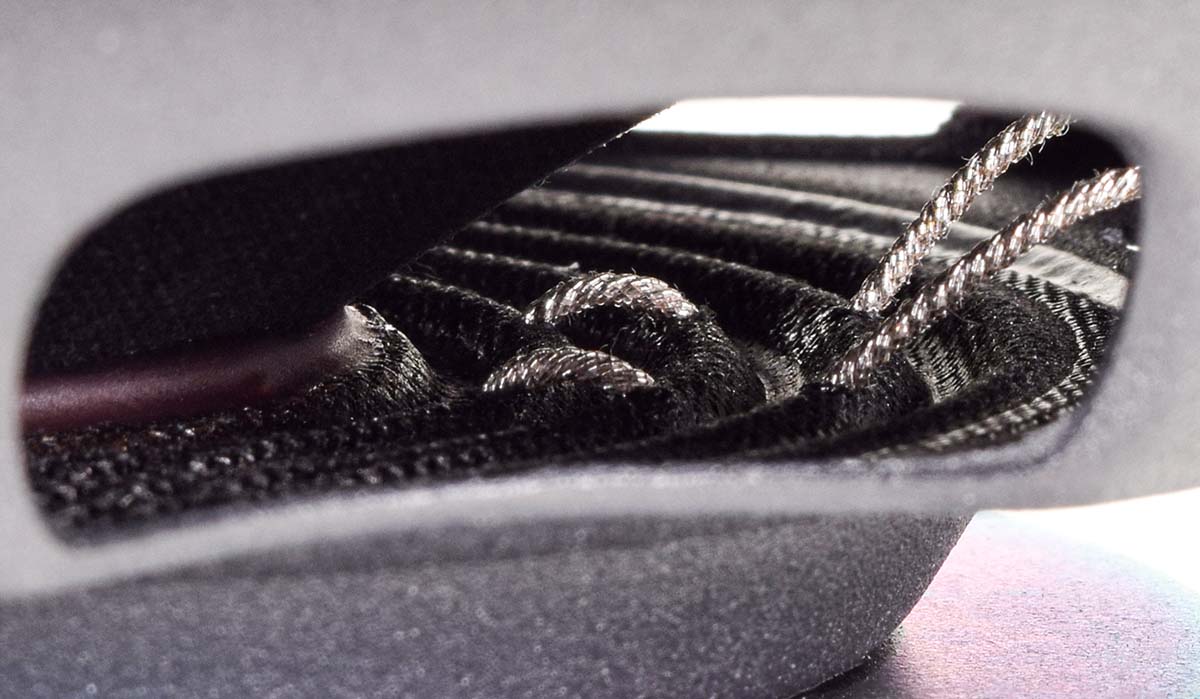

premium tinsel lead wire is capable of high temperatures.

This makes this speaker not only unique but also gives it all high-performance
characteristics and high-quality components, providing exceptional clarity, detail, and dynamic sound.

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter Low Freq. 6.5″ (152 mm)High Freq. 1″ (25.4mm)
  • Nominal Impedance 4 Ohm
  • Nominal Power Handling* 190 Watts
  • Rated AES Power Handling (RMS)** 380 Watts
  • Program Power*** 760 Watts
  • Sensitivity 2.83V at 1m 96 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 120 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 100 – 20,000Hz
  • Voice Coil Diameter 1.5″ (38mm)1.0″ (25 mm)
  • Voice Coil Wire CopperCCAW
  • Voice Coil Winding Depth 8.0 mm N/A
  • Former Material KaptonKapton
  • Magnetic Gap Depth 5.0 mmN/A
  • Frame Material S. SteelMylar
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 6.61 l
  • Excursion (mathematical)**
    • Xmax
    • 2.75 mm
  • Free Air Resonance
    • Fs
    • 111.7 Hz
  • Mechanical Factor
    • Qms
    • 8.6
  • Electrical Factor
    • Qes
    • 0.84
  • Total Factor
    • Qts
    • 0.77
  • Cone Area
    • Sd
    • 143 cm²
  • Mechanical Mass
    • Mms
    • 8.77 g
  • BI Factor
    • Bl
    • 5.11 Tm
  • Dc Resistance
    • Re
    • 3.6 Ohm
  • Inductance
    • Le
    • 0.113 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 7.80 g
  • Mechanical Compliance
    • Cms
    • 0.231 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 6CX380-4 SLIM Fullrange DATASHEET Download

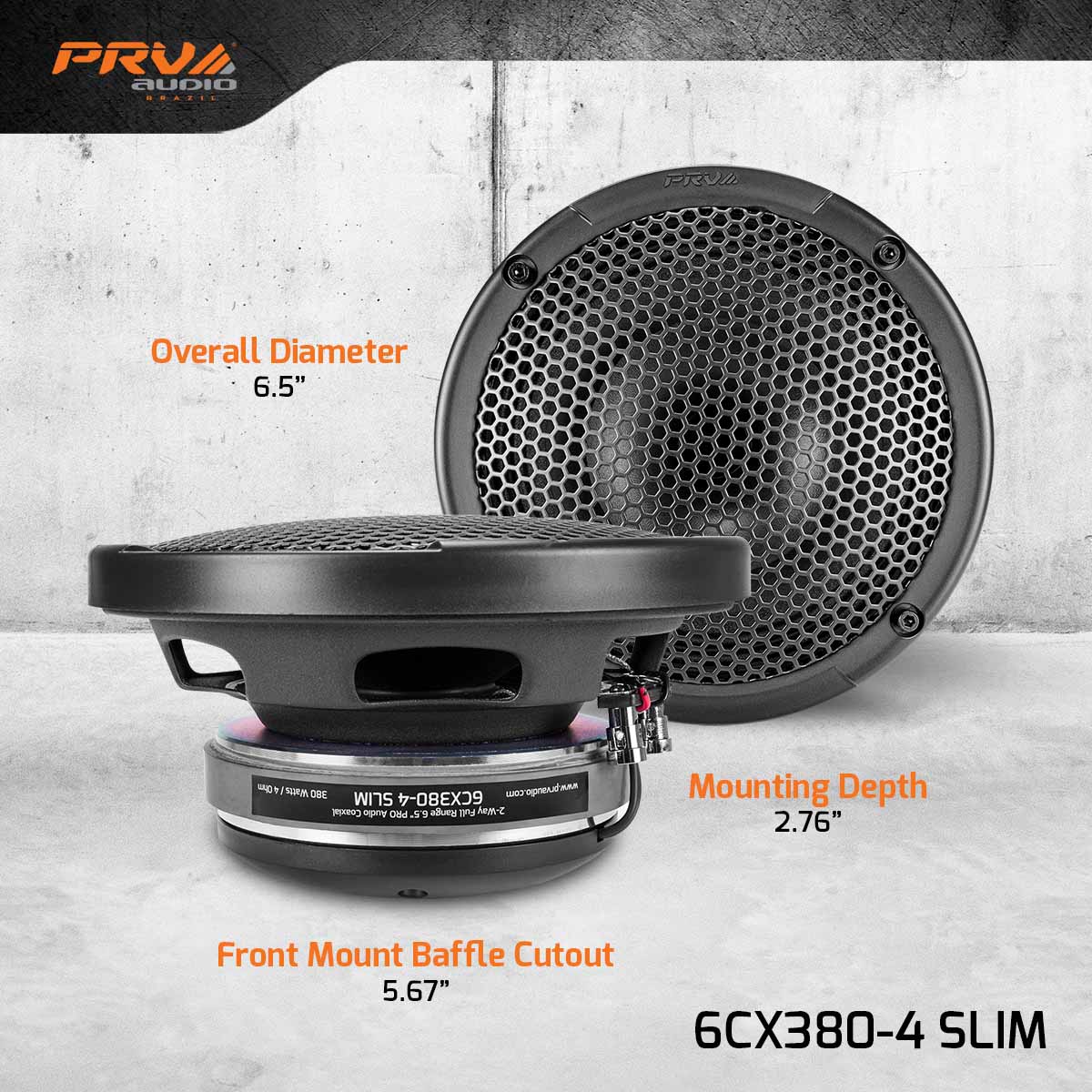

  • Overall Depth 3.86″ (98 mm)(with grill)
  • Mounting Depth 2.76″ (70 mm)
  • Overall Diameter 6.5″ (165 mm)
  • Front Mount Baffle Cutout 5.67″ (144 mm)
  • Net Weight 3.85 Lbs (1.75 kg)
  • Shipping Weight 4.30 Lbs (1.95 kg)
  • Carton Dimensions WxLxH 7.28″ x 7.48″ x 4.92″ (185 x 190 x 125 mm)
PRV 6CX380-4 SLIM Fullrange DATASHEET Download
