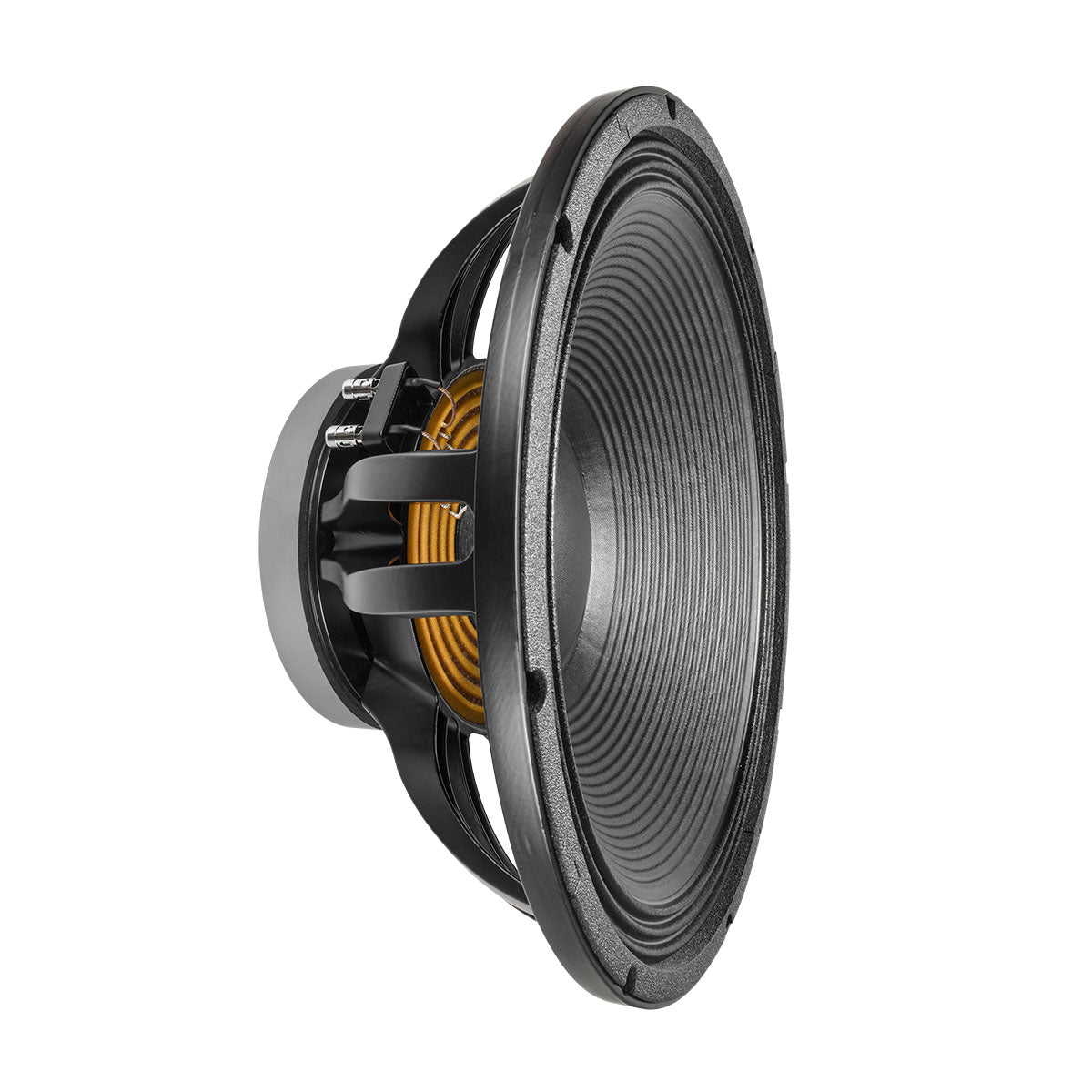

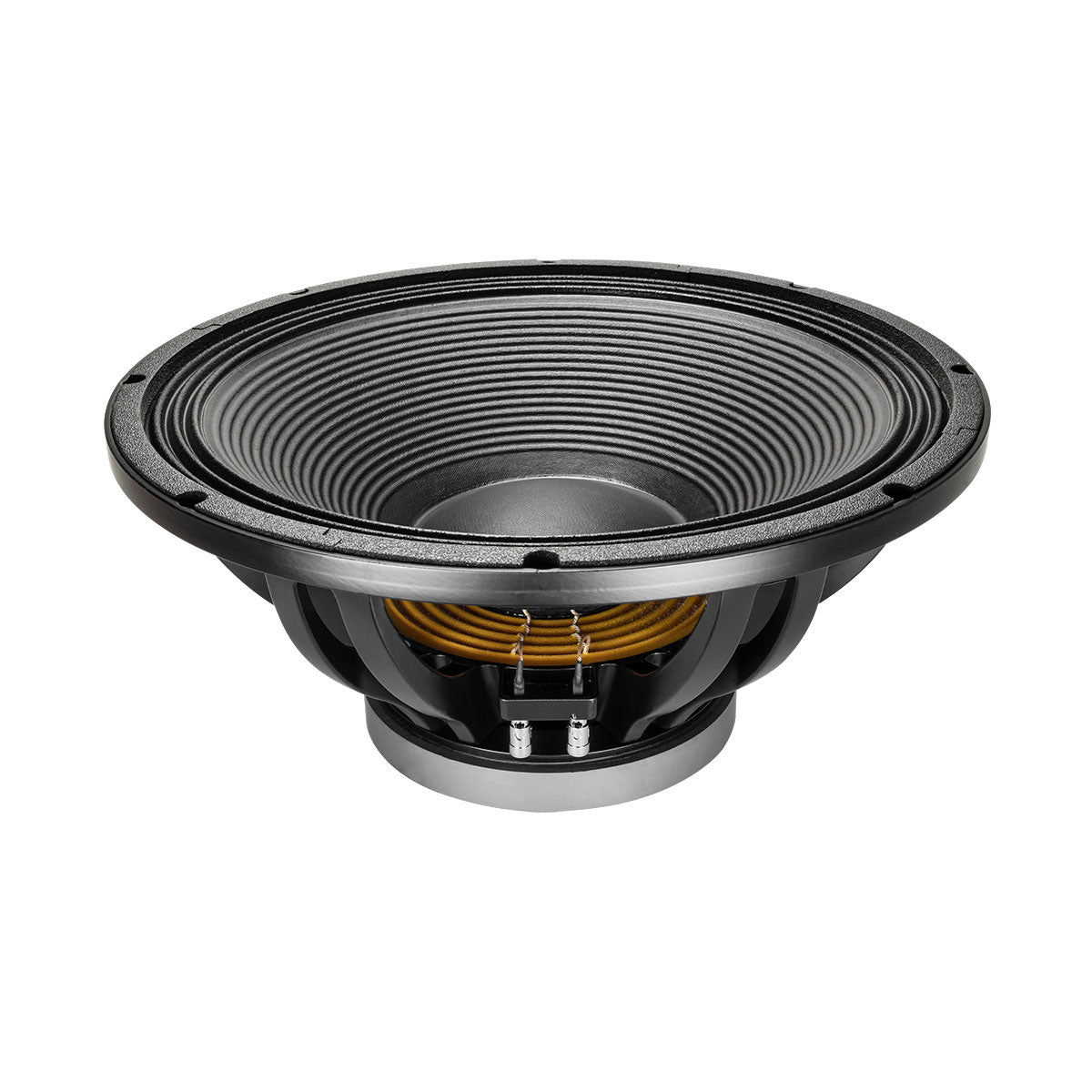

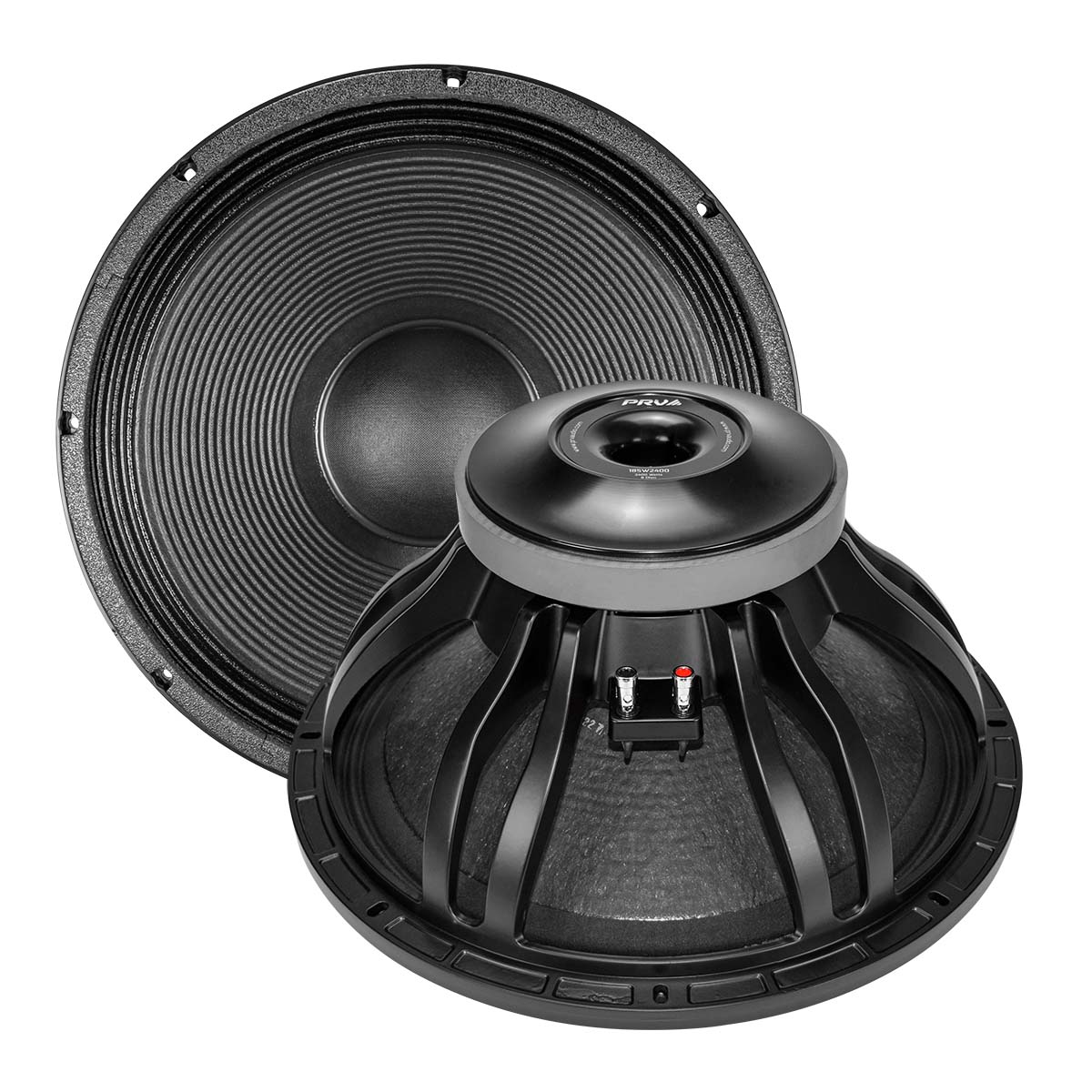

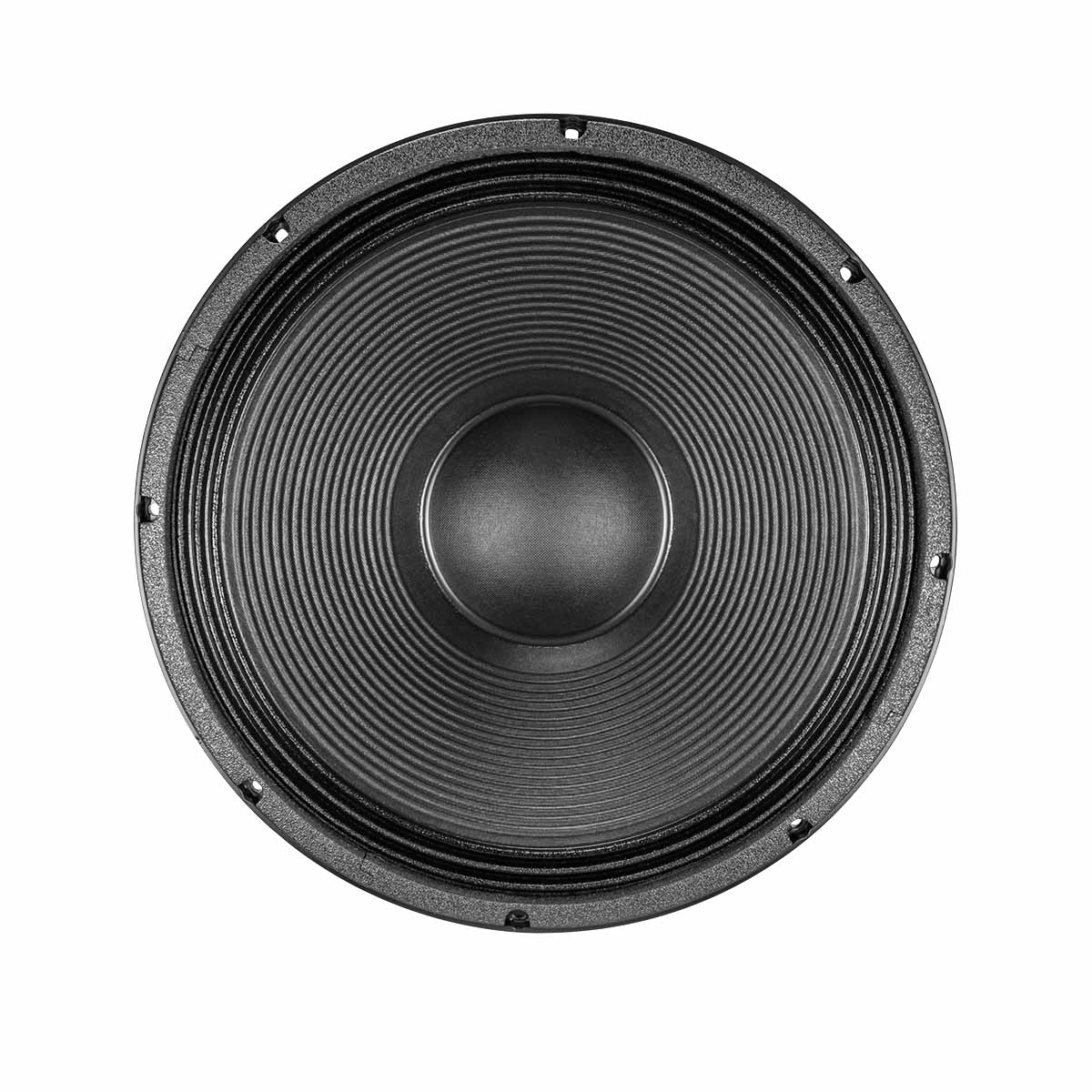

PRV 18SW2400 Subwoofer
PRV 18SW2400 Subwoofer
SKU: SKU:18SW2400
PRV 18SW2400 Subwoofer
PRV 18SW2400 Subwoofer
SKU: SKU:18SW2400

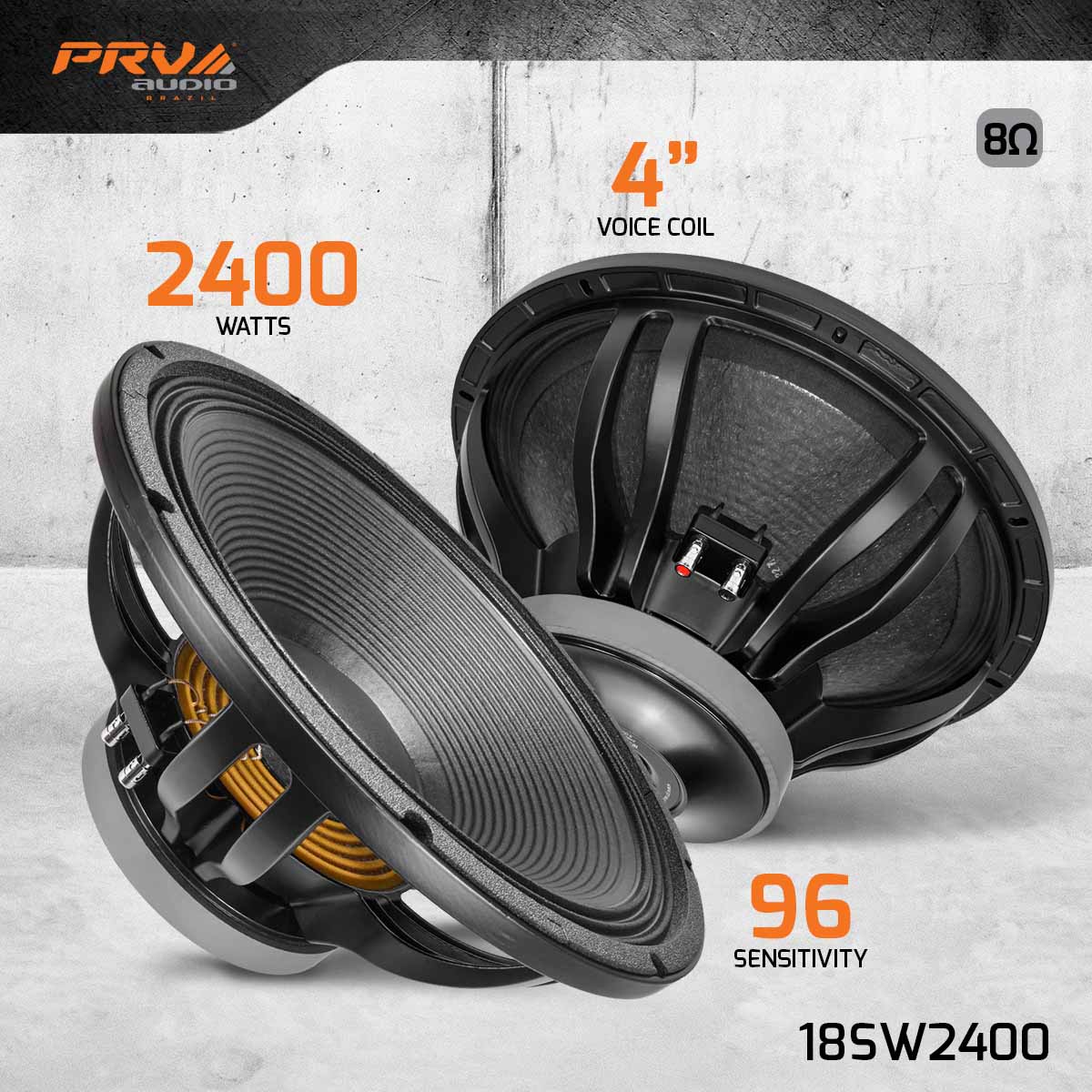

- 18" Subwoofer 8 Ohm

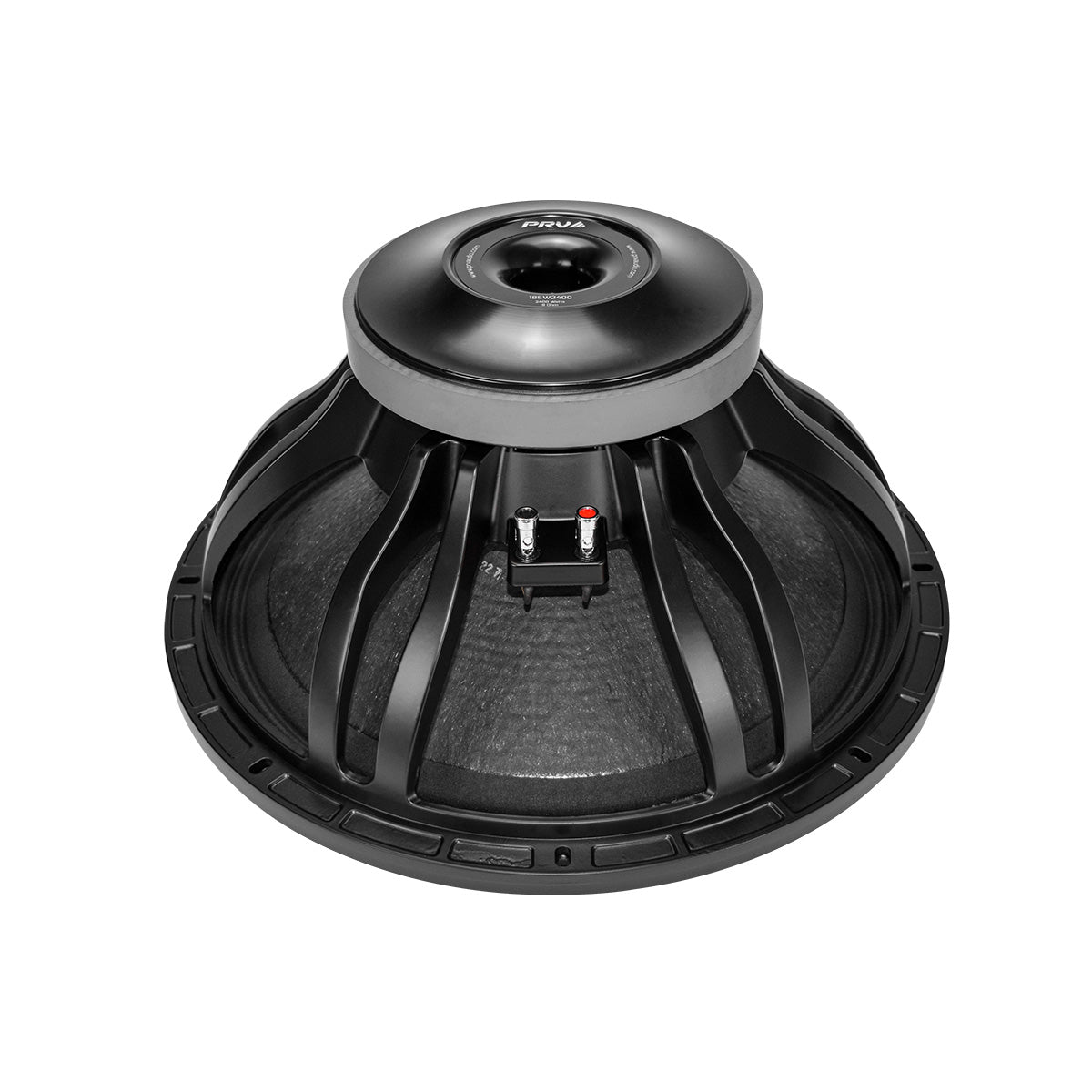

- Ferrite Magnet
- 96 dB - 2400 Watts
In stock
- 18" Subwoofer 8 Ohm
- Ferrite Magnet
- 96 dB - 2400 Watts
Free Shipping available on orders over $1,500.00 in the U.S.
Features
PRV Audio’s 18SW2400 subwoofer is designed for professional audio applications requiring high power handling and low distortion.
- 31 mm Height, 4″ voice coil handles 2400 watts Program RMS
- Over 12.5 mm of Xmax for deep bass reproduction
- High BL motor for impressive control and massive output
- For maximum power handling, there is under-spider venting
- When loaded in small boxes, it produces big sound
With its extended low-end response, great performance is realized in vented boxes as small as 7 cu. ft. This makes it ideal for applications where space is limited but powerful, deep bass is needed.
Technical Details
- Nominal Diameter 18″ (457 mm)
- Nominal Impedance 8 Ohm
- Rated AES Power Handling (RMS)** 1200 Watts
- Program Power*** 2400 Watts
- Sensitivity 2.83V at 1m96 dB
- Recommended Hi Pass Crossover" "For Full Power Handling 50 Hz 12db Per Octave Crossover
- Frequency Response at -10dB 45 – 2,200 Hz
- Voice Coil Diameter 4″ (100 mm)
- Voice Coil Wire Copper
- Voice Coil Winding Depth31.0 mm
- Former Material Glass Fiber
- Magnetic Gap Depth 12.0 mm
- Frame Material Die Cast Aluminum
- Equivalent Volume
- Vas
- 192.8 l
- Excursion (mathematical)**
- Xmax
- 12.5 mm
- Free Air Resonance
- Fs
- 36.3 Hz
- Mechanical Factor
- Qms
- 15.57
- Electrical Factor
- Qes
- 0.58
- Total Factor
- Qts
- 0.56
- Cone Area
- Sd
- 1290 cm²
- Mechanical Mass
- Mms
- 231.2 g
- BI Factor
- Bl
- 22.5 Tm
- Dc Resistance
- Re
- 5.6 Ohm
- Inductance
- Le
- 1.54 mH at 1 kHz
- Mechanical Mass Without Air
- Mmd
- 205 g
- Mechanical Compliance
- Cms
- 0.083 mm/N

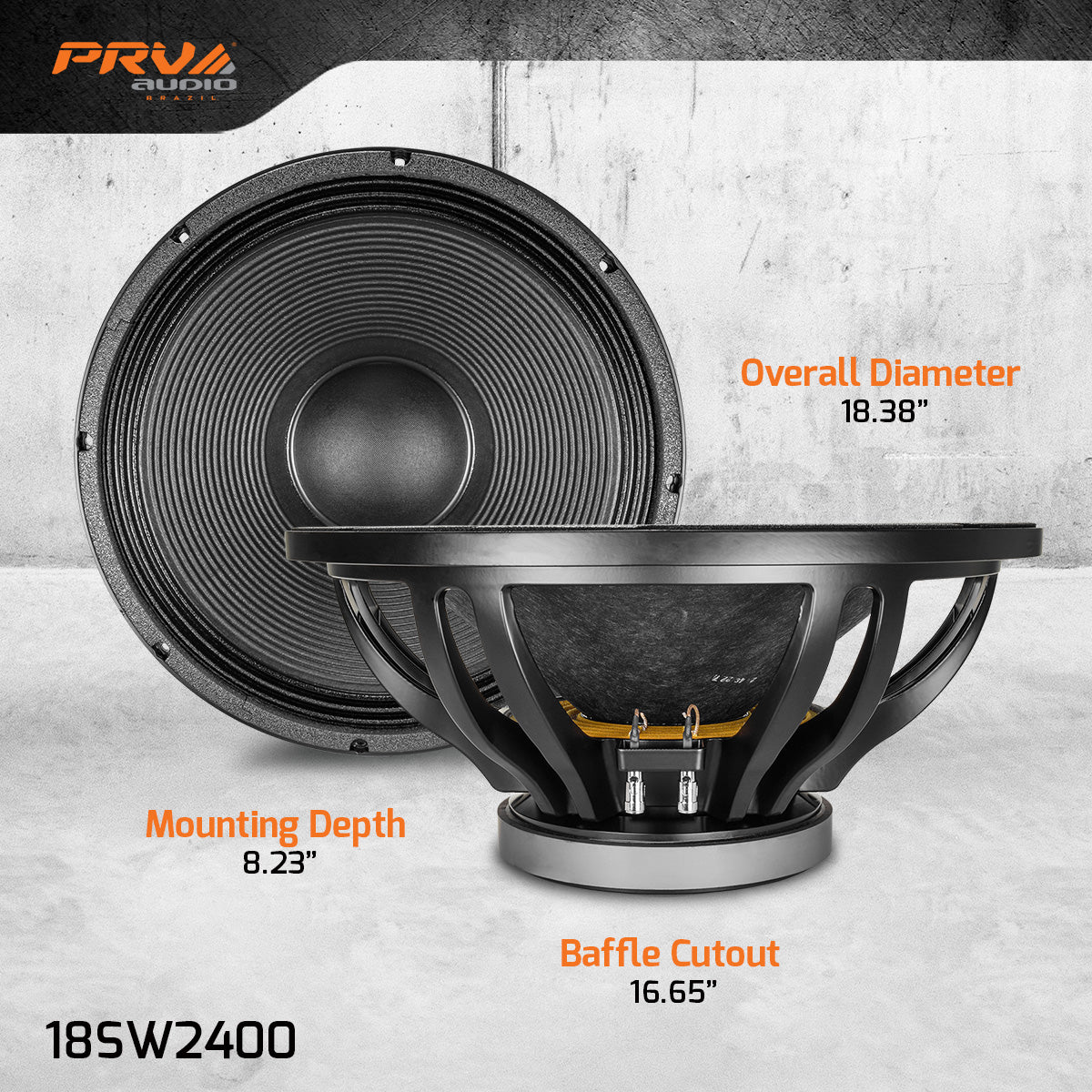

- Overall Depth 9.0” (228.6 mm)
- Mounting Depth 8.23″ (209 mm)
- Overall Diameter 18.38″ (467 mm)
- Front Mount Baffle Cutout 16.65” (423 mm)
- Net Weight 28.0 Lb (12.7 kg)
- Shipping Weight 31.75 Lb (14.4 kg)

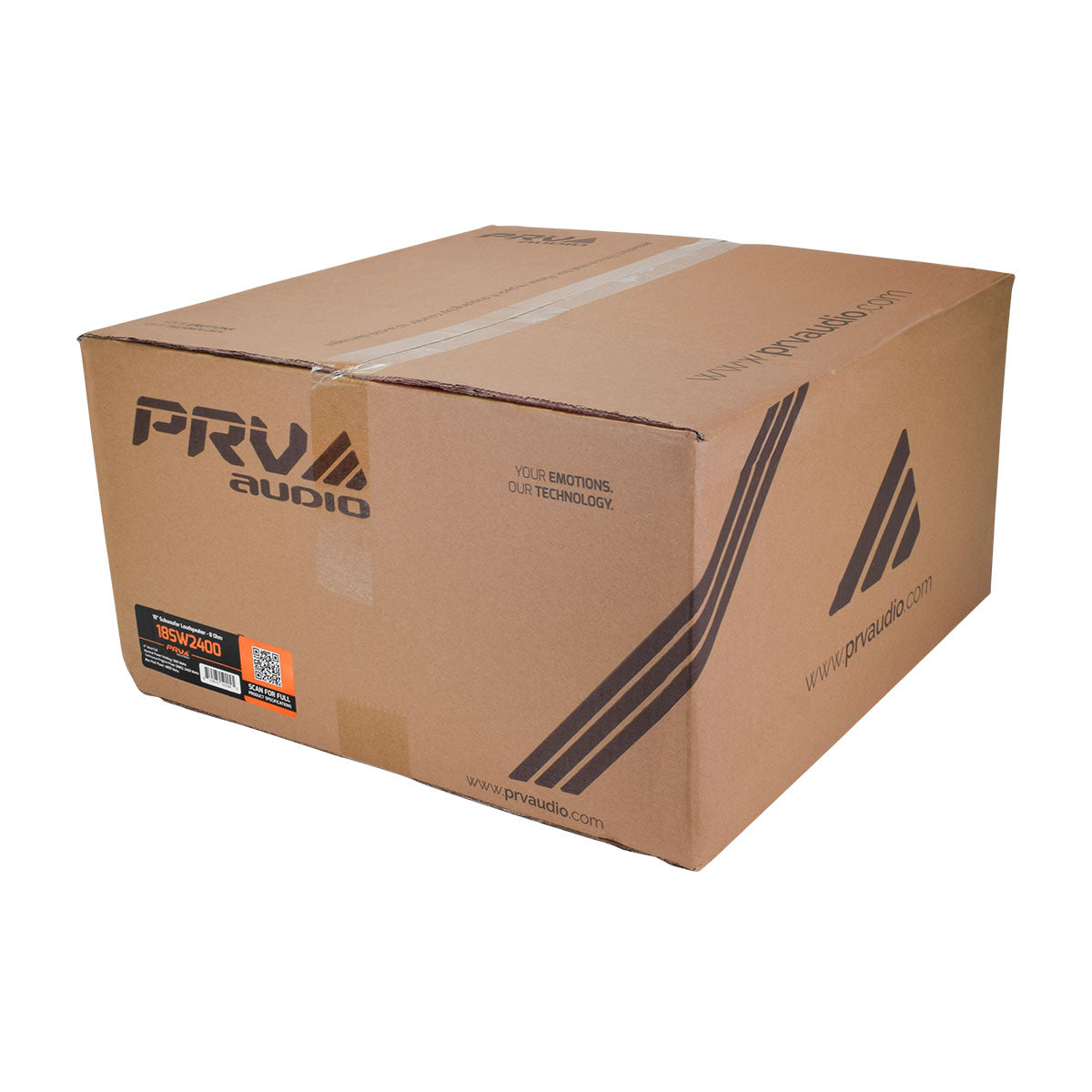

- Carton Dimensions WxLxH 19.5″ x 19.5″ x 10.6″ (495 x 495 x 270 mm)
WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.
Repair Parts
-
Rubber Cement Speaker Glue
BLACK CEMENT GLUE
Price:Regular price $19.99Regular priceUnit price / perOut of Stock -

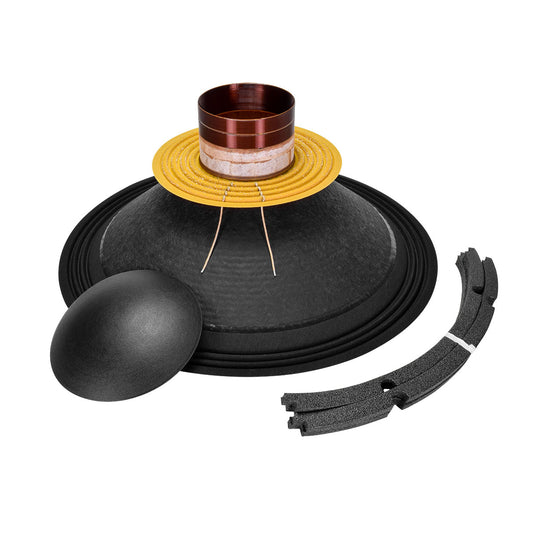

PRV RK18SW2400
