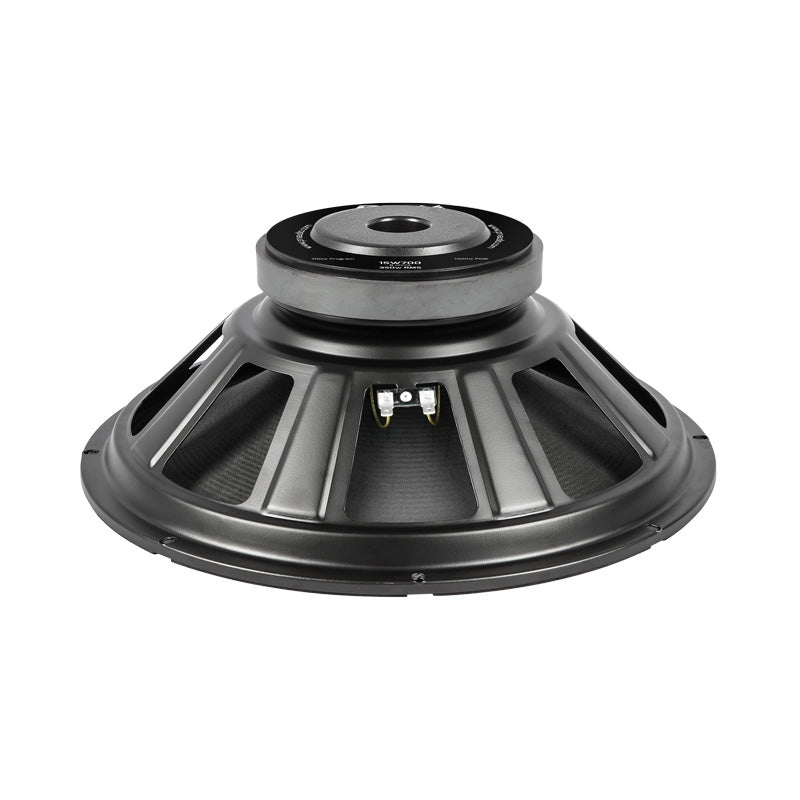

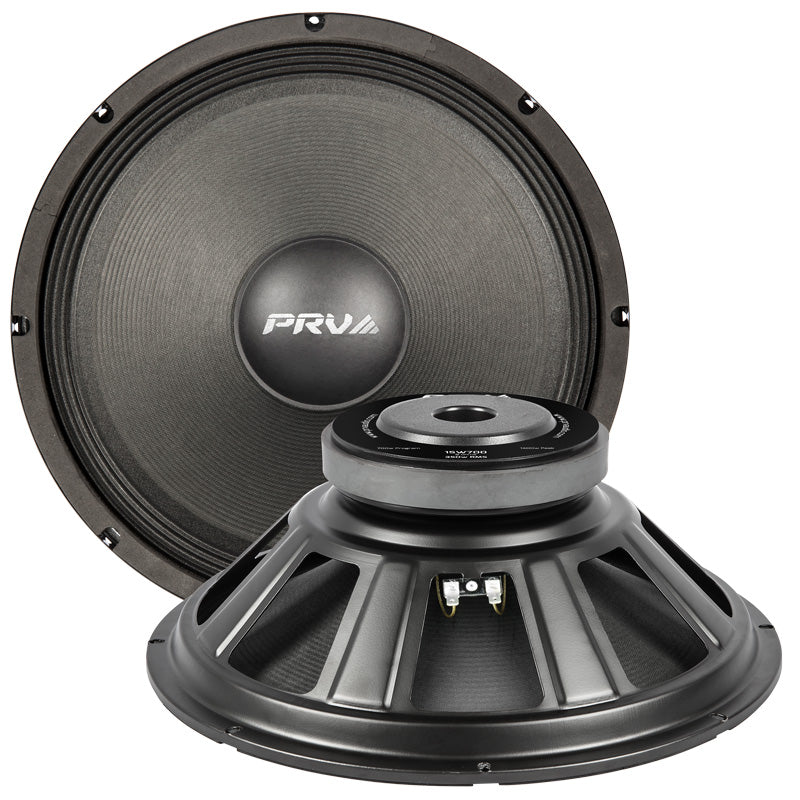

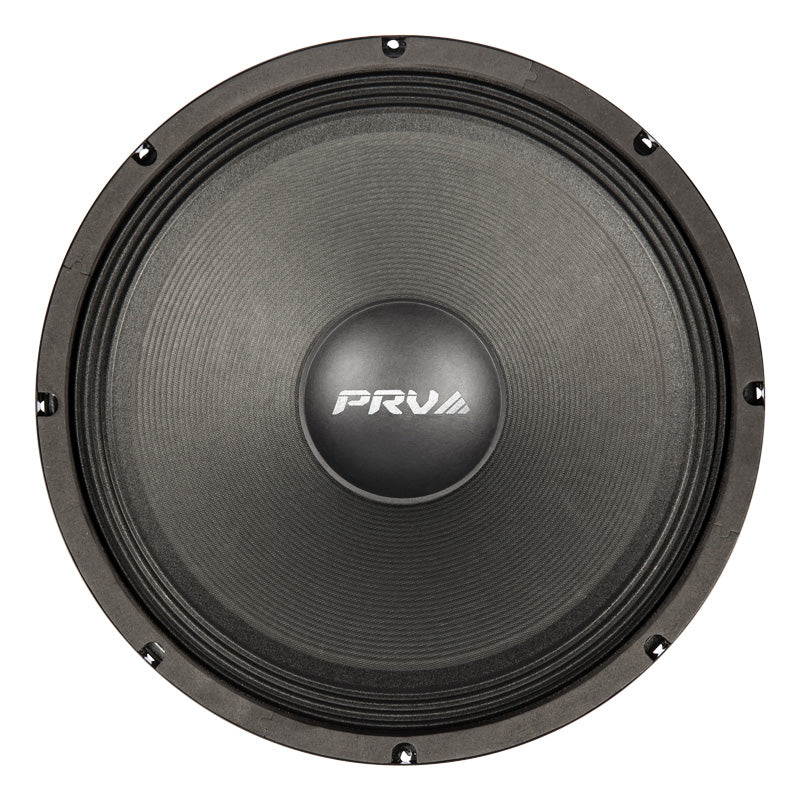

PRV 15W700 Woofer

PRV 15W700 Woofer

SKU: 15W700

PRV 15W700 Woofer

PRV 15W700 Woofer

SKU: 15W700

  • 15″ Woofer – 8 Ohm
  • Ferrite Magnet
  • 95 dB – 700 Watts
$79.91
$99.89

In stock
  • 15″ Woofer – 8 Ohm
  • Ferrite Magnet
  • 95 dB – 700 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The 15W700 15″ PRV Audio pro audio Woofer is a perfect drop in replacement for many full range loudspeaker applications and offers a smooth response from as low as 38hz and packs some punch in the mid bass range through 3,000 hz.

The 3” voice coil and suspension, ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling. If you are looking for an affordable drop-in replacement for your full range pro sound cabinets, try the 15W700. It’s the best-selling woofer at PRV Audio for a reason!

  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 350 Watts
  • Program Power: 700 Watts
  • Sensitivity (1W/1m): 95 dB
  • Voice Coil Diameter: 3″

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 15″ (381 mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 350 Watts
  • Program Power*** 700 Watts
  • Sensitivity 2.83V at 1m95 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 80 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 35 – 3,500 Hz
  • Voice Coil Diameter 3″ (76 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth16.5 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.5 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 308.1 l
  • Excursion (mathematical)**
    • Xmax
    • 6.87 mm
  • Free Air Resonance
    • Fs
    • 31.69 Hz
  • Mechanical Factor
    • Qms
    • 16.27
  • Electrical Factor
    • Qes
    • 0.65
  • Total Factor
    • Qts
    • 0.62
  • Cone Area
    • Sd
    • 935 cm²
  • Mechanical Mass
    • Mms
    • 99.87 g
  • BI Factor
    • Bl
    • 13.97 Tm
  • Dc Resistance
    • Re
    • 6.4 Ohm
  • Inductance
    • Le
    • 1.33 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 83.70 g
  • Mechanical Compliance
    • Cms
    • 0.252 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 15W700 Woofer DATASHEET Download
  • Overall Depth 5.79” (147 mm)
  • Mounting Depth 5.51” (140 mm)
  • Overall Diameter 15.16” (385 mm)
  • Front Mount Baffle Cutout 14.13” (359 mm)
  • Net Weight 11.17 Lbs (5.07 kg)
  • Shipping Weight 12.73 Lbs (5.77 kg)
  • Carton Dimensions WxLxH 16.06” x 16.06” x 6.89” (408 x 408 x 175 mm)
PRV 15W700 Woofer DATASHEET Download
