PRV 12MB2000FT-NDY Midbass

PRV 12MB2000FT-NDY Midbass

SKU: 12MB2000FT-NDY
New

PRV 12MB2000FT-NDY Midbass

PRV 12MB2000FT-NDY Midbass

SKU: 12MB2000FT-NDY

  • 12” Midbass – 8 Ohm
  • Neodymium Magnet
  • 99.5 dB – 2000 Watts
$349.91
$419.89

In stock
  • 12” Midbass – 8 Ohm
  • Neodymium Magnet
  • 99.5 dB – 2000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The PRV 12MB2000FT-NDY was engineered for custom doors, as a lightweight/compact high performance 12″ midbass for custom door panels!

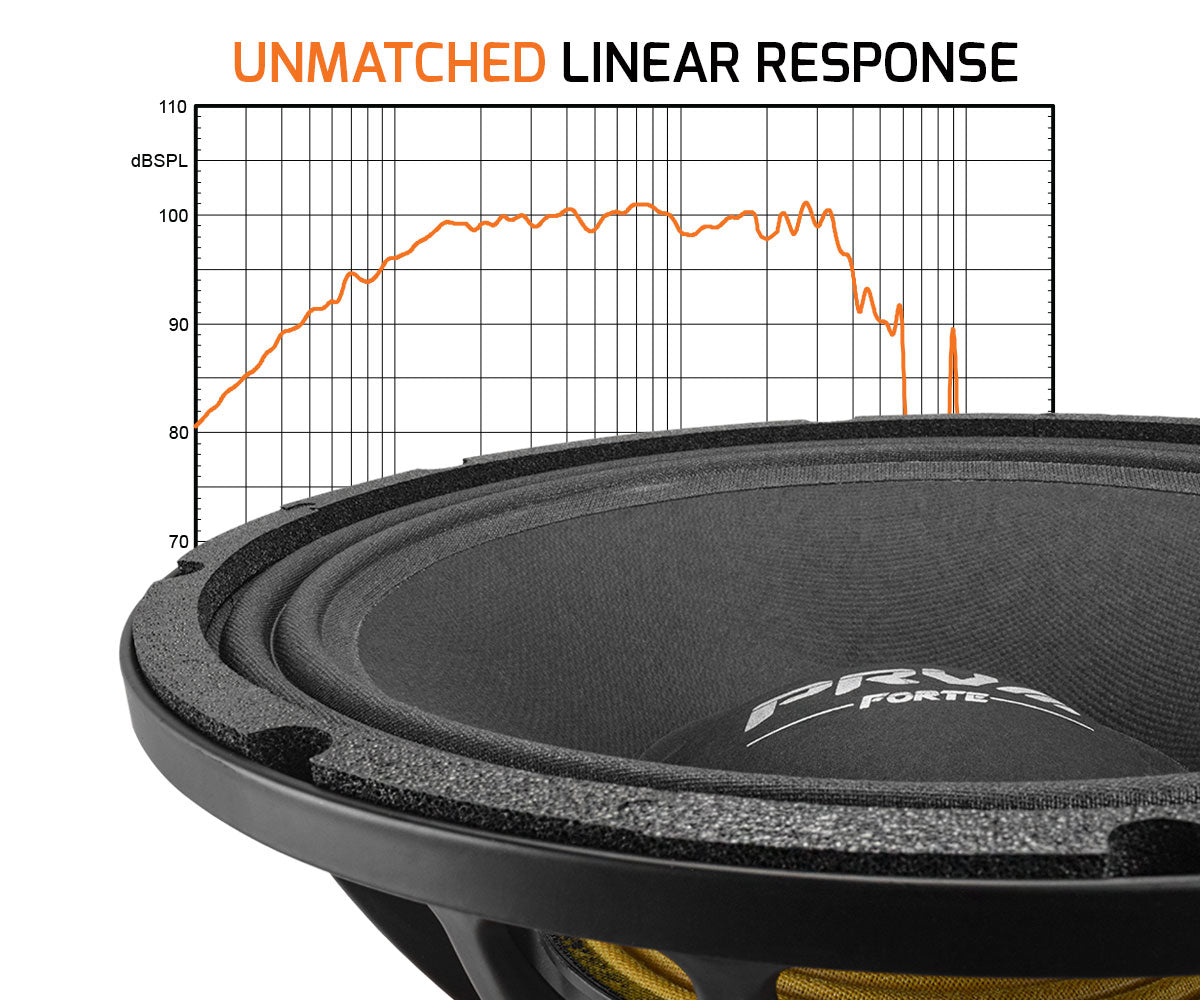

It offers an unmatched linear response, which you can see very clearly on its frequency response, its vocal output is almost flat giving you the most accurate music response in a wide frequency range.

Pure midbass punch is well controlled down to 80 Hz thanks to its high x-max, which makes it an ideal option for ported cabinet systems that require strong BL magnet force and midbass punch or custom door panels.

A remarkable new addition to the Forte Series, where more power handling and less distortion on mid low midbass frequencies is the key.

  • 2000 Watts continuous program power RMS rating makes high acoustic output
  • Ventilated voice coil gap and magnet THERMOBLADE heatsink to reduce power compression
  • High BL factor and Xmax for outstanding Low output
  • Unmatched linear response, most accurate music response in a wide frequency range. High 99.5 dB Sensitivity
  • 12″ PRO Audio Midbass Neodymium Loudspeaker designed for Low Frequencies at High Power for Custom Door Panels

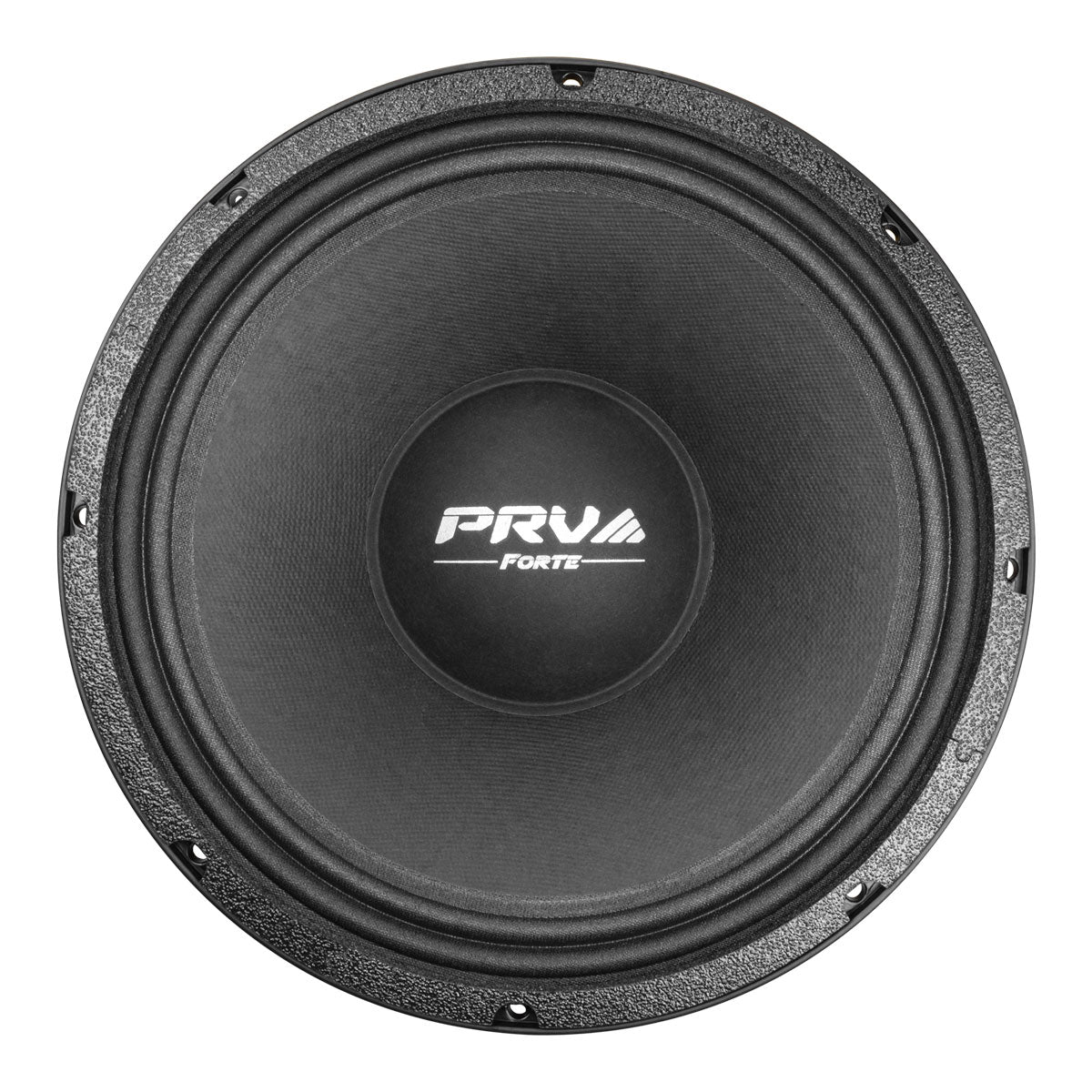

Featuring a paper cone with a special high strength paper pulp composition designed to achieve the highest possible linearity within the middle frequency range. In addition, it features a special cone treatment specifically to improve the dampening properties of the moving assembly, consequently improving the vocal frequency response. The Perfect speaker for TUKUTEO® sound.

This midbass will stand up to years of serious professional use!

Its double roll surround keeps cone travel linear at high excursion, giving exceptional vocal clarity and detail while it performs a strong dynamic midbass punch.

The specially designed rigid cast aluminum frame features side forced cooling system openings, allowing airflow to cool the voice coil.

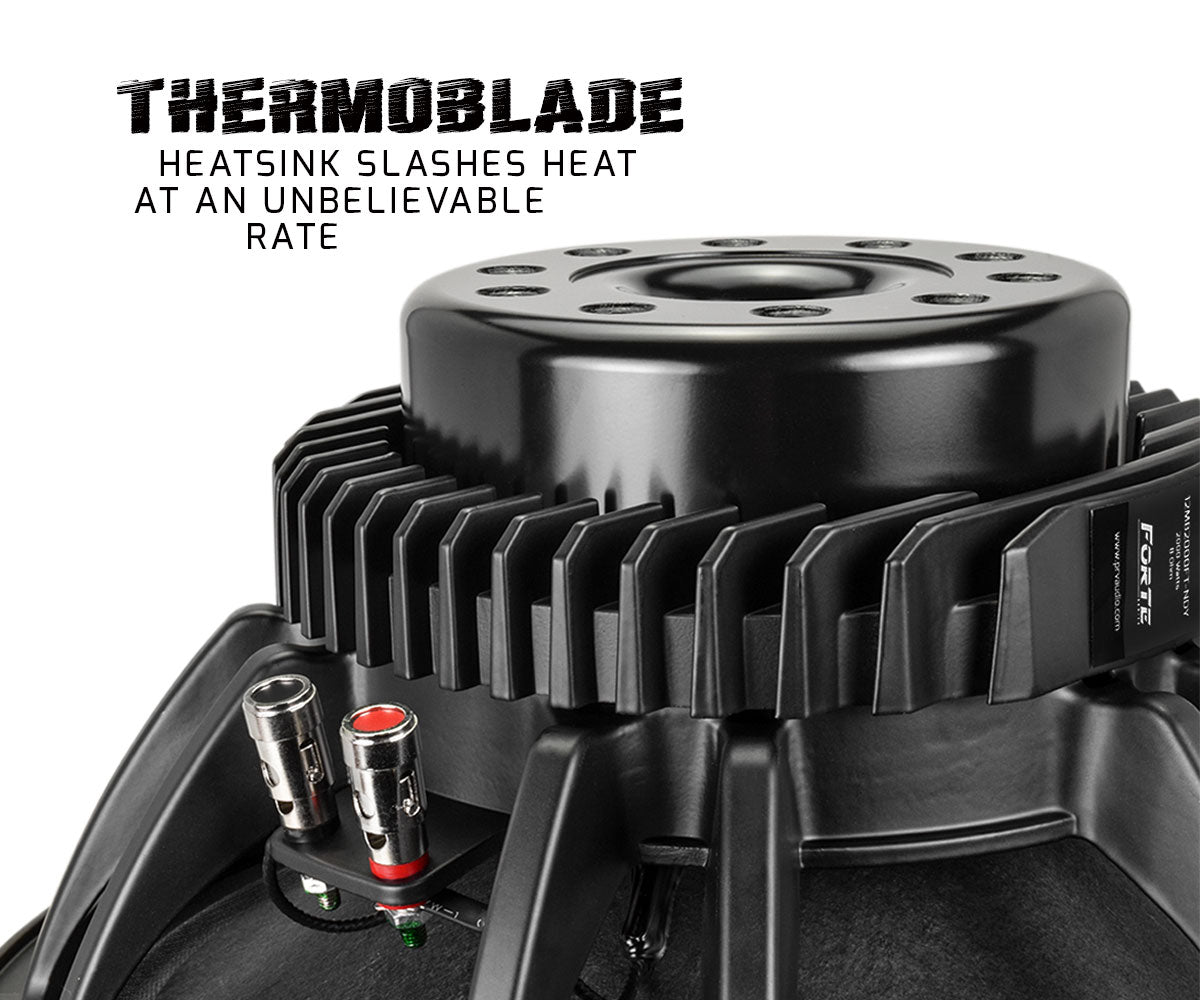

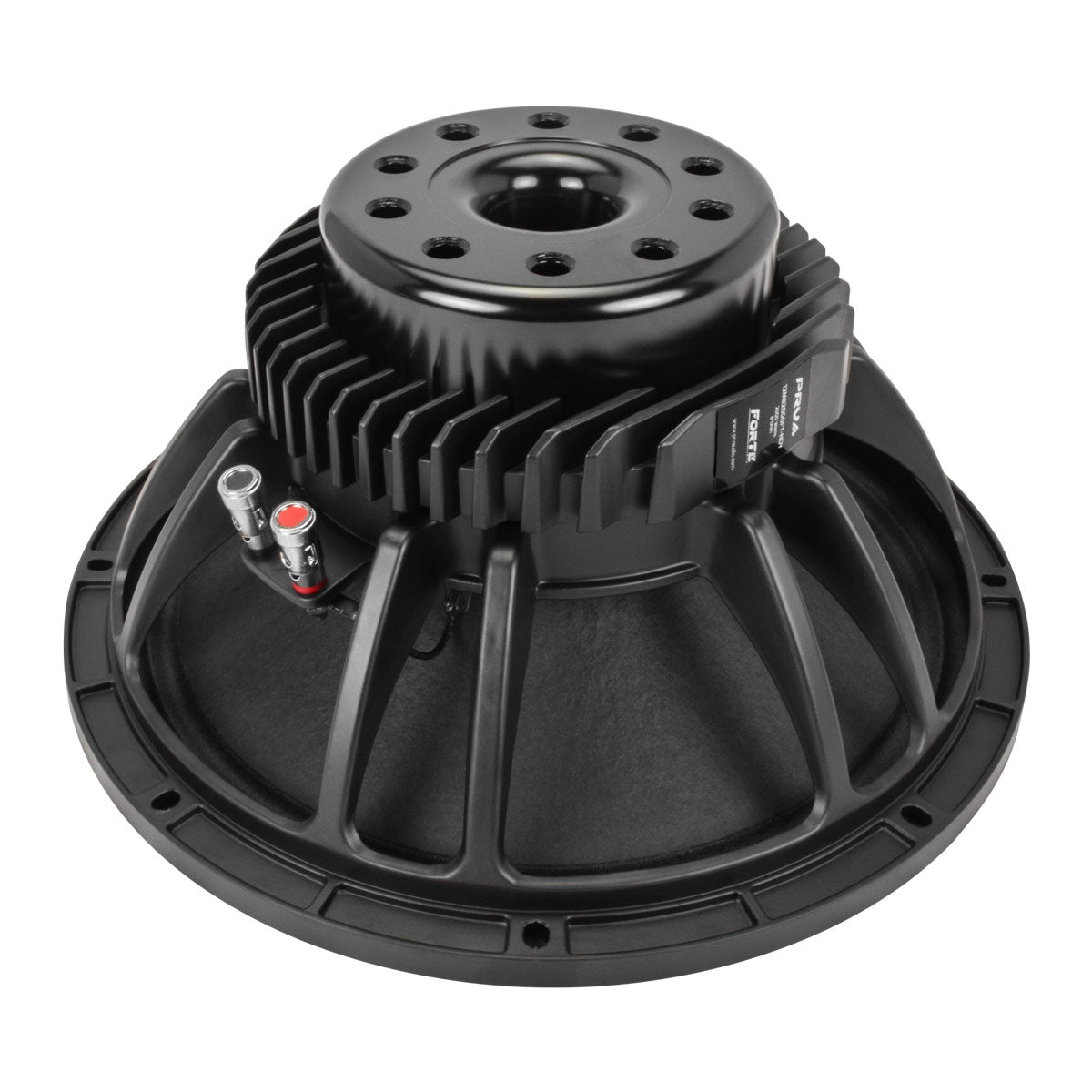

Additionally, a huge neodymium motor assembly is wrapped around with THERMOBLADE  Heatsink to slash heat at an unbelievable rate to handle up to 2000 Watts RMS without any problems.

Its large neodymium motor has enough space for its tall voice coil to travel on high excursion which allows its cone to travel about 1.50″ peak-to-peak, giving it a heck of a punch.

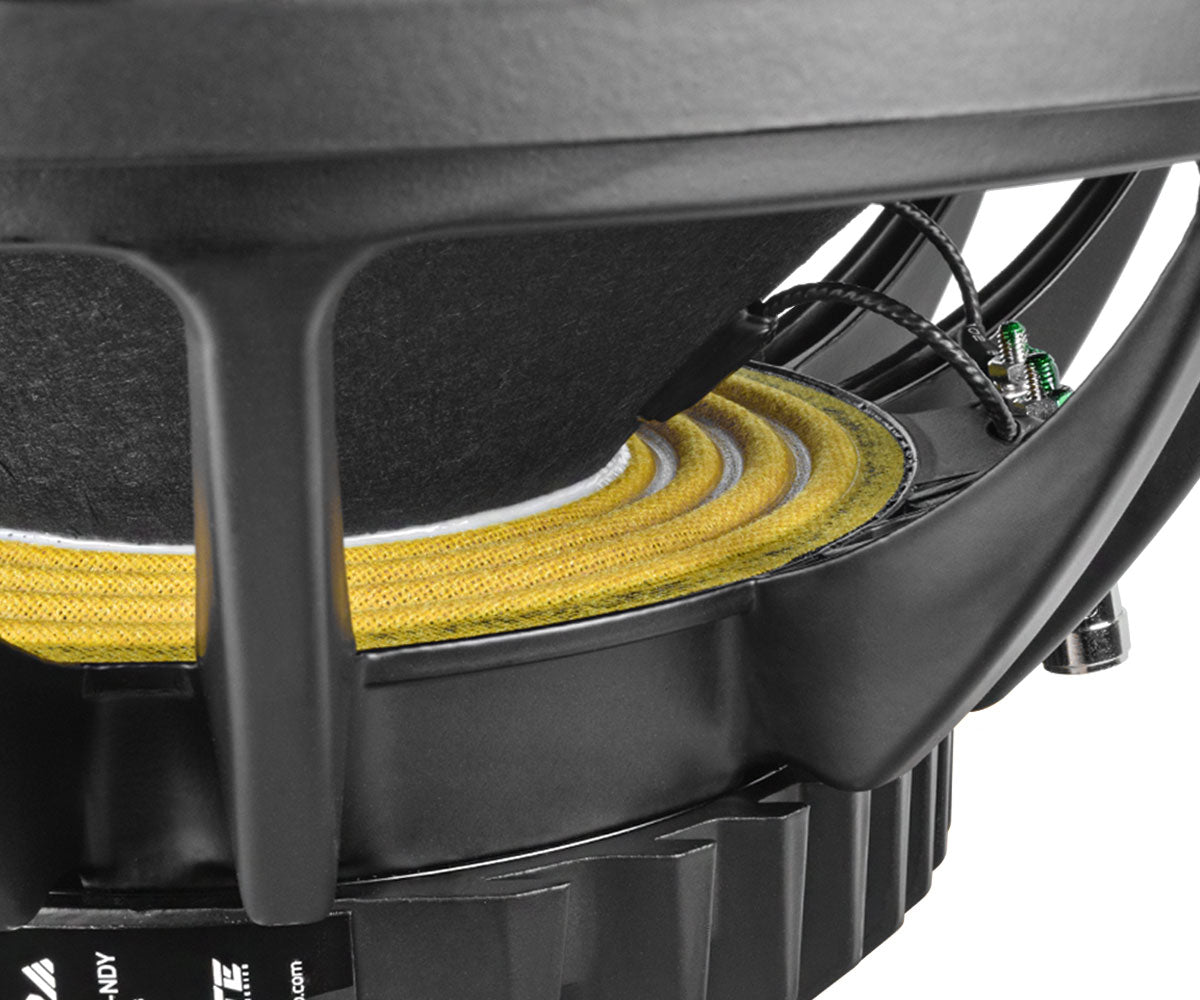

Thanks to its silicone spider this speaker can handle high excursion tones without compromising sound quality. This allows it to deliver impressive low frequency performance while maintaining clarity and definition on vocals.

This suspension system ensures excellent control during large high excursions and handling short bursts of excessive power without damage, inheriting this technology from our famous 12MB1500 / 12MB1500FT

Its weight and size per performance ratio makes this the Perfect Door Speaker for a 2-Way door panel, combined with either the D3220Ti-Nd or D3220TiH-Nd.

PRV 12″ Midbass Speaker 12MB2000FT-NDY 2000 Watts / 8 Ohm – Compact Profile Door Speaker / Neodymium High Output Loudspeaker

Recommended Amplifier configurations and crossover points:

2 Speakers – 1x QS5000 at 2 Ohm, 2 speakers in parallel
4 Speakers – 1x QS7000 at 2 Ohm, 4 speakers in parallel
8 Speakers – 1x QS16000 at 1 Ohm, 8 speakers in parallel

Recommended HPF using PRV Digital Signal Processor DSP when using up to 2000 Watts RMS musical power ( without clipping )

  • 85 Hz at 12 dB per octave filter Crossover / BT12
  • 80 Hz at 18 dB per octave filter Crossover / BT18

If you have compression drivers on your system the recommended LPF is 2,800Hz at 18 dB per octave filter Crossover / BT18 but you may set it lower to blend in better depending on the other components in your system.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 12″ (304 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 1000 Watts
  • Continuous Program Power (RMS)** 2000 Watts
  • Max Peak Power*** 4000 Watts
  • Sensitivity 2.83V at 1m99.5 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 85 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 72 – 5,200 Hz
  • Voice Coil Diameter 3.5″ (86 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth17.0 mm
  • Former Material Glass fiber
  • Magnetic Gap Depth 10.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 71.5 l
  • Excursion (mathematical)**
    • Xmax
    • 6.00 mm
  • Free Air Resonance
    • Fs
    • 55.1 Hz
  • Mechanical Factor
    • Qms
    • 10.30
  • Electrical Factor
    • Qes
    • 0.31
  • Total Factor
    • Qts
    • 0.30
  • Cone Area
    • Sd
    • 585 cm²
  • Mechanical Mass
    • Mms
    • 55.69 g
  • BI Factor
    • Bl
    • 17.74 Tm
  • Dc Resistance
    • Re
    • 5.1 Ohm
  • Inductance
    • Le
    • 0.813 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 47.67 g
  • Mechanical Compliance
    • Cms
    • 0.149 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 12MB2000FT-NDY Midbass DATASHEET Download

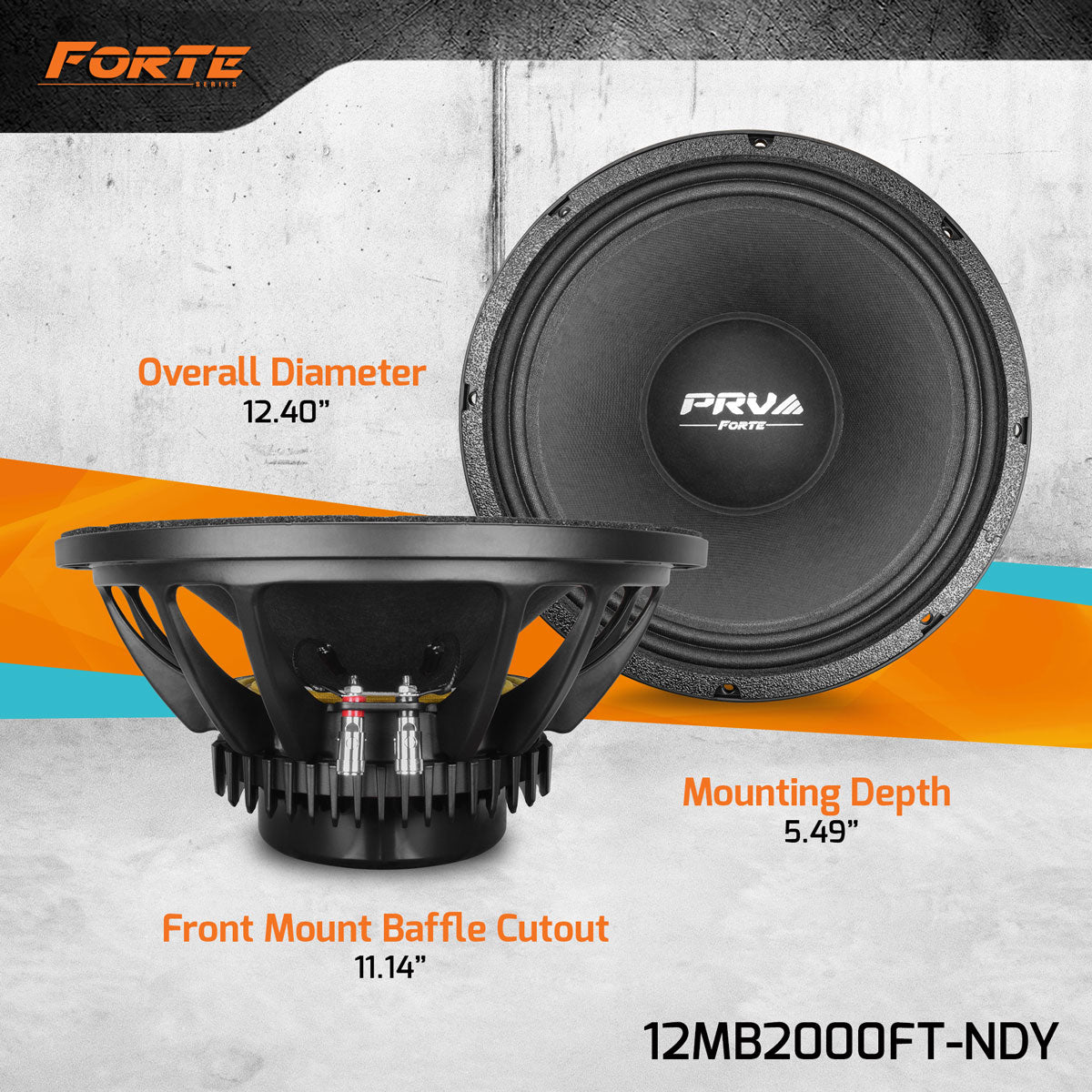

  • Overall Depth 6.04” (153.5 mm)
  • Mounting Depth 5.49″ (139.5 mm)
  • Overall Diameter 12.40″ (315 mm)
  • Front Mount Baffle Cutout 11.18″ (284 mm)
  • Net Weight 13.60 Lbs (6.15 kg)
  • Shipping Weight 15.20 Lbs (6.85 kg)

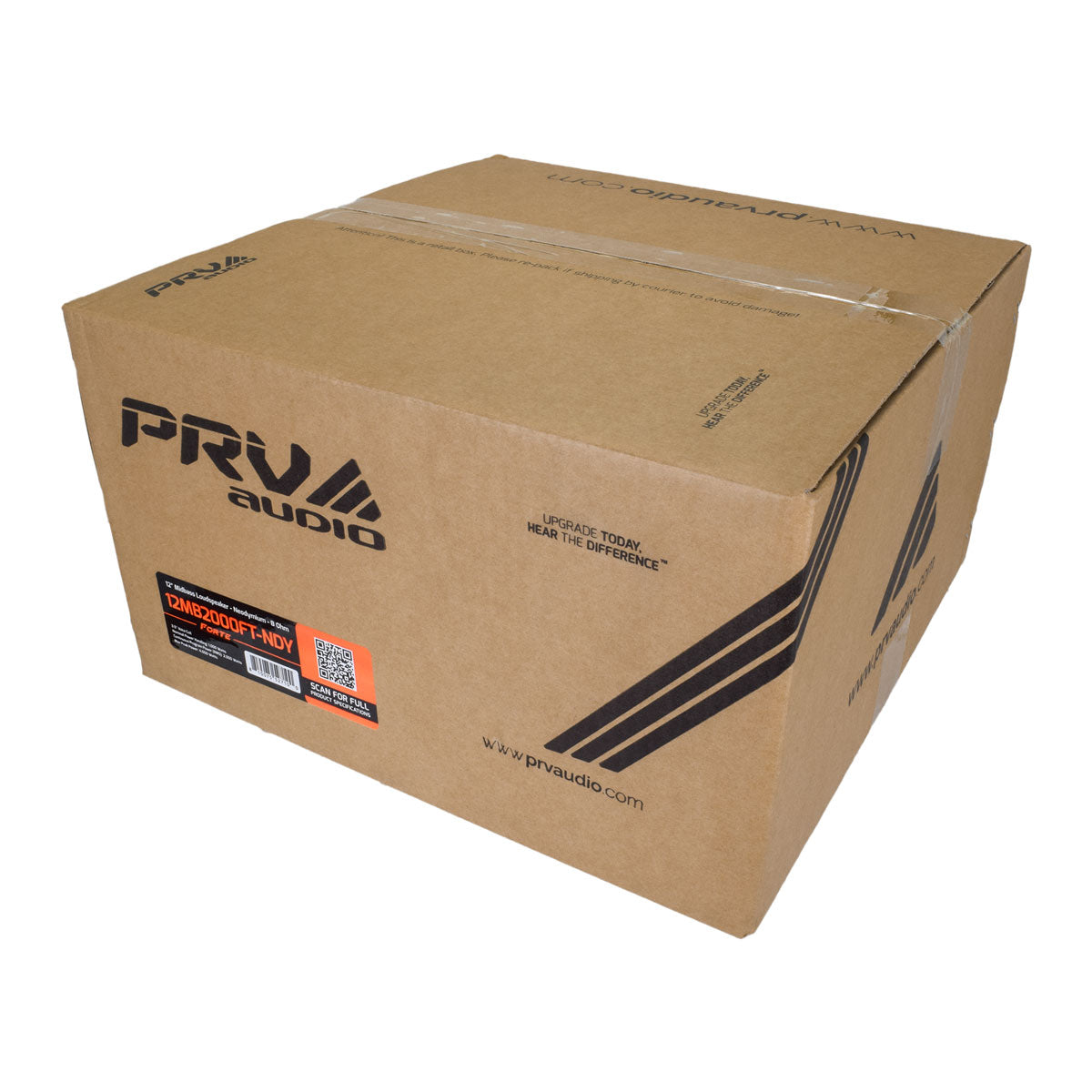

  • Carton Dimensions WxLxH 15.95″ x 15.95″ x 9.64″ (405 x 405 x 245 mm)
PRV 12MB2000FT-NDY Midbass DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

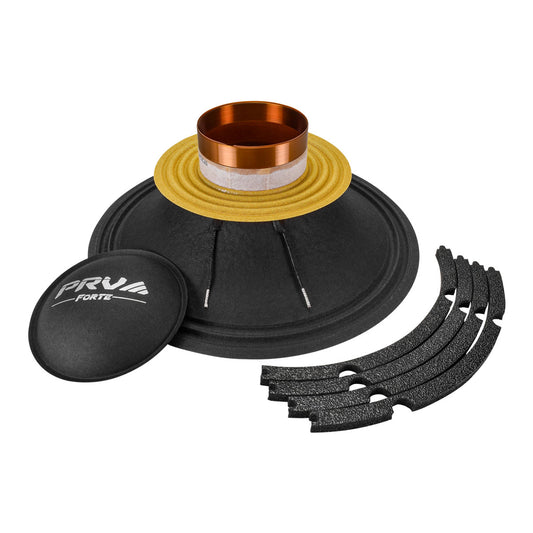

Repair Parts

  • RK12MB2000FT-NDY

    RK12MB2000FT-NDY

    RK12MB2000FT-NDY

    RK12MB2000FT-NDY

    Price:
    $69.91
    $83.89 $69.91
