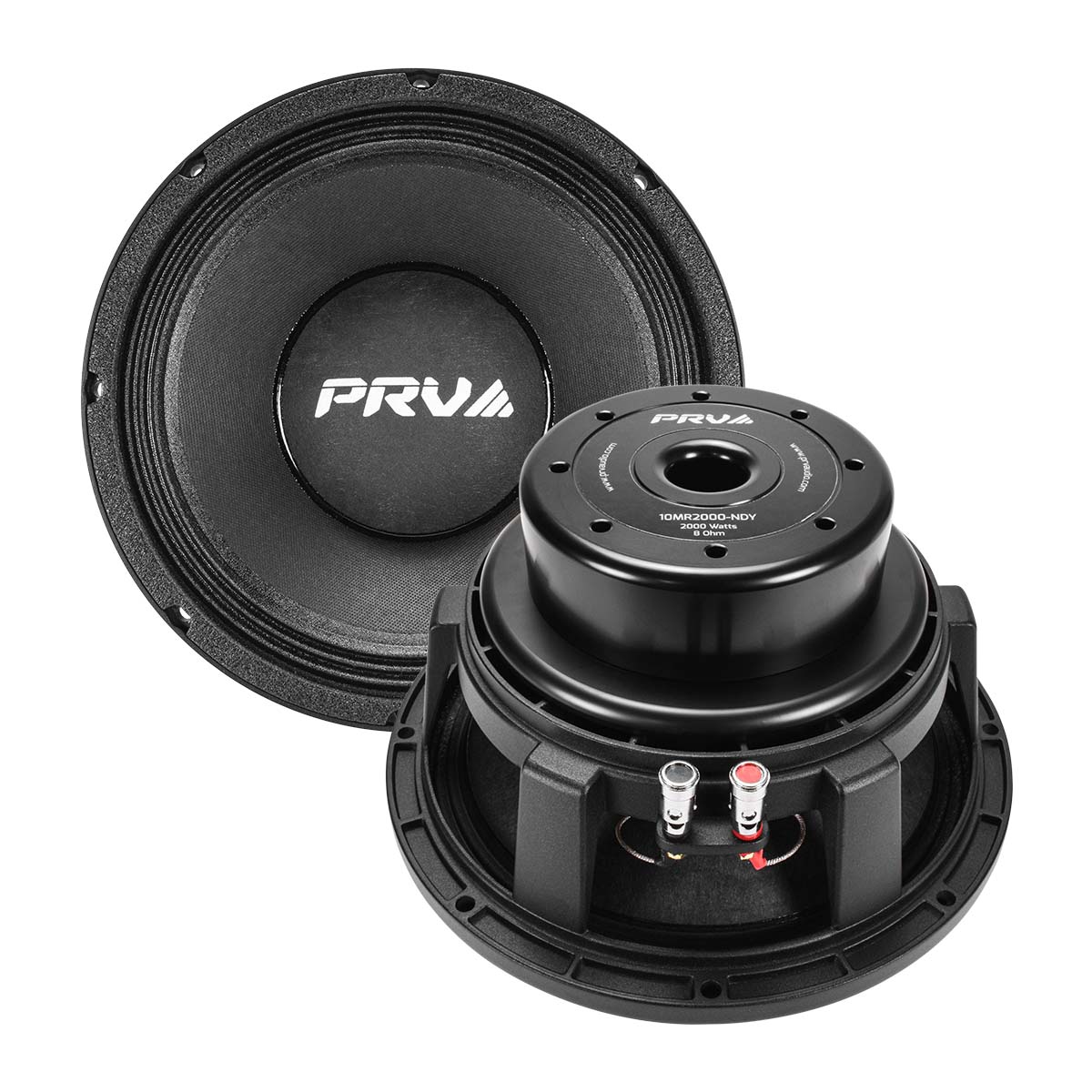

PRV 10MR2000-NDY Midrange

PRV 10MR2000-NDY Midrange

SKU: 10MR2000-NDY

Tags: 10" Speakers
MONTHLY SPECIAL

PRV 10MR2000-NDY Midrange

PRV 10MR2000-NDY Midrange

SKU: 10MR2000-NDY

Tags: 10" speakers

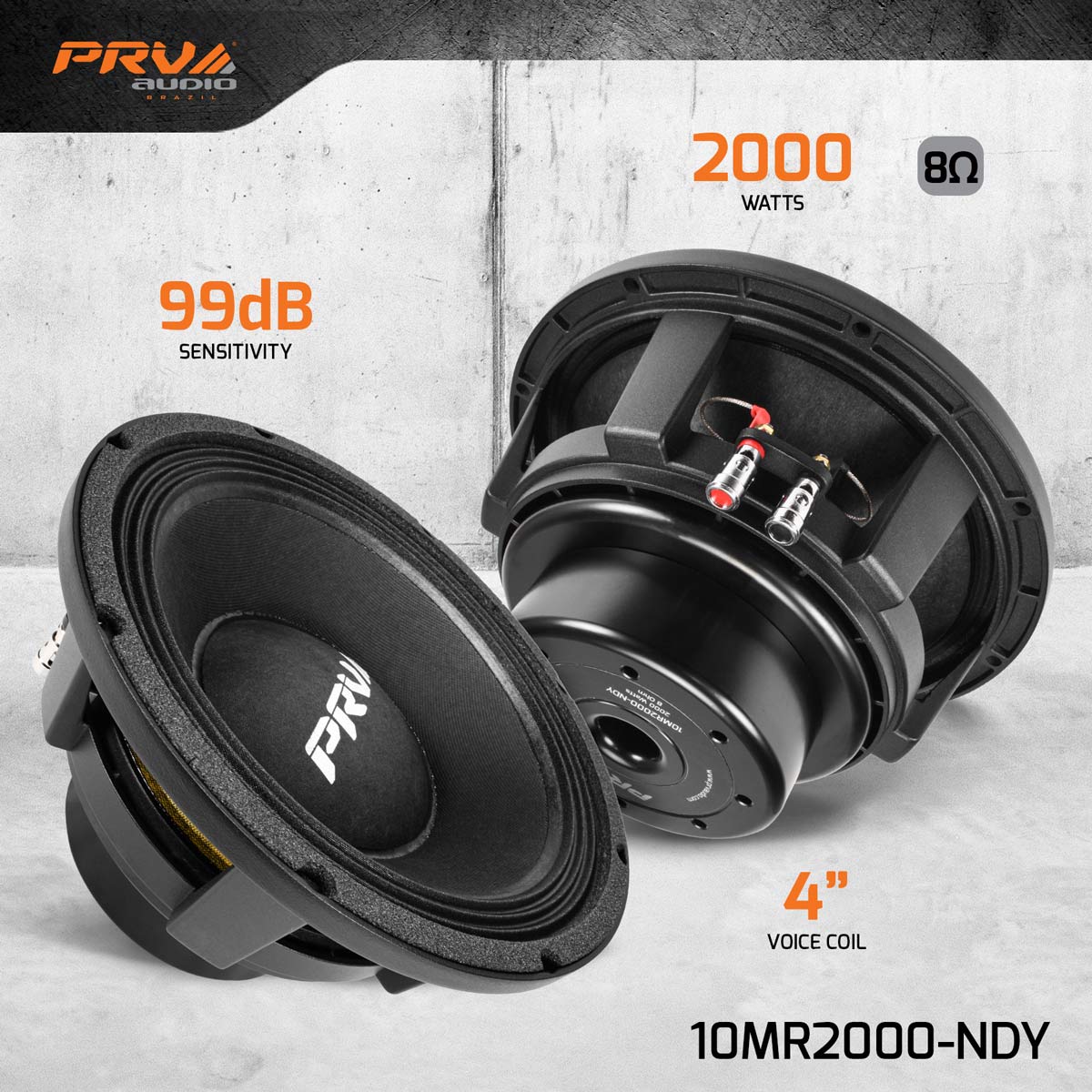

  • 10" Midrange - 8 Ohm
  • Neodymium Magnet
  • 99 dB - 2000 Watts
$249.91
$312.39

In stock
  • 10" Midrange - 8 Ohm
  • Neodymium Magnet
  • 99 dB - 2000 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

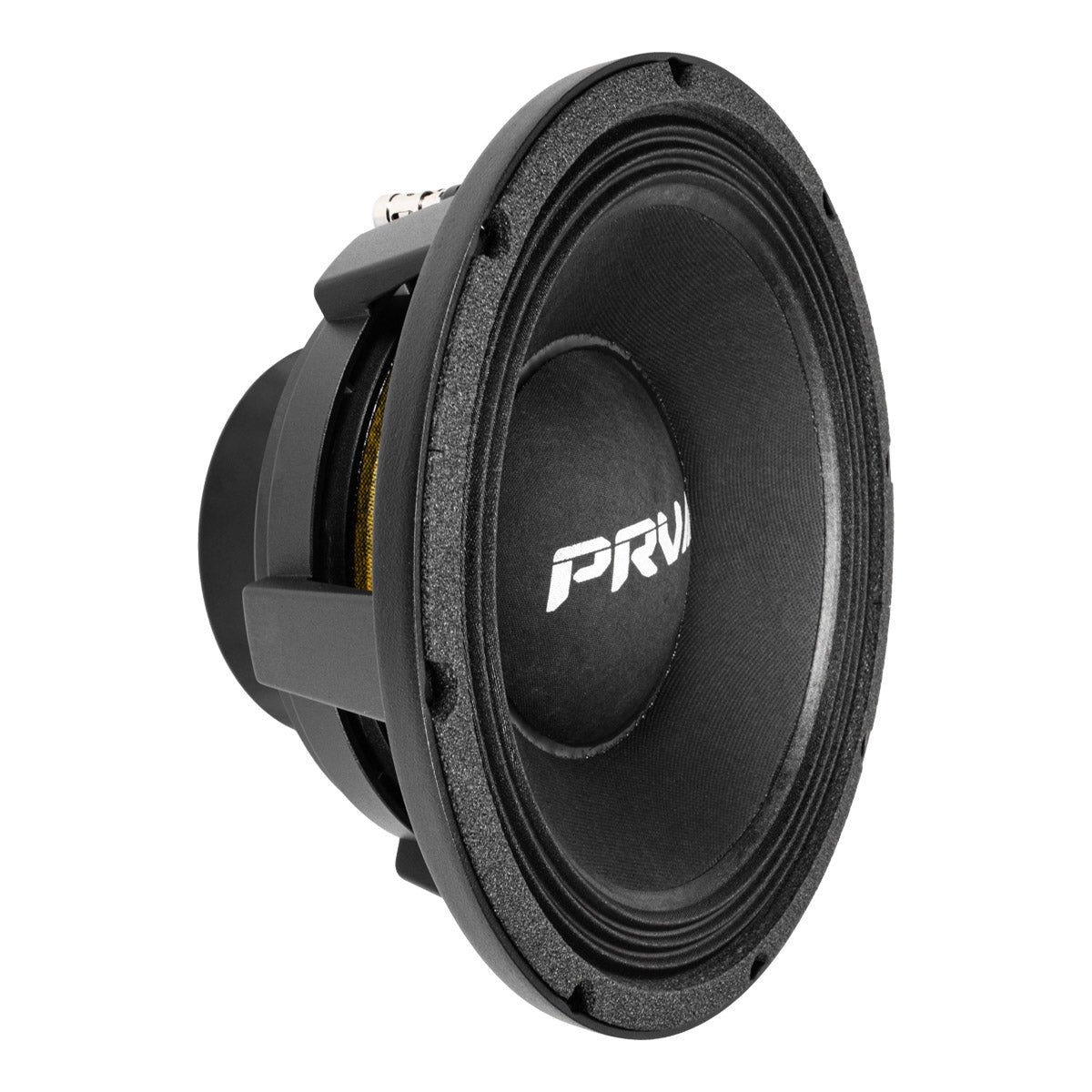

The PRV Audio 10MR2000-NDY midrange offers outstanding durability and is our most powerful midrange loudspeaker with a 4 inch voice coil. This mid is an ideal option for high power 2 or 3-way systems. It produces excellent vocal support for stage monitors, chuchero boxes, custom car doors and stuntwalls.

A powerful neodymium motor keeps size and weight to a minimum to make it easy to install this mid in any system, even when you are short of space.

  • 4″ Inside/Out copper clad voice coil wound on fiberglass former for high-temp performance – 8 Ohm
  • One of the most outstanding pro audio midrange for high SPL systems, this 2000 Watts 10" midrange is one beast of a speaker!
  • Excellent performance in compact enclosures and custom car door panels.
  • During hard play, the large 4" voice coil provides very high efficiency while providing smooth and accurate midbass response.
  • With its high power handling this speaker can also be used as a midbass loudspeaker when it is kept at only 1000 Watts RMS, you can lower the HPF as low as 95 Hz.

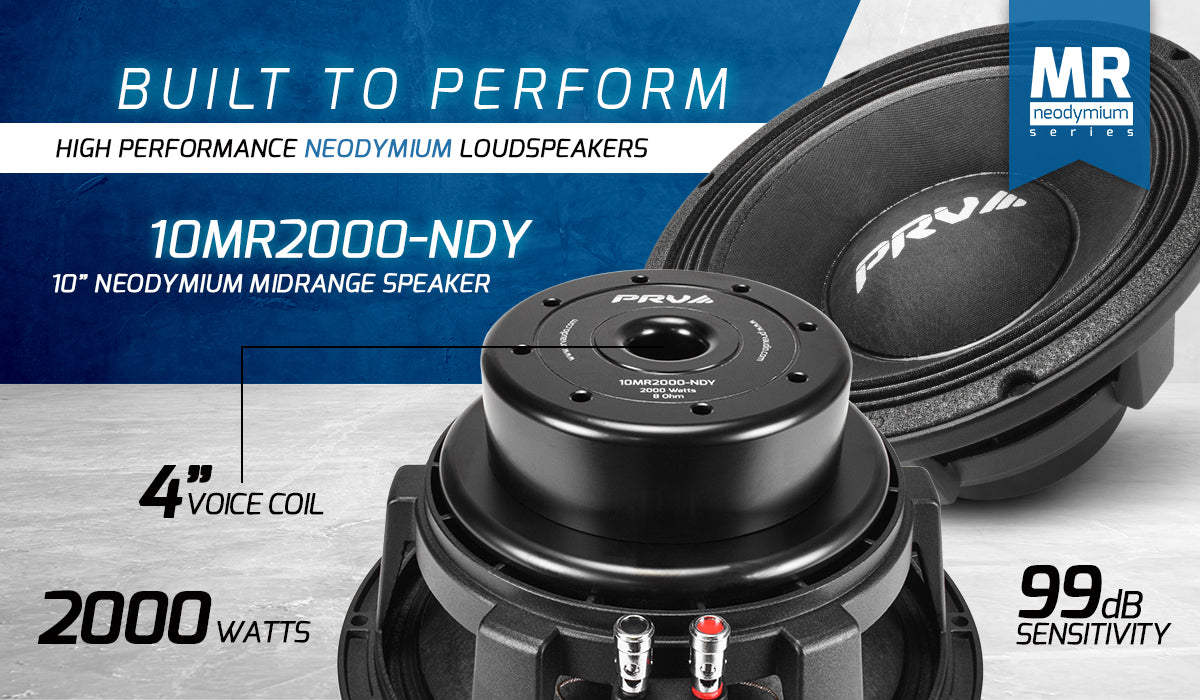

10MR2000 NDY Highlight Infographic

With excellent damping characteristics, the lightweight paper cone and accordion surround gives this mid smooth response up to 6,500 Hz for that incredibly clear vocal response that PRV midranges are known for.

Developed to perform well in tight enclosures, its triple roll surround keeps its cone travel linear at high mibdass excursion.

Featuring a large 4" voice coil, it provides exceptional sound clarity and ensures durability and consistent performance over time.

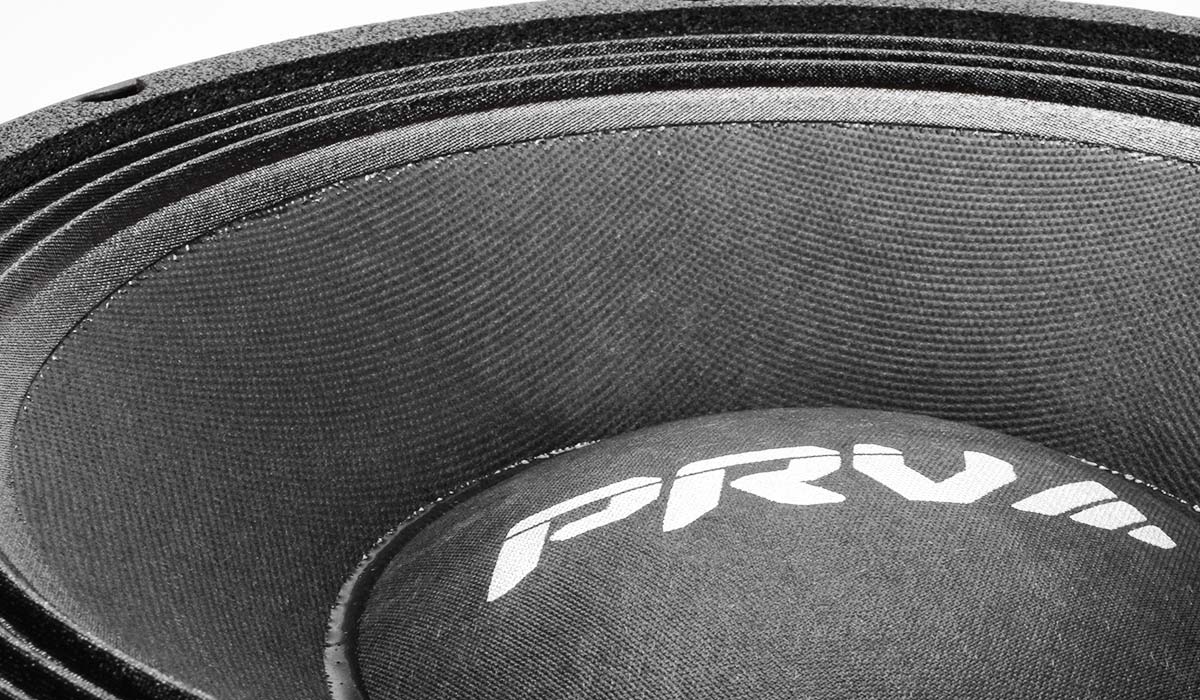

10MR2000 NDY Highlight Surround View

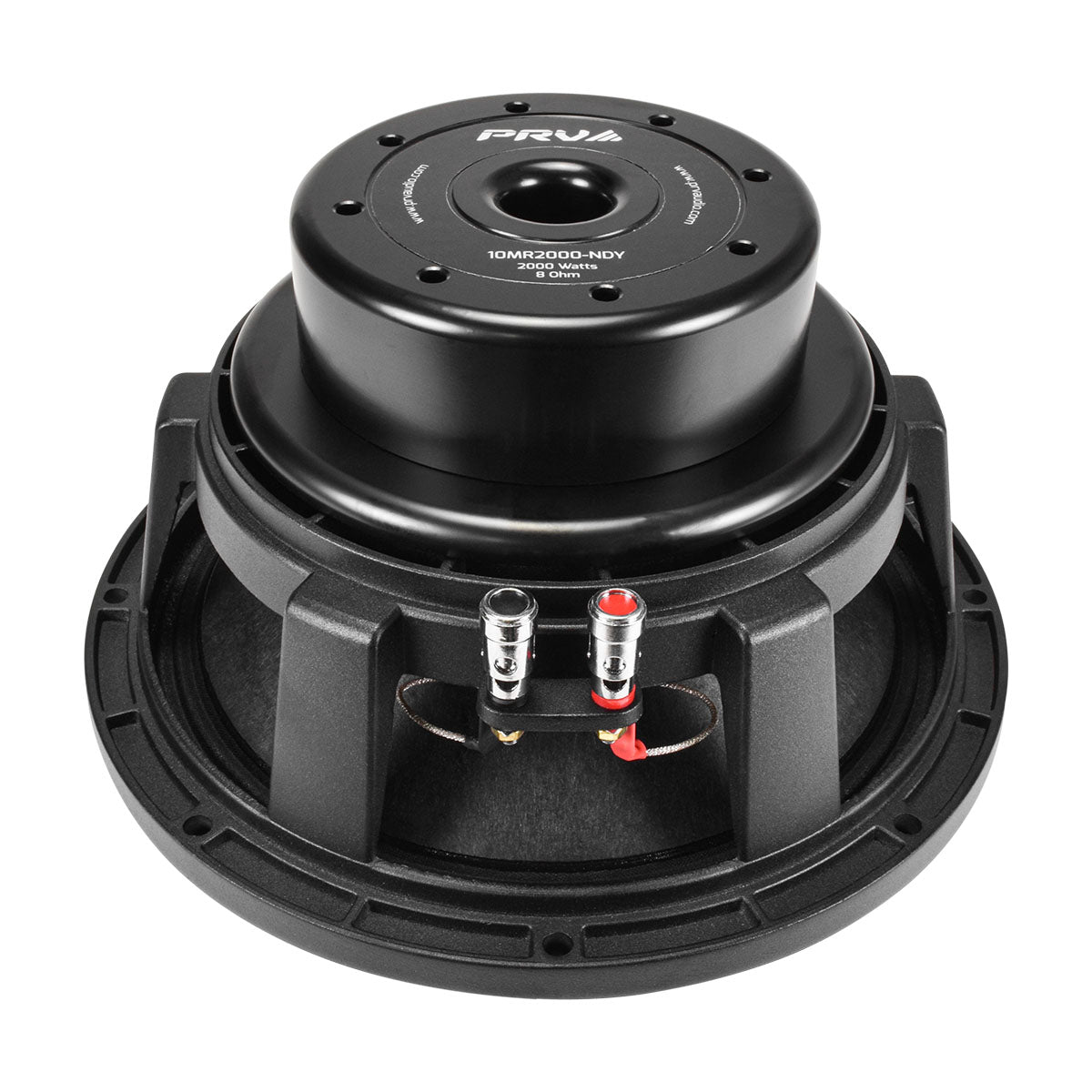

Featuring high energy, rare-earth neodymium motor, combined with other fine materials, were chosen to increase sensitivity and power handling to deliver the finest details in audio, as demanded by most audiophiles and custom builders in the car audio.

The extensive venting through the motor and cast aluminum frame helps to dissipate that heat to keep power compression low even after extended periods of high output.

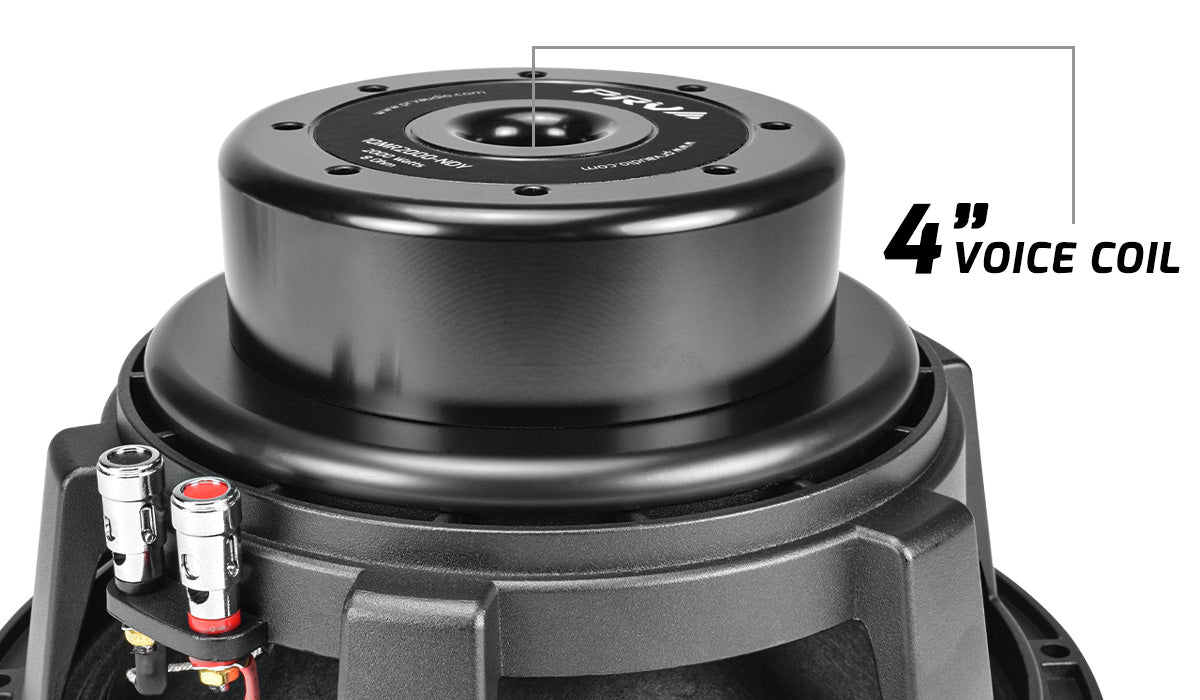

10MR2000 NDY Highlight Magnet

When it comes to custom doors, this is the most versatile and loud speaker PRV audio offers. The PRV Audio 10MR2000-NDY mid is the best option for keeping your door panel compact and high-performing.

Its lightweight and compact profile makes it the perfect high power loud speaker for custom doors, whether you plan to use it as a Midrange speaker to boost vocals or as a Midbass speaker to hit strong punch tones.

10MR2000 NDY Highlight Infographic

PRV 10″ Midrange Speaker 10MR2000-NDY 2000 Watts / 8 Ohm High Power Neodymium PRO Audio Loudspeaker

Recommended Amplifier configurations and crossover HPF using PRV Digital Signal Processor DSP when using the recommended power below:

Custom System, Middle Power – MIDBASS Application
• 95 Hz at 18 dB per octave filter Crossover / BT18
when using up to 750 to 1000 Watts RMS musical power

4 Speakers– 1x QS3000 at 2 Ohm, all wired in parallel
8 Speakers– 1x QS7000 at 1 Ohm, all wired in parallel
or
Custom System, High Power – MIDRANGE Application
• 145 Hz at 18 dB per octave filter Crossover / BT18
when using up to 1500 to 2000 Watts RMS musical power

4 Speakers – 1x QS7000 at 2 Ohm, all wired in parallel
8 Speakers – 1x QS16000 at 1 Ohm, all wired in parallel

If you have compression drivers on your system the recommended LPF is 2,500 Hz at 18 dB per octave filter Crossover / LR18 but you may set it lower to blend in better depending on the other components in your system, or you may not use a LPF at low power to take advantage of its high frequency response.

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 1000 Watts
  • Continuous Program Power (RMS)** 2000 Watts
  • Max Peak Power*** 4000 Watts
  • Sensitivity 2.83V at 1m99 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 160 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 90 – 6,500 Hz
  • Voice Coil Diameter 4″ (101 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth14.5 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 9.0 mm
  • Frame Material Die Cast Aluminum
  • Magnet Type Neodymium

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 27.98 l
  • Excursion (mathematical)**
    • Xmax***
    • 5.00 mm
  • Free Air Resonance
    • Fs
    • 54.48 Hz
  • Mechanical Factor
    • Qms
    • 1.54
  • Electrical Factor
    • Qes
    • 0.21
  • Total Factor
    • Qts
    • 0.21
  • Cone Area
    • Sd
    • 373 cm²
  • Mechanical Mass
    • Mms
    • 59.33 g
  • BI Factor
    • Bl
    • 21.73 Tm
  • Dc Resistance
    • Re
    • 5.0 Ohm
  • Inductance
    • Le
    • 0.50 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 35.96 g
  • Mechanical Compliance
    • Cms
    • 0.143 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 10MR2000-NDY Midrange DATASHEET Download

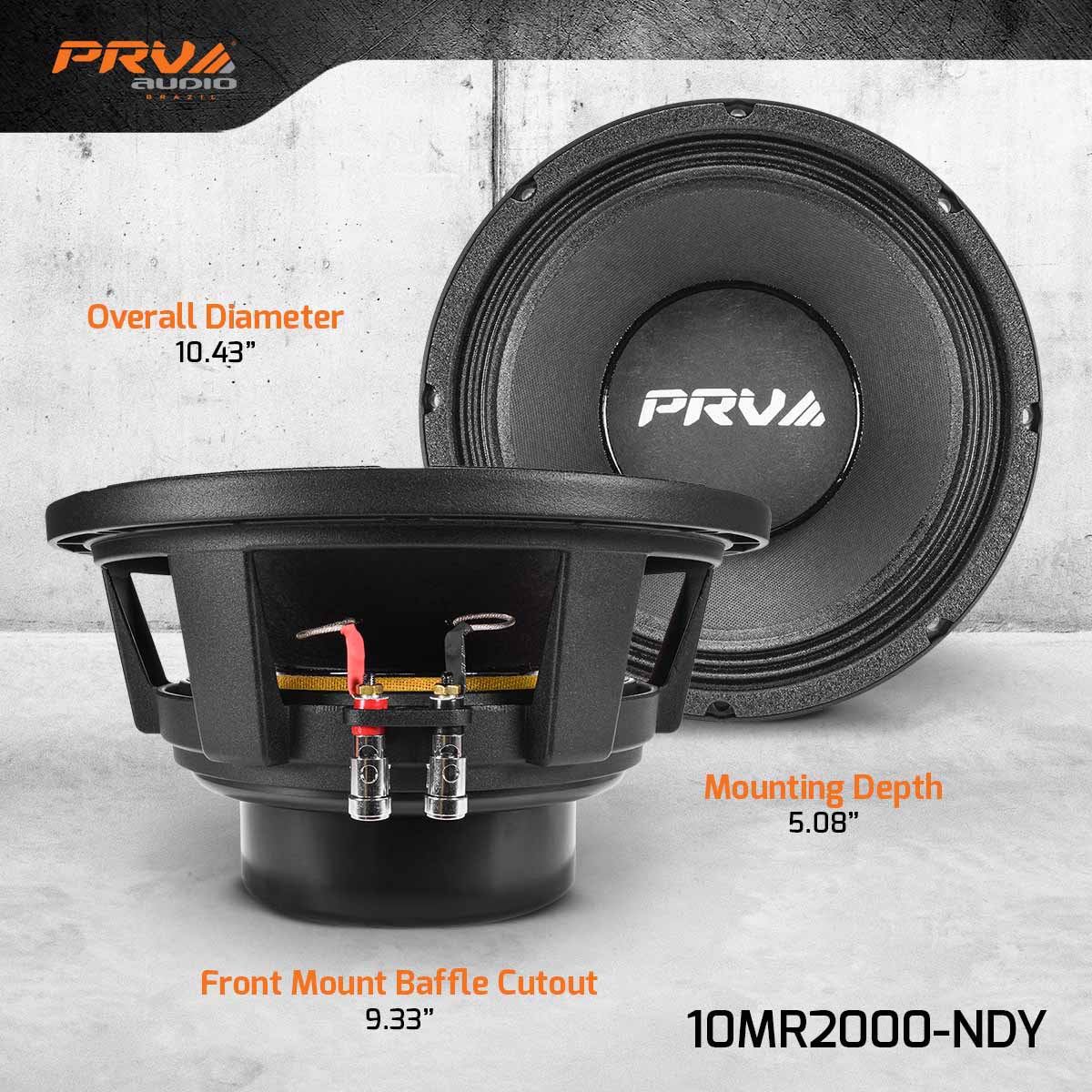

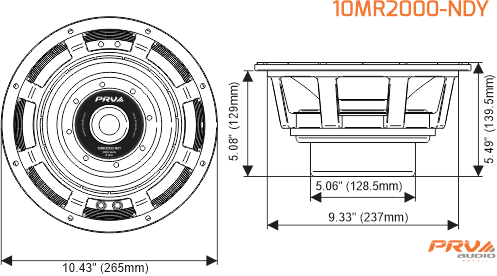

  • Overall Depth 5.49″ (139.5 mm)
  • Mounting Depth 5.08″ (129 mm)
  • Overall Diameter 10.43″ (265 mm)
  • Front Mount Baffle Cutout 9.33″ (237 mm)
  • Net Weight 12.78 Lb (5.8 kg)
  • Shipping Weight 14.55 Lb (6.6 kg)
  • Carton Dimensions WxLxH 12.6″ x 12.6″ x 7.8″ (320 x 320 x 195 mm)
PRV 10MR2000-NDY Midrange DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

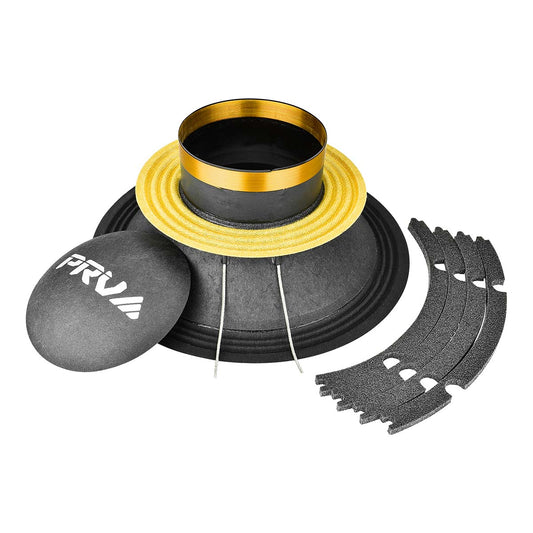

  • PRV RK10MR2000-NDY
