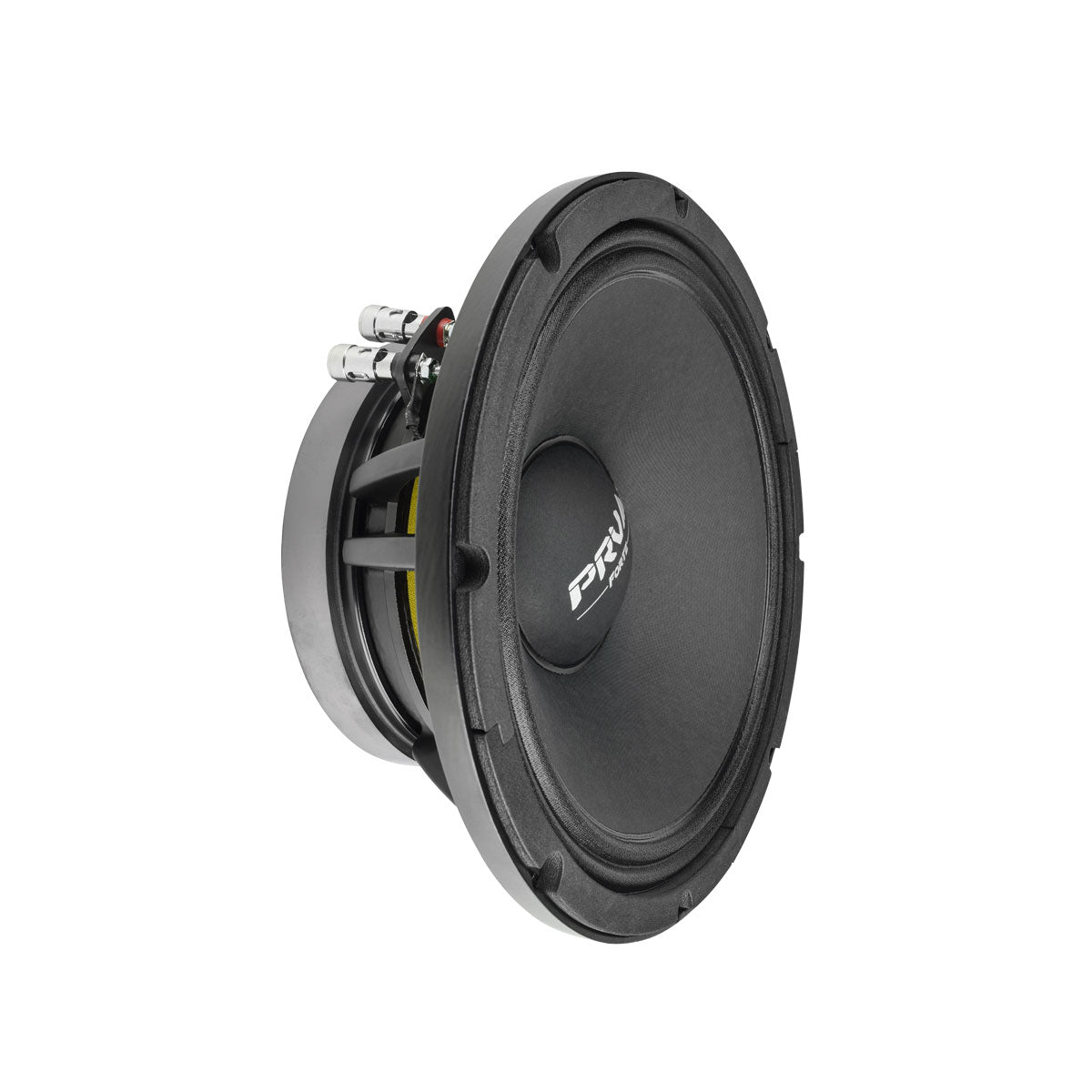

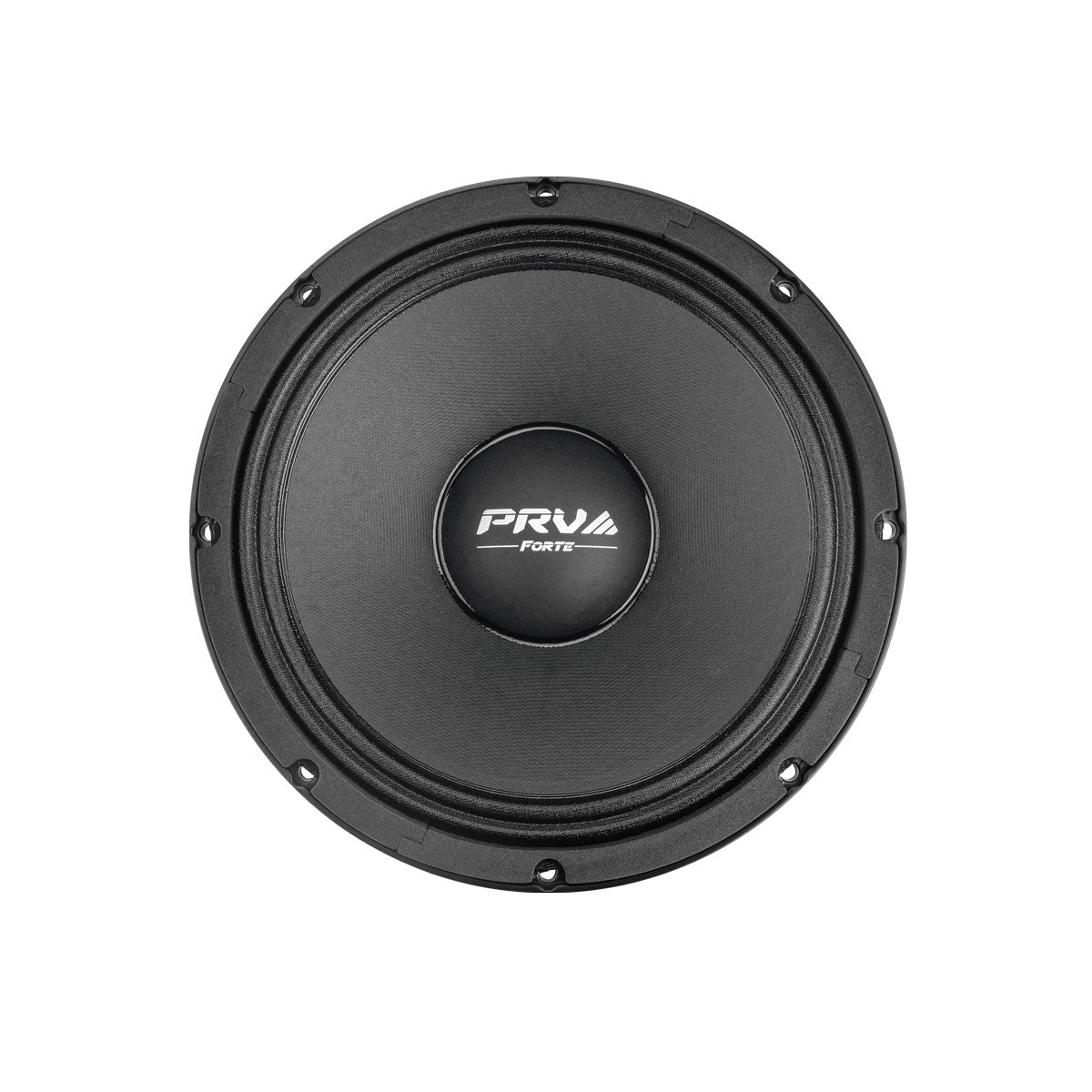

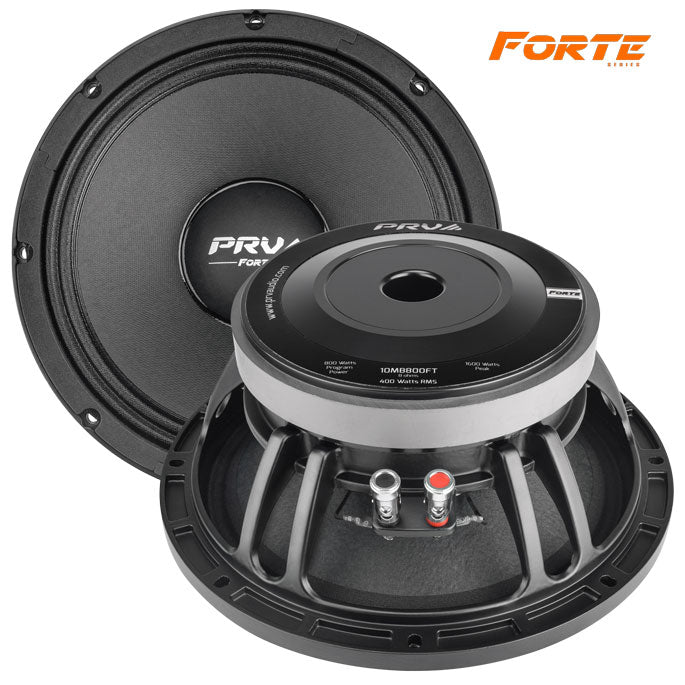

PRV 10MB800FT Midbass

PRV 10MB800FT Midbass

SKU: 10MB800FT

PRV 10MB800FT Midbass

PRV 10MB800FT Midbass

SKU: 10MB800FT

  • 10" Midbass - 8 Ohm
  • Ferrite Magnet
  • 99 dB - 800 Watts
$119.91
$149.89

In stock
  • 10" Midbass - 8 Ohm
  • Ferrite Magnet
  • 99 dB - 800 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

For high output speaker systems, PRV Audio’s 10MB800FT midbass is an excellent option capable of amazing performance. A great new addition to the Forte Series, where more power handling and less distortion on midlow midbass frequencies is the key.

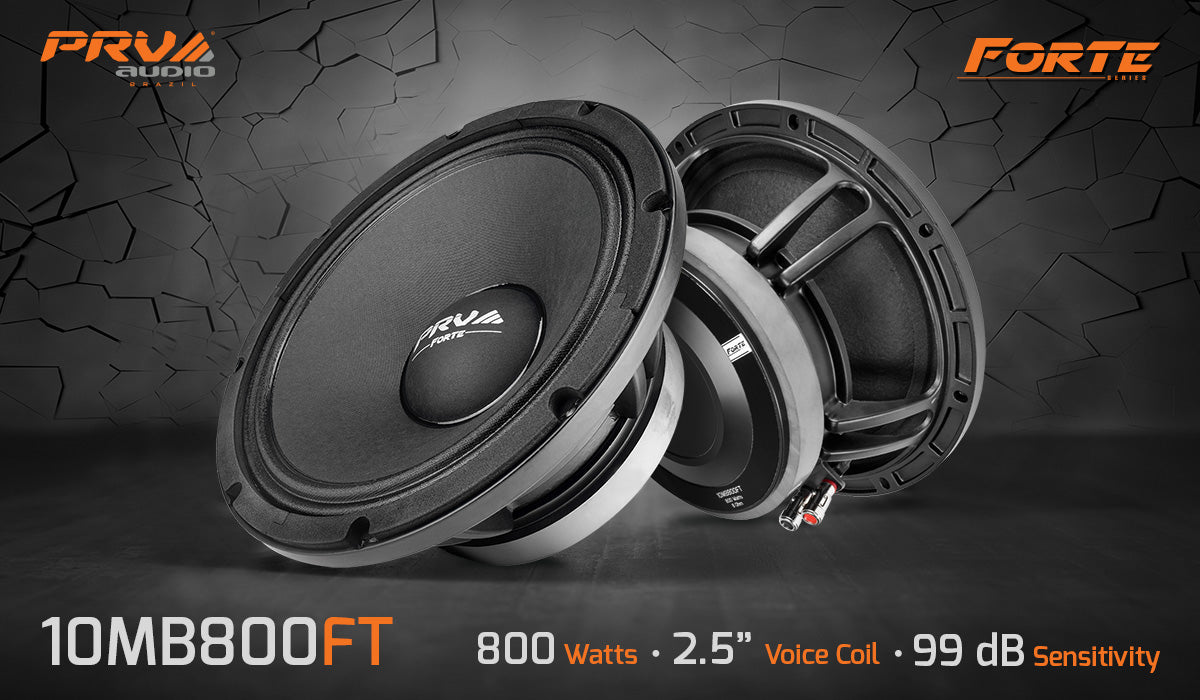

The 10MB800FT is a rugged 10″ midbass that combines midbass punch and mid clarity at remarkable SPL output with low distortion and extended midbass response. Optimized for use in compact enclosures, this midbass speaker provides a smooth vocal response with great output from 500 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

  • 2.5″ Inside/Out aluminum voice coil wound on fiberglass former for hi-temp performance, 8 ohm
  • Ventilated voice coil gap reduces power compression
  • High Xmax for more mid bass output
  • 800 watts continuous program power rating makes the high acoustical output
  • Excellent performance in 2-way or 3-way systems

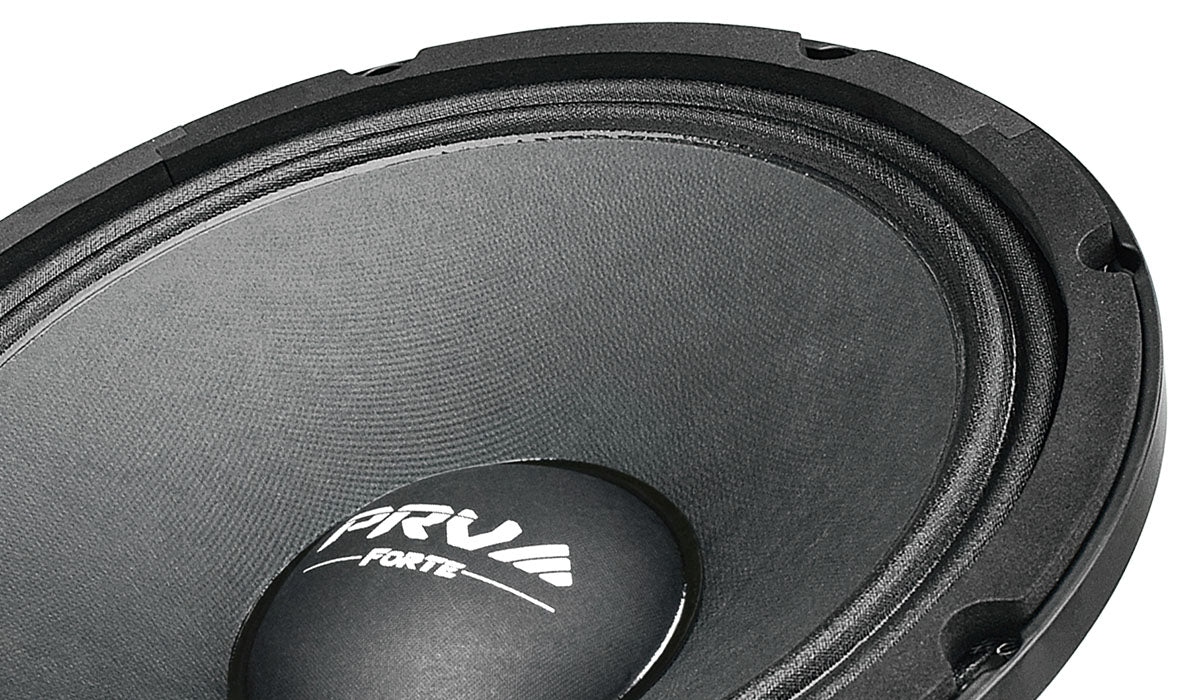

To get superior fidelity, the special composite cone is built with non-pressed paper for a reduced break-up, delivering a smooth frequency response and a low moving mass, increasing the efficiency of the speaker. The Perfect speaker for TUKUTEO® sound.

The high sensitivity rating of 99 dB 1W/1M which makes it capable of generating a lot of output! This 10″ is a great midbass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

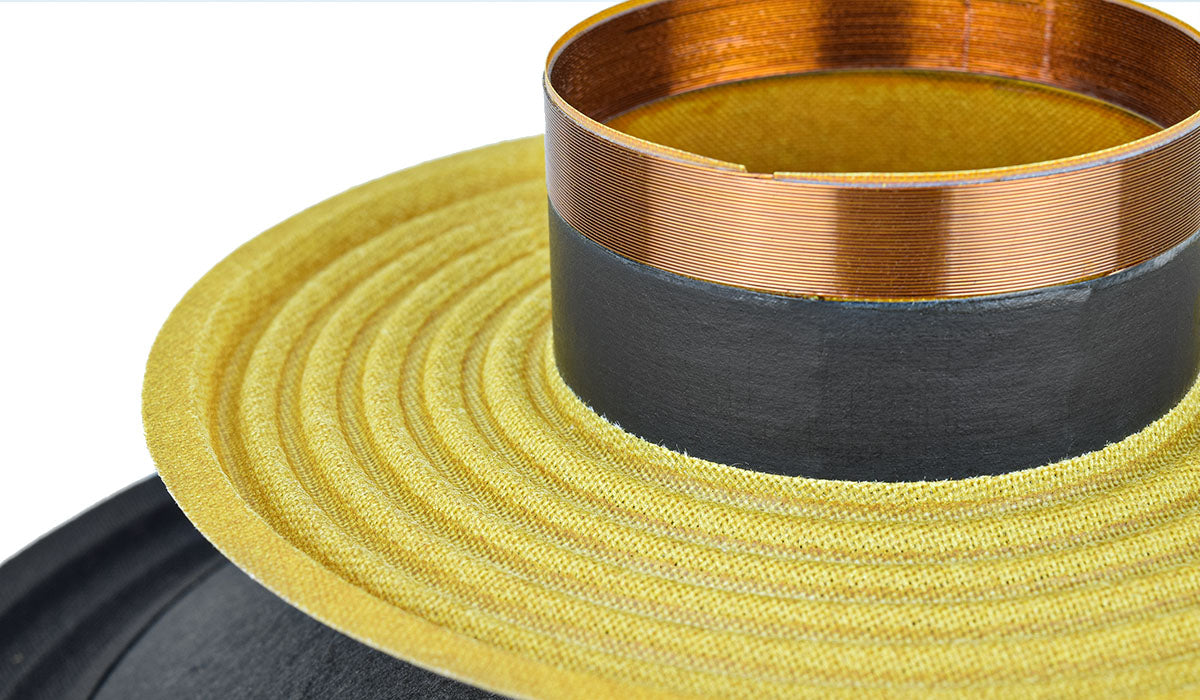

The voice coil is wound on a 2.5″ glass fiber with aluminum wire keeping weight to a minimum for an incredibly quick transient response. Engineered with 11 mm of winding depth, this inside/outside voice coil provides excellent thermal and mechanical durability.

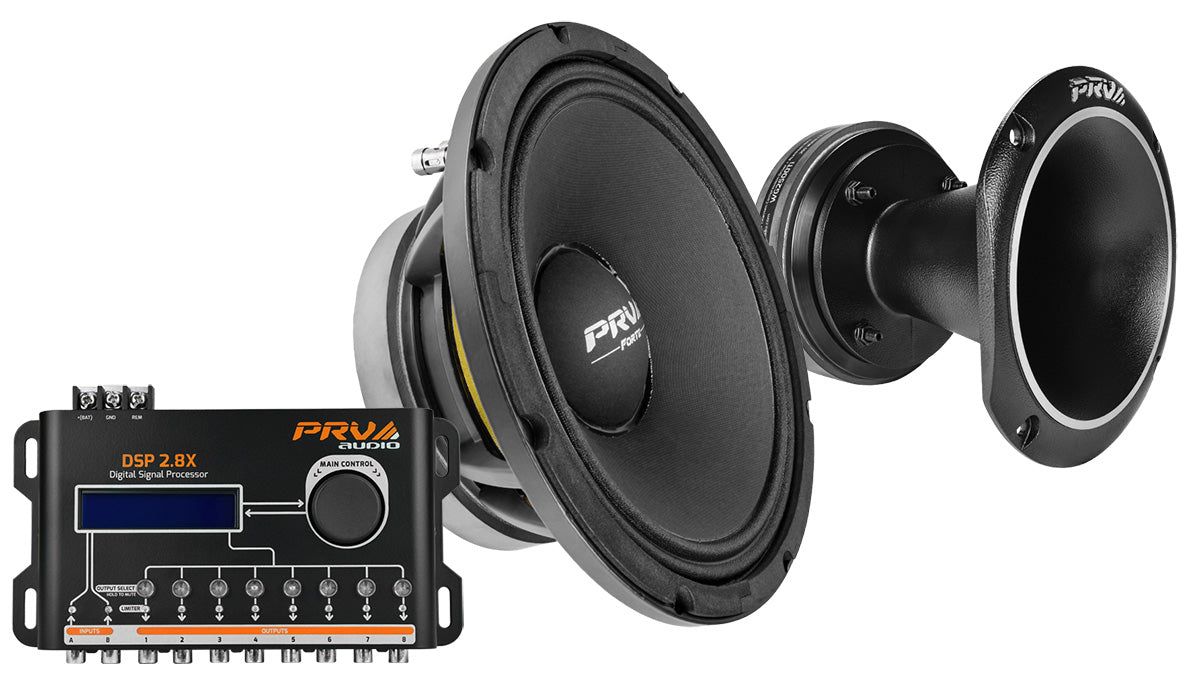

Popular Combination with the 10MB800FT is the WG2500Ti Titanium Compression Driver – with Our DSP 2.8x ( digital sound processor ) the PRO Audio On Wheels systems can easily tune both components to blend in together with the following settings:

10MB800FT – High Pass Filter HPF 95 Hz BT18 Filter to Low Pass Filter LPF 1800 Hz BT12  Following the compression driver from 1200Hz all way to 17,000Hz

Recommended system package 8x 10MB800FT + 4x WG2500Ti

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 10″ (254 mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 400 Watts
  • Program Power*** 800 Watts
  • Sensitivity 2.83V at 1m99 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 120 Hz** **12db Per Octave Crossover
  • Frequency Response at -10dB 65 – 6,500 Hz
  • Voice Coil Diameter 2.5″ (65 mm)
  • Voice Coil Wire CCAW
  • Voice Coil Winding Depth 11.0 mm
  • Former Material Glass Fiber
  • Magnetic Gap Depth 8.0 mm
  • Frame Material Die Cast Aluminum

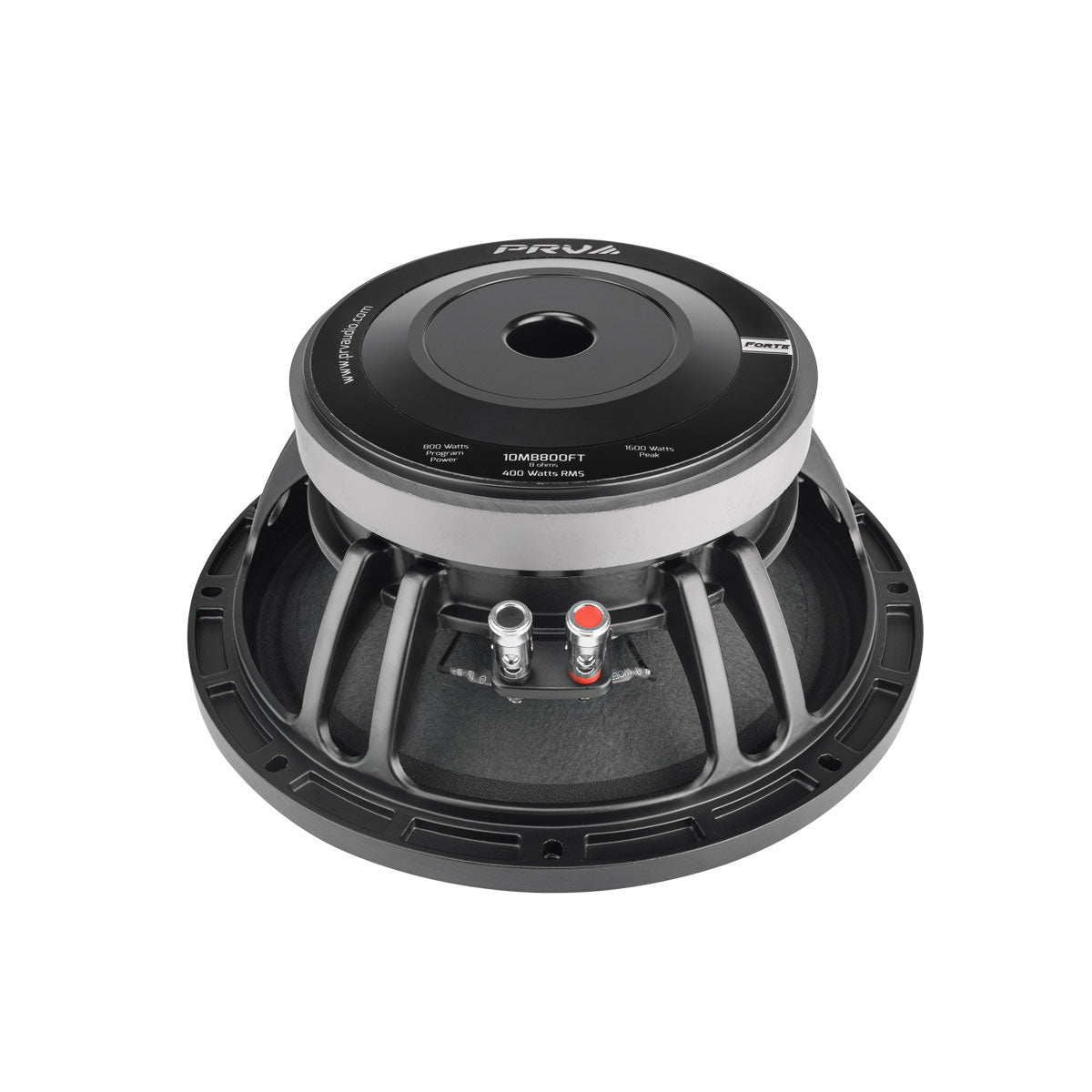

  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 36.73 l
  • Excursion (mathematical)**
    • Xmax
    • 3.50 mm
  • Free Air Resonance
    • Fs
    • 64.72 Hz
  • Mechanical Factor
    • Qms
    • 15.39
  • Electrical Factor
    • Qes
    • 0.33
  • Total Factor
    • Qts
    • 0.32
  • Cone Area
    • Sd
    • 380 cm²
  • Mechanical Mass
    • Mms
    • 33.20 g
  • BI Factor
    • Bl
    • 14.39 Tm
  • Dc Resistance
    • Re
    • 5.1 Ohm
  • Inductance
    • Le
    • 0.40 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 29.01 g
  • Mechanical Compliance
    • Cms
    • 0.182 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV 10MB800FT Midbass DATASHEET Download
  • Overall Depth 4.68” (119 mm)
  • Mounting Depth 4.09” (104 mm)
  • Overall Diameter 10.25” (260.5 mm)
  • Front Mount Baffle Cutout 9.01” (229 mm)
  • Net Weight 11.01 Lbs (5.0 kg)
  • Shipping Weight 11.90 Lbs (5.4 kg)
  • Carton Dimensions WxLxH 10.82 ” x 10.82 ” x 5.12” (275 x 275 x 130 mm)
PRV 10MB800FT Midbass DATASHEET Download

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

  • Rubber Cement Speaker Glue

    Rubber Cement Speaker Glue

    Rubber Cement Speaker Glue

    BLACK CEMENT GLUE

    Price:
    $19.99
    $19.99
    Out of Stock

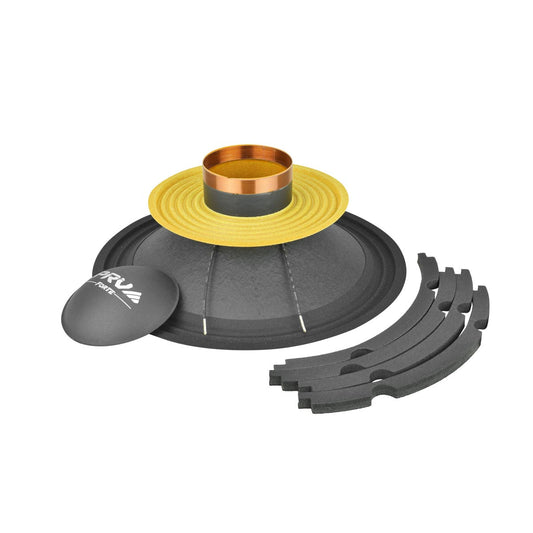

  • PRV RK10MB800FT
