PRV RS69-CX (PAIR) Fullrange

PRV RS69-CX (PAIR) Fullrange

SKU: RS69-CX
New

PRV RS69-CX (PAIR) Fullrange

PRV RS69-CX (PAIR) Fullrange

SKU: RS69-CX

$99.91
$119.89

In stock

6x9" Fullrange - 4 Ohm

2-Way Coaxial

90 dB - 100 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

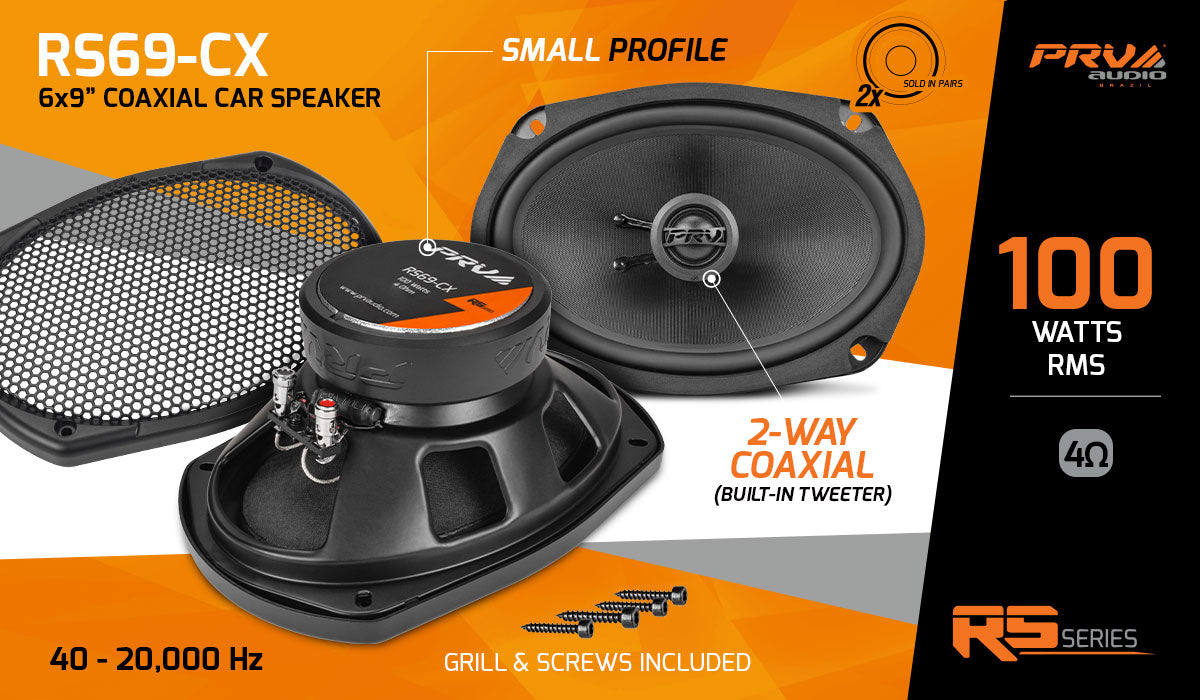

Meet our premium 6×9” car audio 2-way coaxial RS69-CX. Focused on high-performance, these speakers were engineered and designed as the perfect solution for audiophiles looking to elevate their car audio system’s sound quality.

The RS Series brings new Subwoofers, amplifiers and car speakers with high-fidelity sound and performance for your everyday car system, specifically designed and developed for the car audio market.

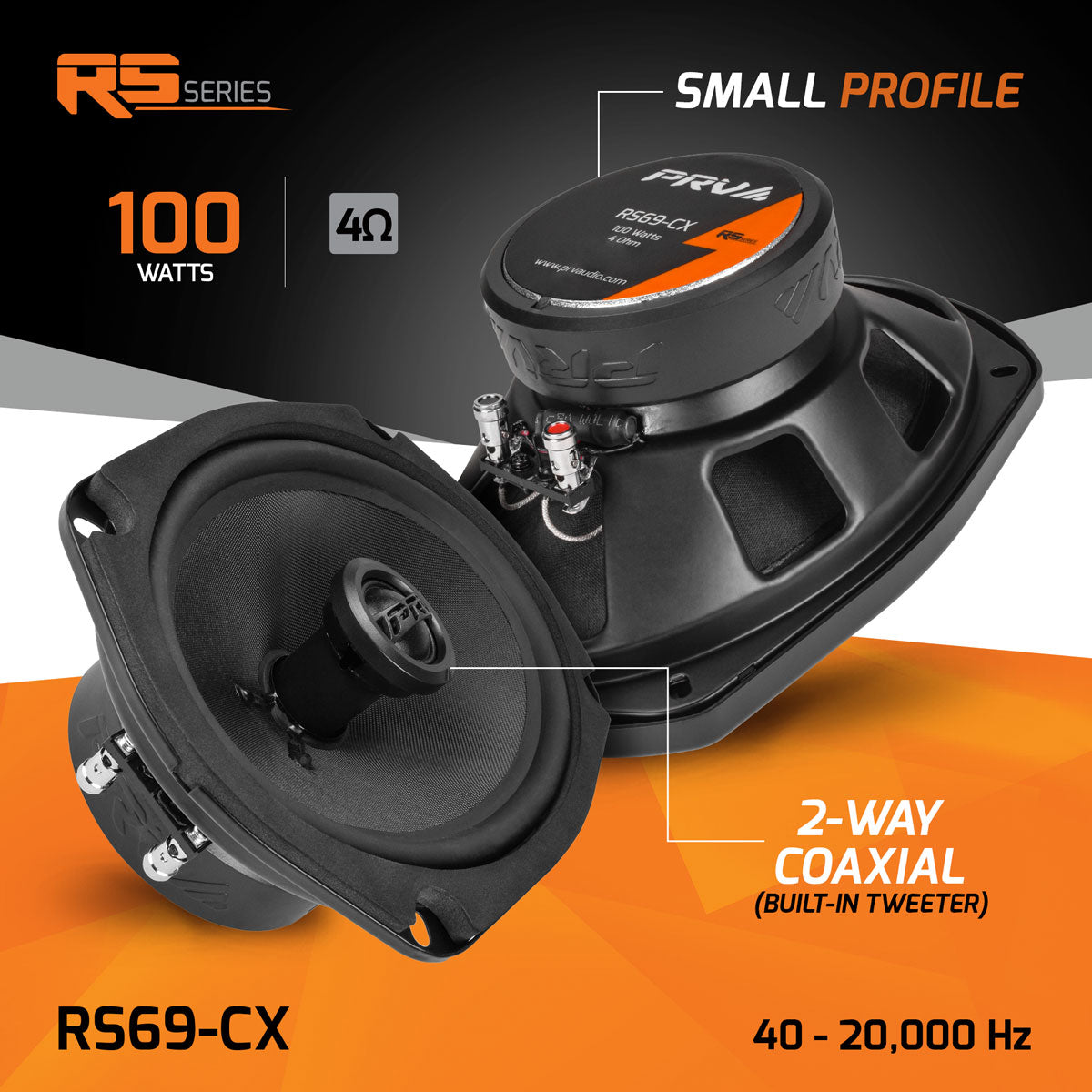

  • Small Profile – Designed for easier installation with its standard frame size that fits many OEM door speaker locations. 4 Ohm Impedance.

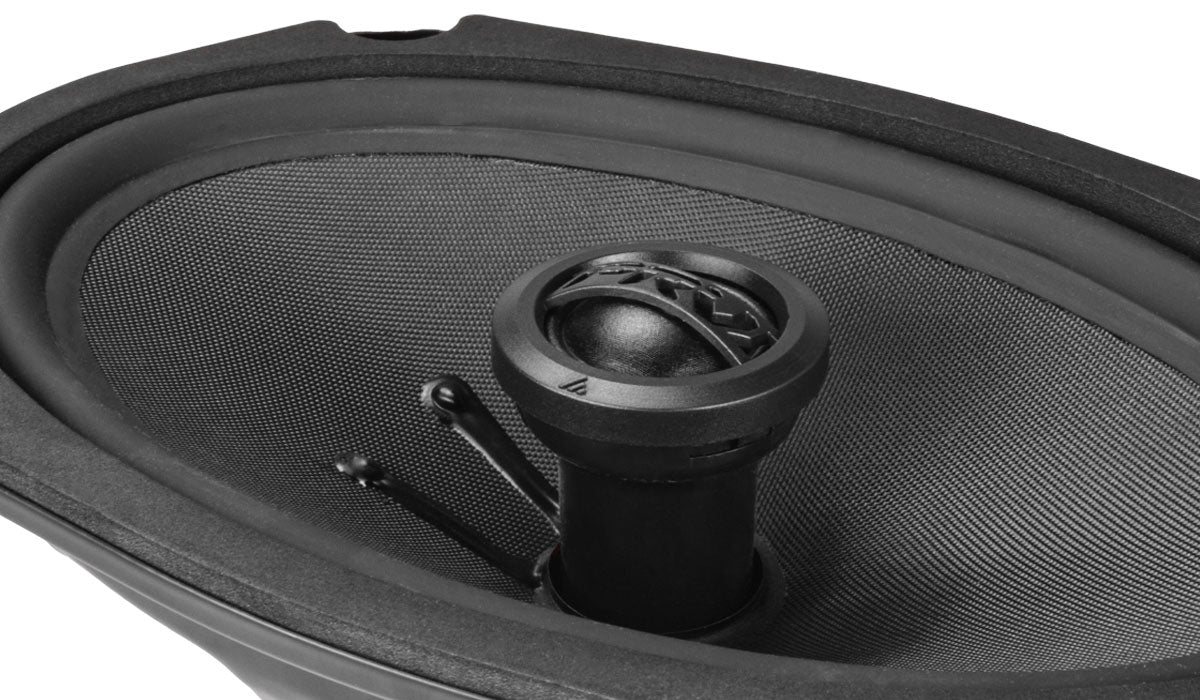

  • 2-Way Coaxial – Built-in soft dome tweeter with in-line capacitor attenuates perfectly with the speaker, delivering rich, detailed sound.

  • These 6×9″ coaxial speakers utilize a high quality silk dome tweeter and woofer, providing more accurate audio at 90dB sensitivity, superior to most stock car audio speakers.

  • The RS69-CX 2-way coaxial does not require a large amount of power to operate. They get loud extremely easy with 200 watts RMS per pair making it suitable for use with the compact QS400.4 2 Ohm.

RS69-CX is designed for easy installation with a standard 6×9″ frame size that fits many OEM door speaker locations.

Although this coaxial was designed to be powered by an amplifier, it can also be used in a factory or aftermarket radio for good sound quality and better clarity over OEM speakers.

The RS69-CX will immerse you in the music no matter where you are in your vehicle. Upgrade today and hear the difference!

This 2-Way Car Coaxial speaker is an excellent upgrade for listeners wanting to go beyond the standard factory upgrade. With frequency responses ranging from 40Hz – 20,000Hz it delivers sound across the entire frequency spectrum.

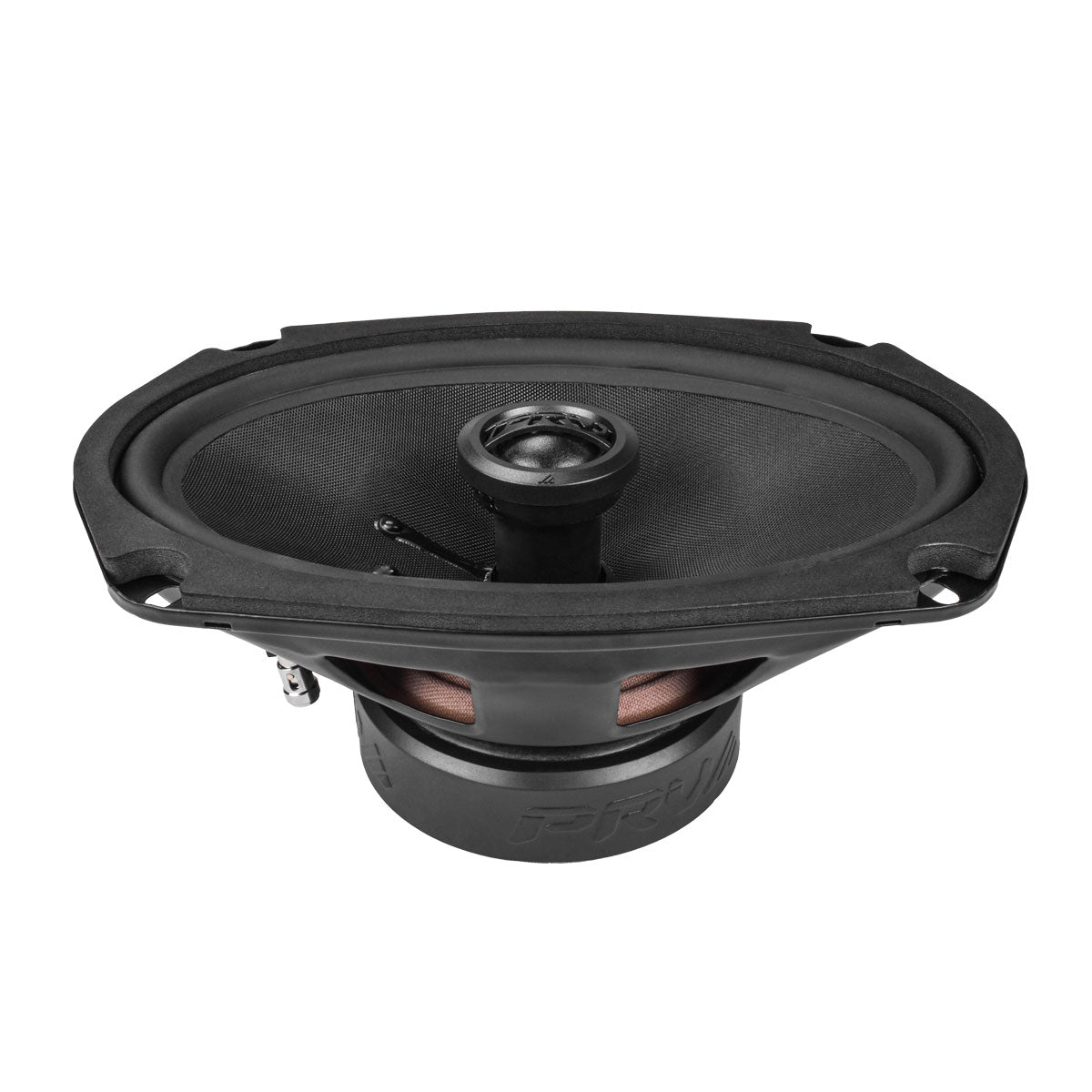

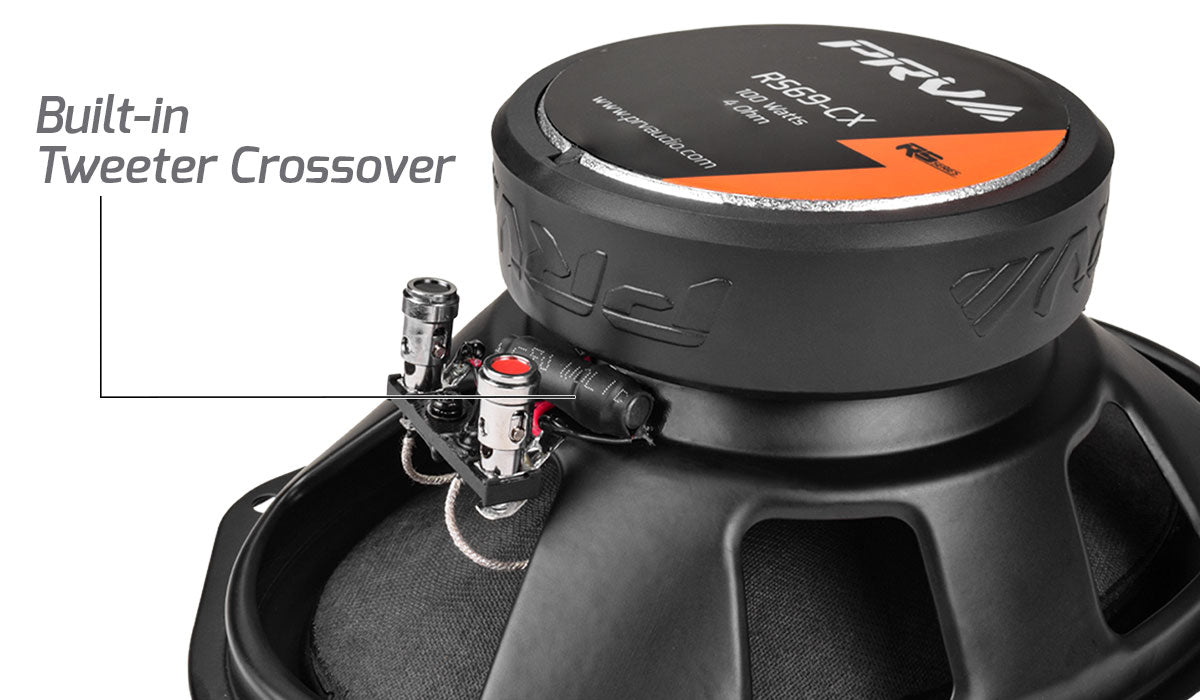

Designed with a 6×9” woofer and a 1” Neodymium Tweeter with built-in crossover, the different components are each responsible for reproducing a specific frequency range, all connected from a single push-terminal, making for an easy installation without having to tune two separate components.

Built to perform and able to handle 100 Watts RMS each, these car speakers are the most ideal OEM replacement.

If your car has 4x 6.5″ speakers or just 2x 6.5″ + 2x 6×9″ you will only need one amplifier to power these speakers to reach high output levels.

The compact QS400.4 2 Ohm amplifier is able to power all 4 speakers, one per channel, getting them extremely loud with a small amount of power.

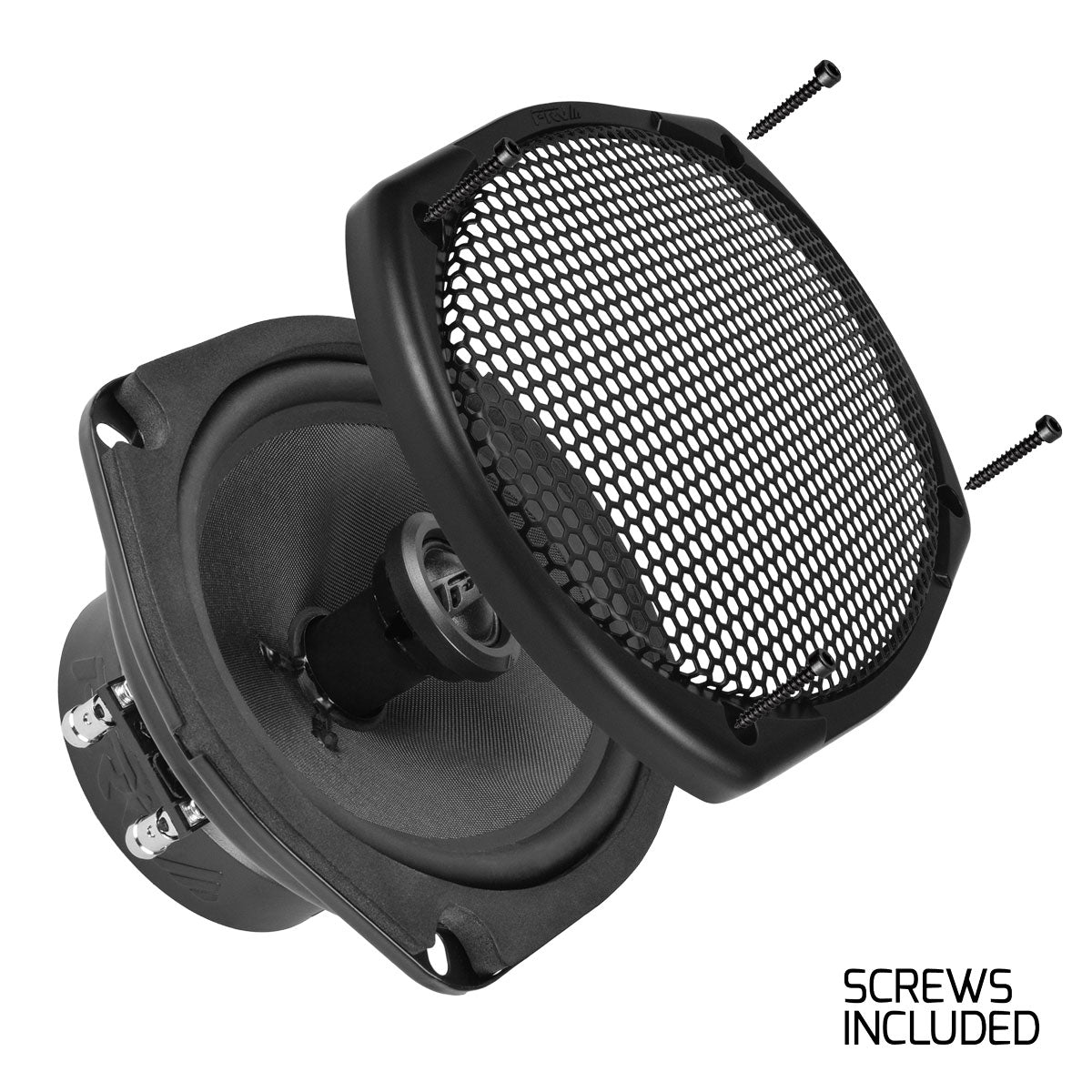

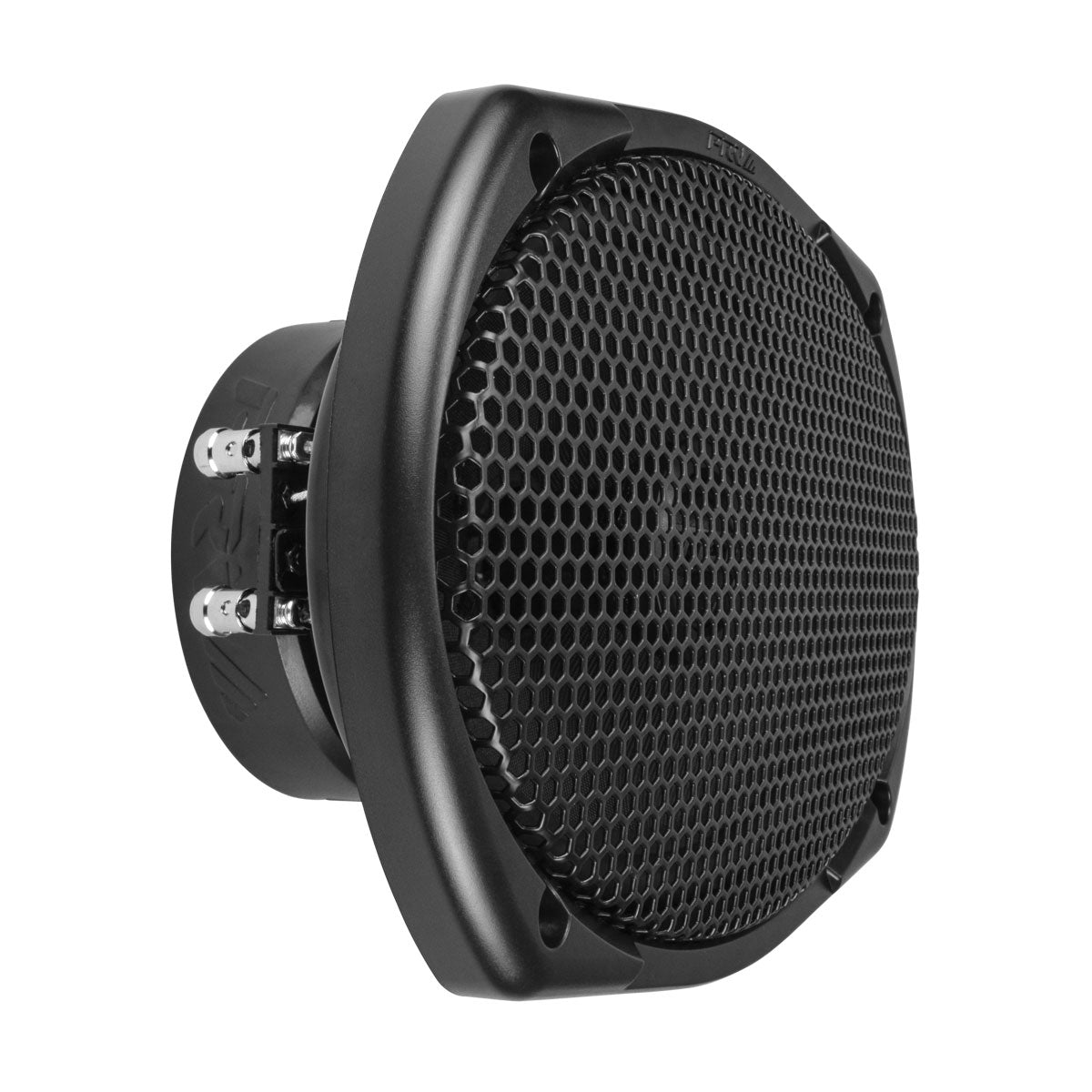

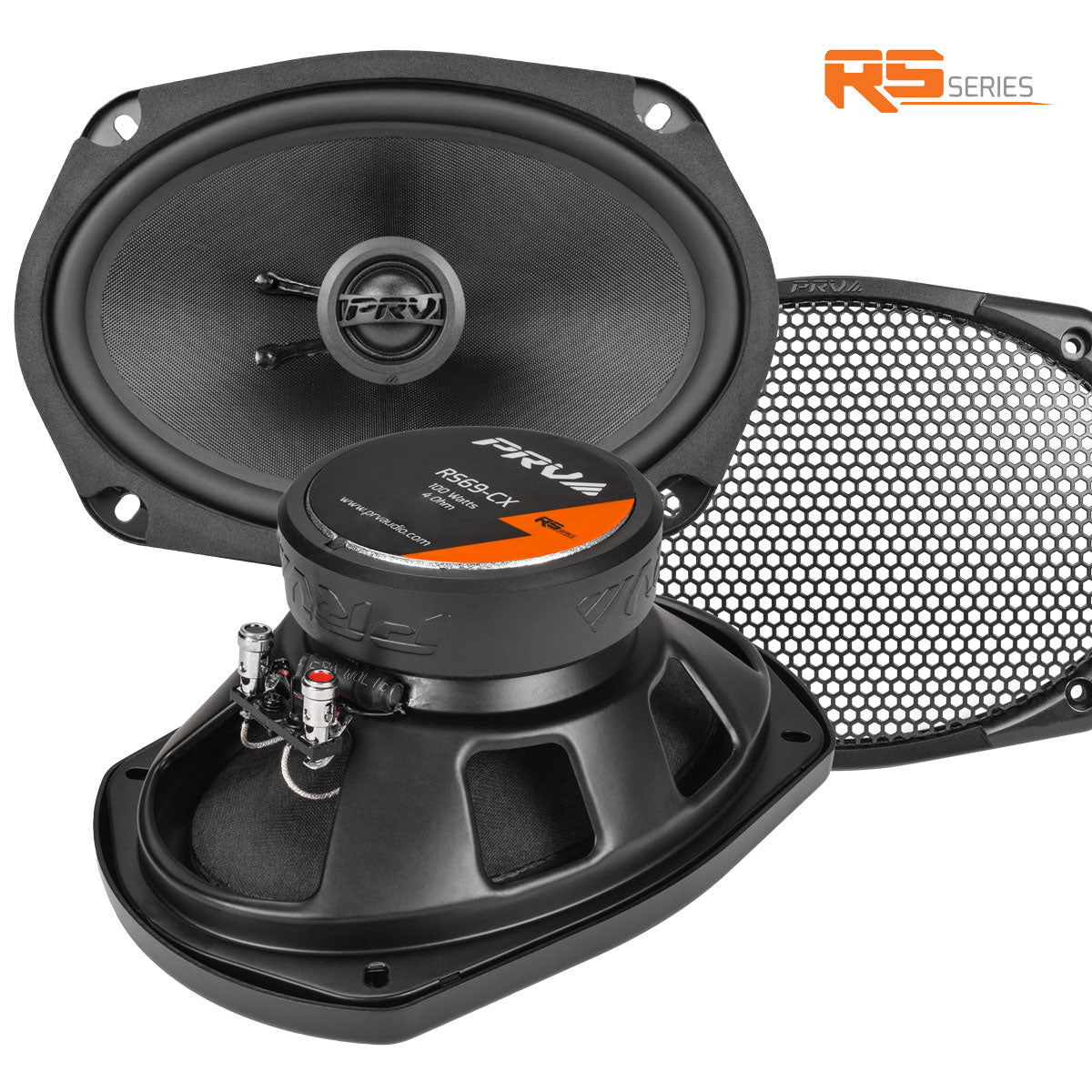

PRV 6×9″ 2-Way Coaxial Car Speaker RS69-CX 200 Watts RSM / 4 Ohm PAIR – Built Neodymium Tweeters with Grill Included

Technical Details

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Nominal Diameter 6X9"
  • Nominal Impedance 4 Ohm
  • Continuous Program Power (RMS)** 100 Watts
  • Max Peak Power*** 200 Watts
  • Sensitivity 2.83V at 1m90 dB
  • Frequency Response at -10dB 40 - 20,000 Hz
  • Voice Coil Diameter 1.2" (30 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth10.0 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.0 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 23.4 l
  • Excursion (mathematical)**
    • Xmax
    • 3.75 mm
  • Free Air Resonance
    • Fs
    • 58.9 Hz
  • Mechanical Factor
    • Qms
    • 11.34
  • Electrical Factor
    • Qes
    • 0.83
  • Total Factor
    • Qts
    • 0.77
  • Cone Area
    • Sd
    • 222 cm²
  • Mechanical Mass
    • Mms
    • 21.4 g
  • BI Factor
    • Bl
    • 5.79 Tm
  • Dc Resistance
    • Re
    • 3.5 Ohm
  • Inductance
    • Le
    • 0.59 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 19.5 g
  • Mechanical Compliance
    • Cms
    • 0.34 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

PRV RS69-CX (PAIR) Fullrange DATASHEET Download

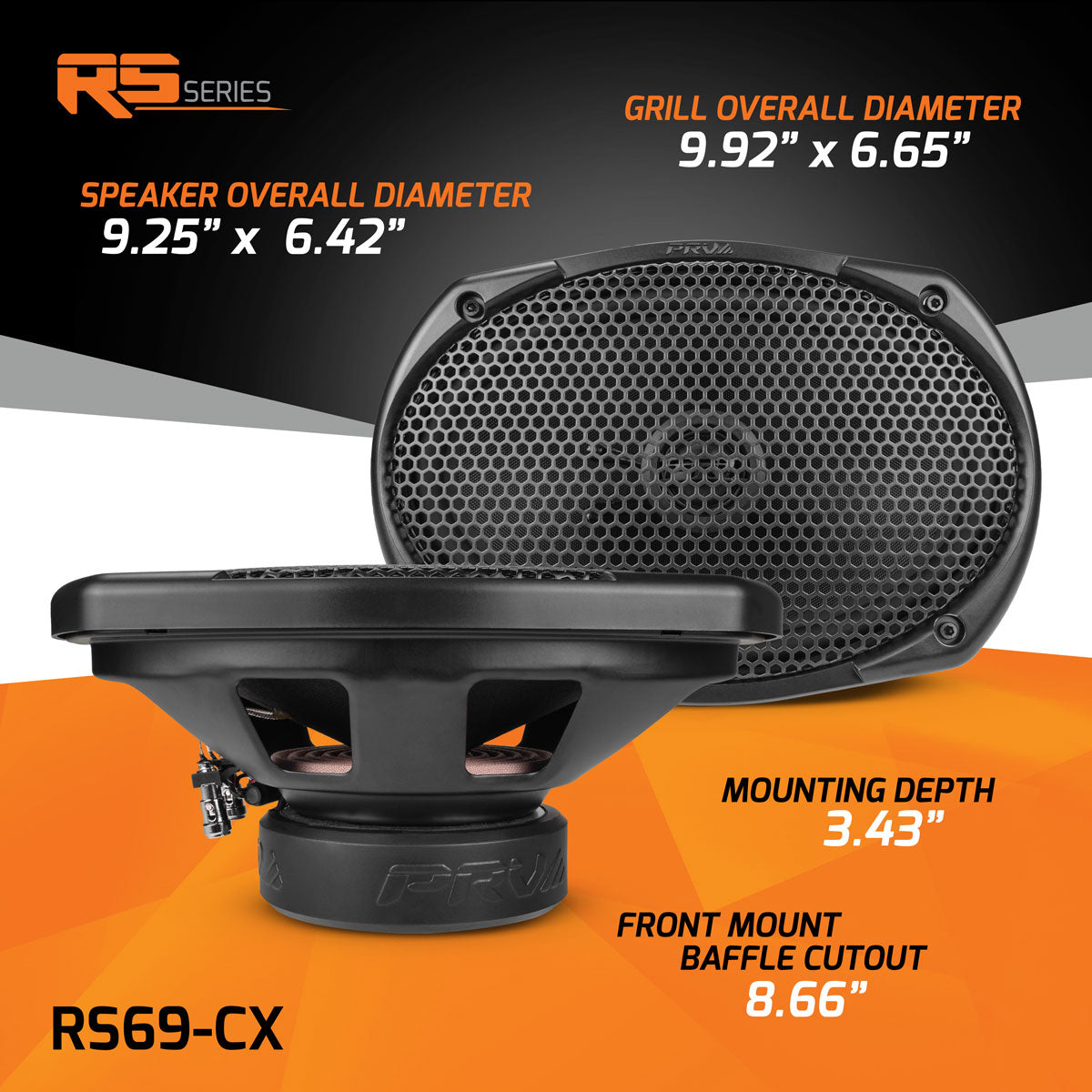

  • Overall Depth 4.50” (114.3 mm) with grill
  • Mounting Depth 3.53” (89.8 mm)
  • Overall Diameter 9.26”x6.40” (235.2x162.6 mm)
  • Front Mount Baffle Cutout 8.66”x5.95” (220x151 mm)
  • Net Weight 3.65 Lbs (1.65 kg)
  • Shipping Weight 9.80 Lbs (4.45 kg)

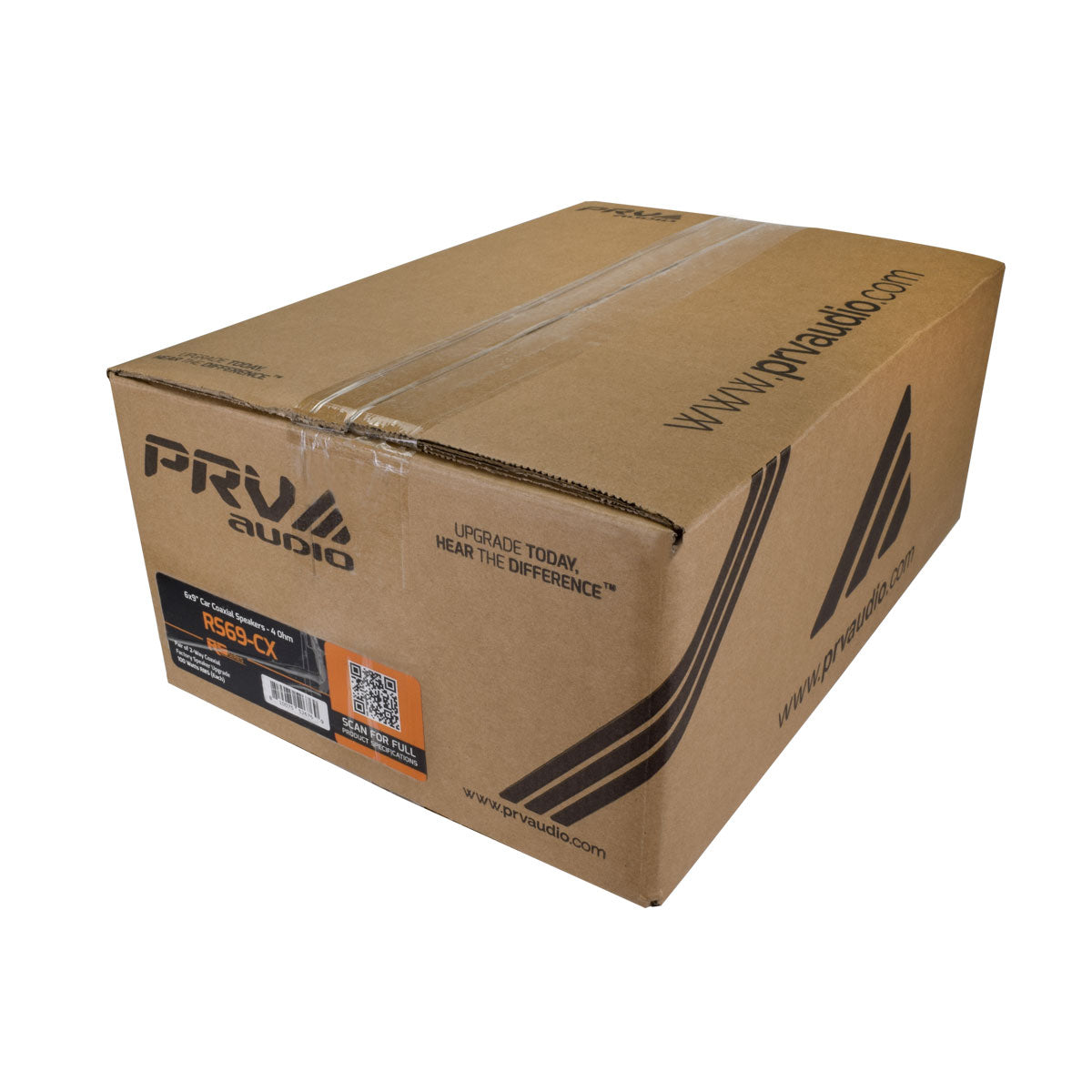

  • Carton Dimensions WxLxH 15.10" x 10.75" x 6.62” (383 x 273 x 168 mm)
