PRV 6MB200 v2 Midbass

PRV 6MB200 v2 Midbass

SKU: SKU:6MB200 v2

Skip to product information

PRV 6MB200 v2 Midbass

PRV 6MB200 v2 Midbass

SKU: SKU:6MB200 v2

  • 6.5" Midbass - 8 Ohm
  • Ferrite Magnet
  • 93.5 dB - 200 Watts
$29.91
$37.39

In stock

  • 6.5" Midbass - 8 Ohm
  • Ferrite Magnet
  • 93.5 dB - 200 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

The PRV Pro Audio Loudspeaker, 6MB200 v2 midbass woofer, offers outstanding durability and a smooth punch of mid bass for small enclosures. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even home studio monitors.

The 6MB200-v2 now has more extended mid range response, up to 6.5 kHz compared to its previous model, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its light weight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio applications.

  • Nominal Impedance: 8 Ohm
  • Rated AES Power Handling (RMS): 100 Watts
  • Program Power: 200 Watts
  • Sensitivity (1W/1m): 93.5 dB
  • Voice Coil Diameter: 1.5″

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Diameter 6″ (152 mm)
  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 100 Watts
  • Program Power*** 200 Watts
  • Sensitivity 2.83V at 1m93.5 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 125 Hz** **12db Per Octave Crossover

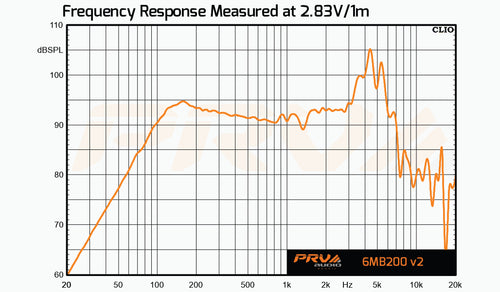

  • Frequency Response at -10dB 125 – 6,500 Hz
  • Voice Coil Diameter 1.5″ (38 mm)
  • Voice Coil Wire Copper
  • Voice Coil Winding Depth12.5 mm
  • Former Material Kapton
  • Magnetic Gap Depth 5.8 mm
  • Frame Material Stamped Steel
  • Magnet Type Ferrite

THIELE-SMALL PARAMETERS

  • Equivalent Volume
    • Vas
    • 4.13 l
  • Excursion (mathematical)**
    • Xmax
    • 4.80 mm
  • Free Air Resonance
    • Fs
    • 123.28 Hz
  • Mechanical Factor
    • Qms
    • 20.81
  • Electrical Factor
    • Qes
    • 1.20
  • Total Factor
    • Qts
    • 1.13
  • Cone Area
    • Sd
    • 154 cm²
  • Mechanical Mass
    • Mms
    • 11.57 g
  • BI Factor
    • Bl
    • 7.05 Tm
  • Dc Resistance
    • Re
    • 6.7 Ohm
  • Inductance
    • Le
    • 0.25 mH at 1 kHz
  • Mechanical Mass Without Air
    • Mmd
    • 10.55 g
  • Mechanical Compliance
    • Cms
    • 0.144 mm/N
***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

  • Overall Depth 2.91” (74 mm)
  • Overall Diameter 6.53” (166 mm)
  • Front Mount Baffle Cutout 5.63” (143 mm)
  • Net Weight 3.30 Lbs (1.50 kg)
  • Shipping Weight 3.62 Lbs (1.64 kg)
  • Carton Dimensions WxLxH 7.17” x 7.17” x 4.13” (182 x 182 x 105 mm)
