PRV WGP14-50 GREY DUAL TONE Waveguide

PRV WGP14-50 GREY DUAL TONE Waveguide

SKU: WGP14-50 GREY DUAL TONE

PRV WGP14-50 GREY DUAL TONE Waveguide

PRV WGP14-50 GREY DUAL TONE Waveguide

SKU: WGP14-50 GREY DUAL TONE

  • 2" Exit Bolt-On
  • 5.02" Mounting Depth
  • Grey Dual Tone
$25.91
$32.39

In stock
  • 2" Exit Bolt-On
  • 5.02" Mounting Depth
  • Grey Dual Tone

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Give your Compression Driver  an unique LOOK with WGP14-50 DUAL TONE finish horns. With a 2″ throat and 45° x 45° dispersion, this is perfect for applications where a tight coverage pattern is needed. Its new Dual Tone finish is composed of a matte lip and chrome finish inside giving an unique finishing, making this new series the most unique horn in the car audio market

  • 2″ throat with standard 4-bolt mounting pattern
  • Non-resonant reinforced plastic construction
  • Grey Color with Chrome lid with matte UV resistant finish
  • 45° x 45° Nominal Coverage with Limit frequency of 600 Hz

This conical waveguide short throat design, will surprisingly increase output on any compression driver, giving it a sound amplification over 21 dB.

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 2” (50.8 mm)
  • Mounting Type: Bolt-on
  • Hole Dimensions: 0.31″ (8 mm)
  • Bolt Circle: 4″ (101.6 mm)
  • Nominal Coverage:
  • Horizontal: 45°
  • Vertical: 45°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Several Colors

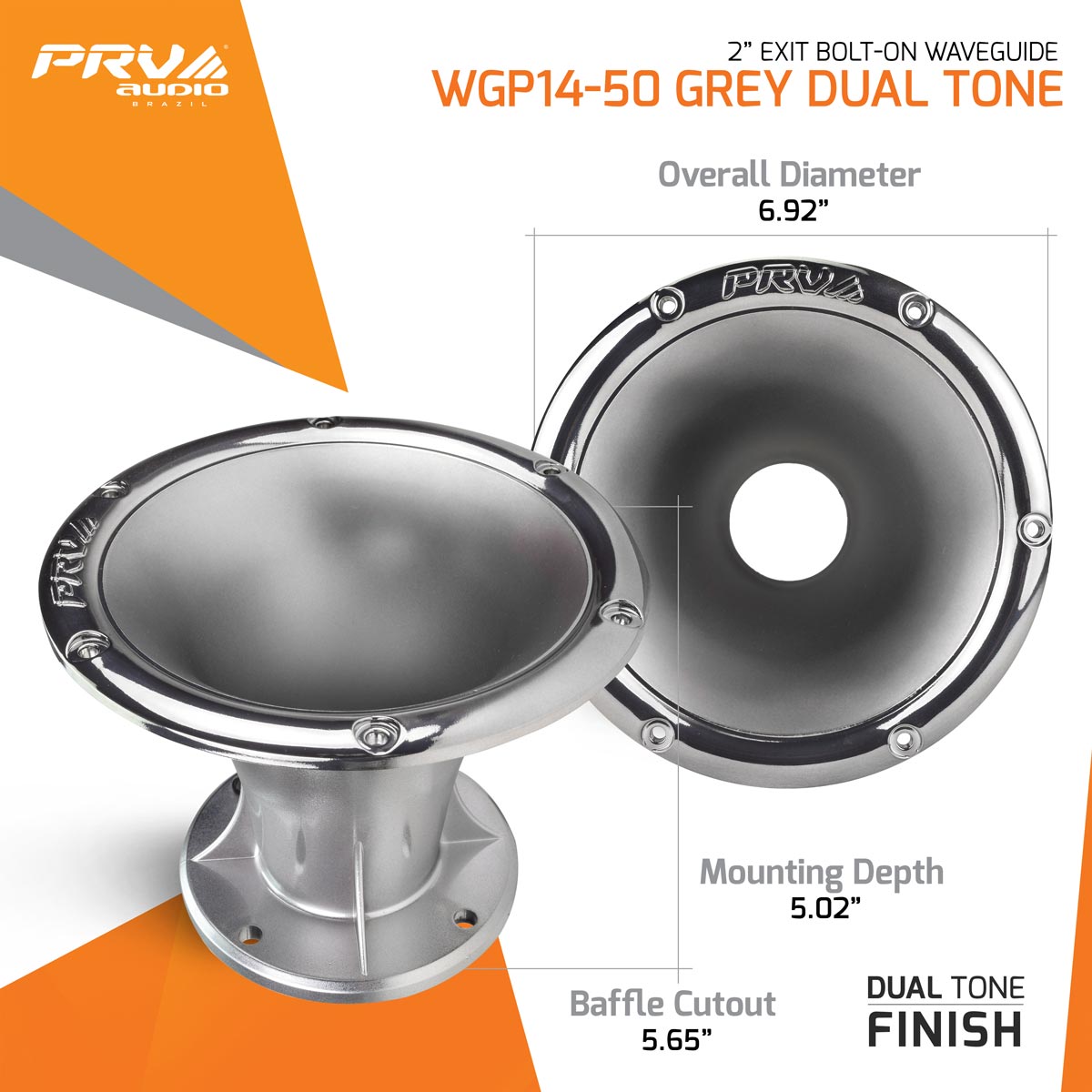

  • Dimensions:
  • Height: 6.92″ (175.7 mm)
  • Width: 6.92″ (175.7 mm)
  • Depth: 5.30″ (134.6 mm)
  • Mounting Depth: 5.02″ (127.6 mm)
  • Baffle Cutout:
  • Diameter Circle: 5.75″ (146 mm)
  • Net weight: 0.51 lb (0.23 kg)
