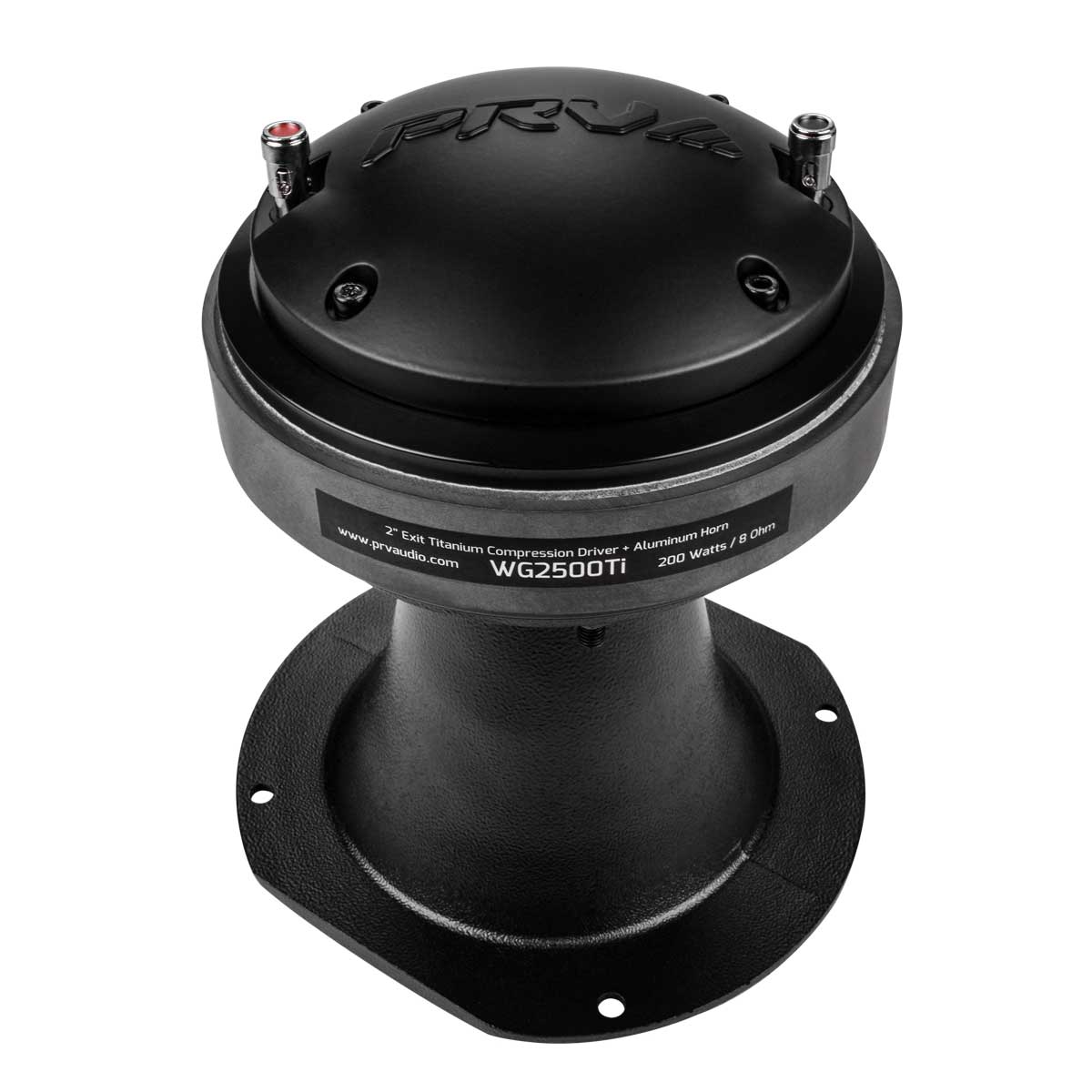

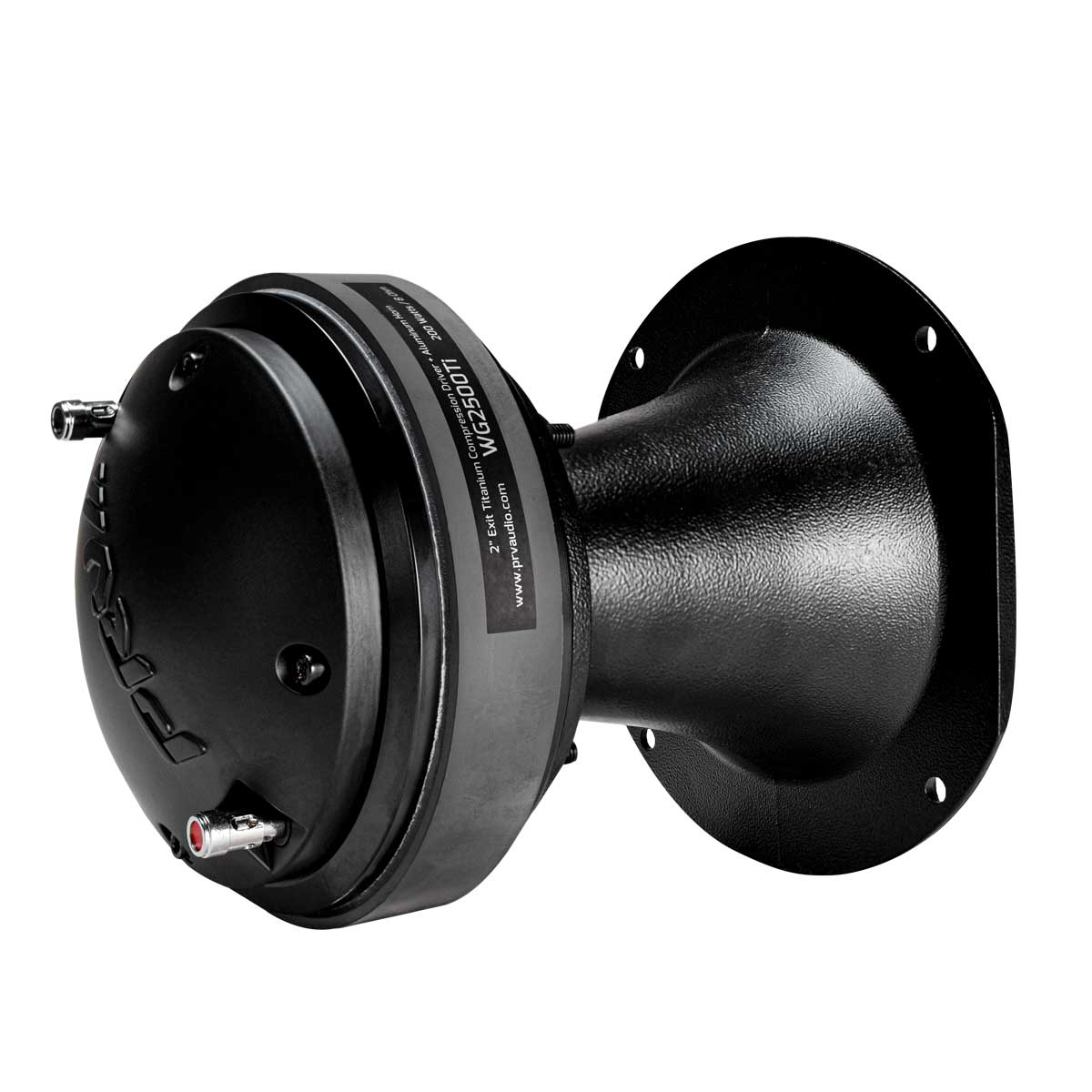

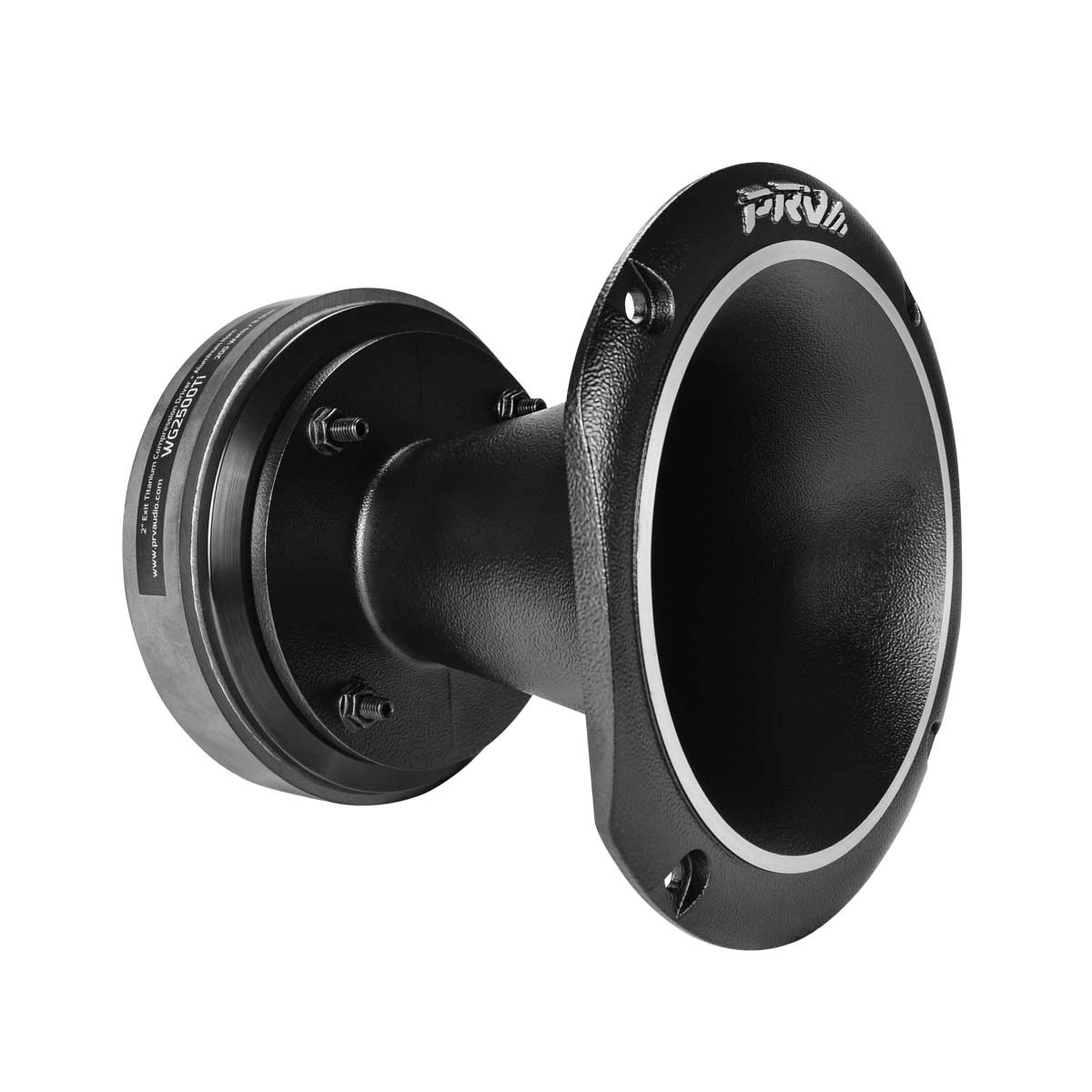

PRV WG2500Ti Driver + Horn Combo

PRV WG2500Ti Driver + Horn Combo

SKU: SKU:WG2500Ti

  • 2" Highs Horn Driver
  • Titanium Diaphragm
  • 107 dB – 200 Watts

$89.91
$112.39

In stock

  • 2" Highs Horn Driver
  • Titanium Diaphragm
  • 107 dB – 200 Watts

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

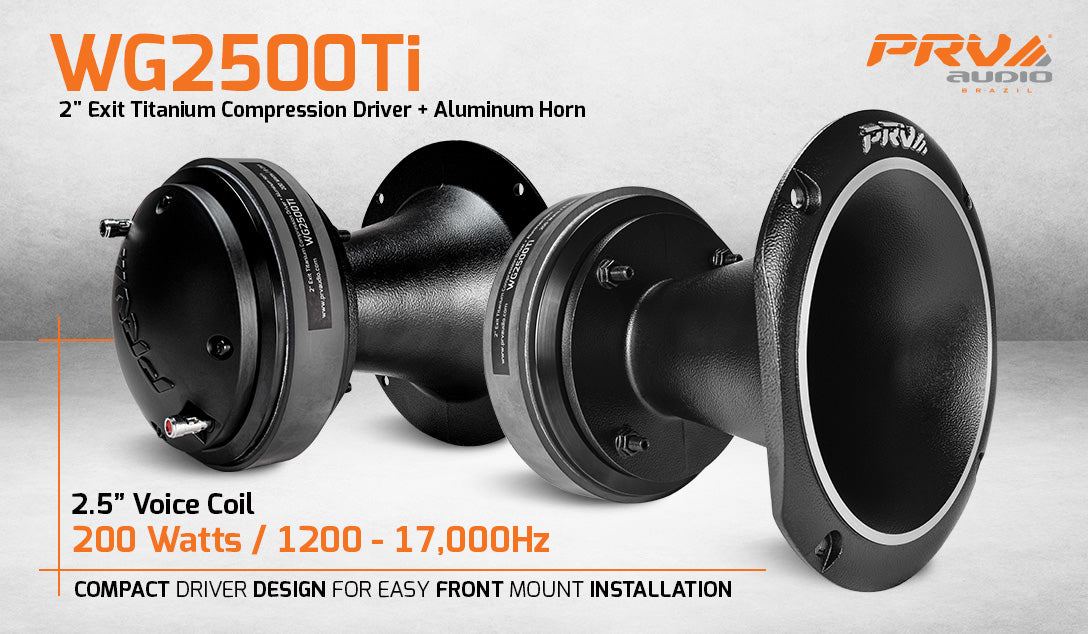

The WG2500Ti is a unique combo featuring a Titanium Pro Audio compression driver with a 2” exit waveguide that features a special 2.5” size voice coil allowing accurate reproduction through 17kHz. The pure titanium diaphragm supported by a Kapton former results in a light weight, yet durable design and offers a more natural sound for high SPL applications.

  • 2″ Exit Titanium diaphragm with 2.5″ Voice coil
  • Type: Combo – Driver + Horn WG14-50CR
  • Nominal Impedance: 8 Ohm
  • 200 Watts Continuous Program Power (RMS)
  • Extremely high efficiency is perfect for high output systems

High output mobile audio enthusiasts choose the PRV Audio WG2500Ti for extreme SPL car audio competitions where the small diameter of the driver allows for front mounting, making it easy to install without having to detach the driver from the horn.

Technical Details

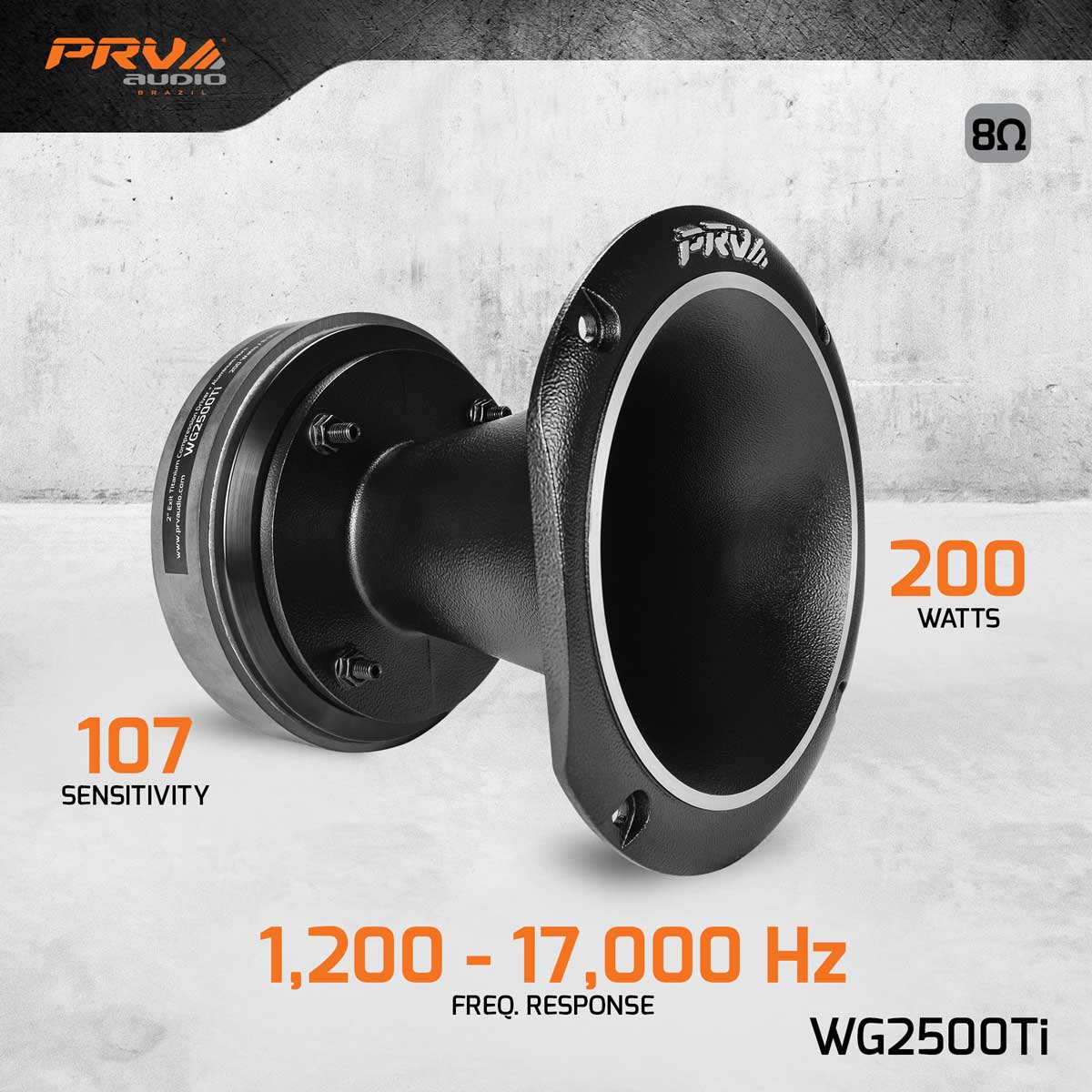

GENERAL SPECIFICATIONS

*Nominal power handling is defined as the maximum RMS power that the speaker can handle in a 2-hour test with a pink noise with 6dB of crest factor and a bandpass filter with 12db/oct tuned in its usable frequency range.

**Continuous Program Power (RMS) is the maximum power that the speaker can handle considering a regular musical program using our recommended filters, this power can be used to define the optimum amplifier power to provide a clean signal without clipping or saturation.

***Max Peak Power is the maximum power operation for the speaker, this power is allowed just for a few fractions of a second, usually found just on the peaks of the music. Keeping this power for a little longer timer will damage the speaker.

  • Exit Throat Diameter 2” (50 mm)

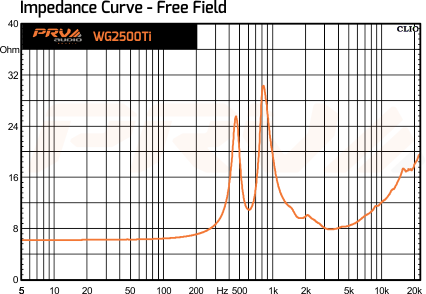

  • Nominal Impedance 8 Ohm
  • Nominal Power Handling* 100 Watts
  • Continuous Program Power (RMS)** 200 Watts
  • Max Peak Power*** 400 Watts
  • Sensitivity 2.83V at 1m107 dB
  • Recommended Hi Pass Crossover" "For Full Power Handling 1700 Hz 12db Per Octave Crossover
  • Frequency Response at -10dB 1,200 – 17,000 Hz
  • Voice Coil Diameter 2.5″ (65 mm)
  • Voice Coil Winding Depth CCAW
  • Former Material Kapton
  • Diaphragm Titanium
  • Flux Density 21.1 T
  • Magnet Type Ferrite

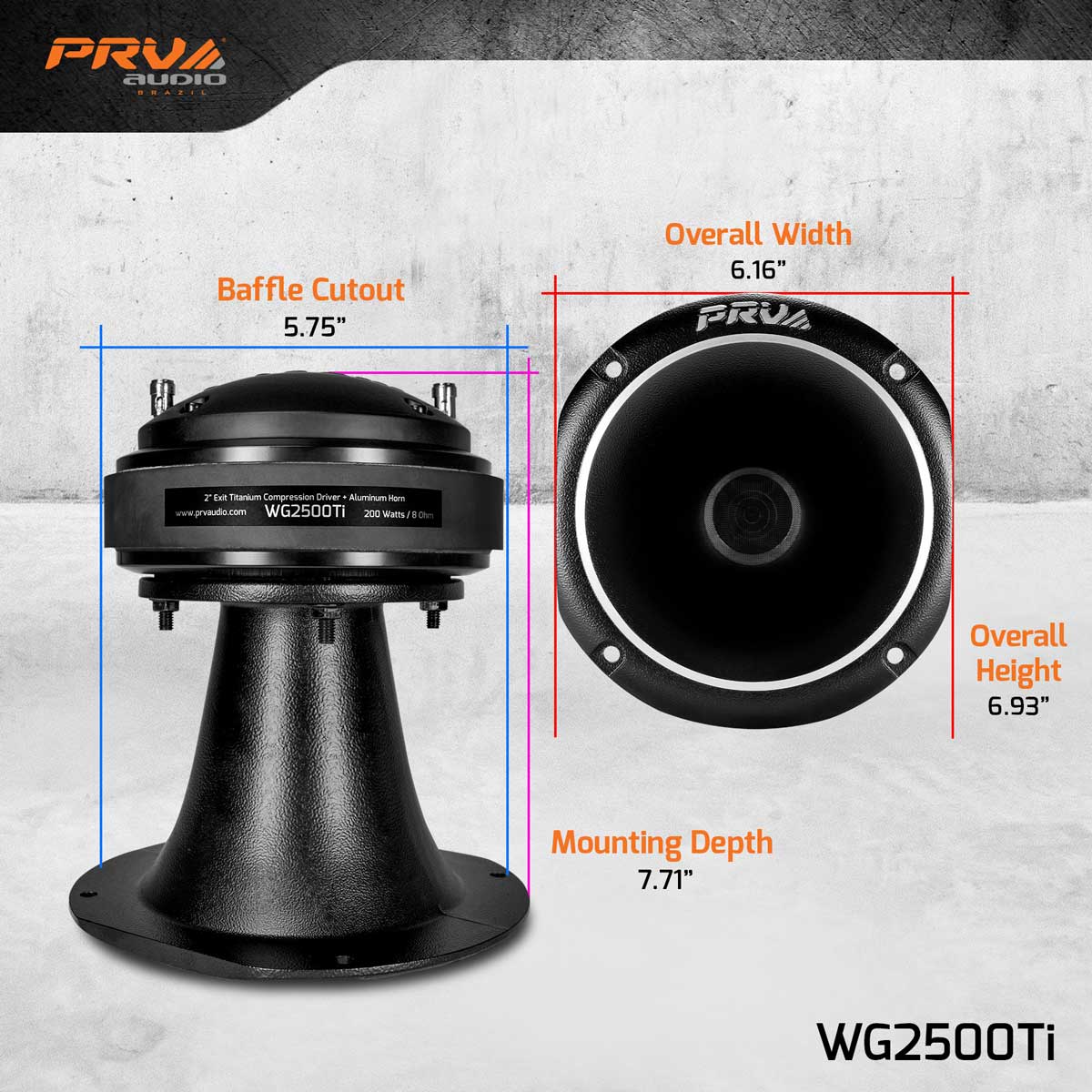

EXTRA INFO

  • Overall Depth 8.07” (205 mm)
  • Mounting Depth 7.71” (196 mm)
  • Overall Width 6.16″ (156.5 mm)
  • Overall Height 6.93″(176mm)

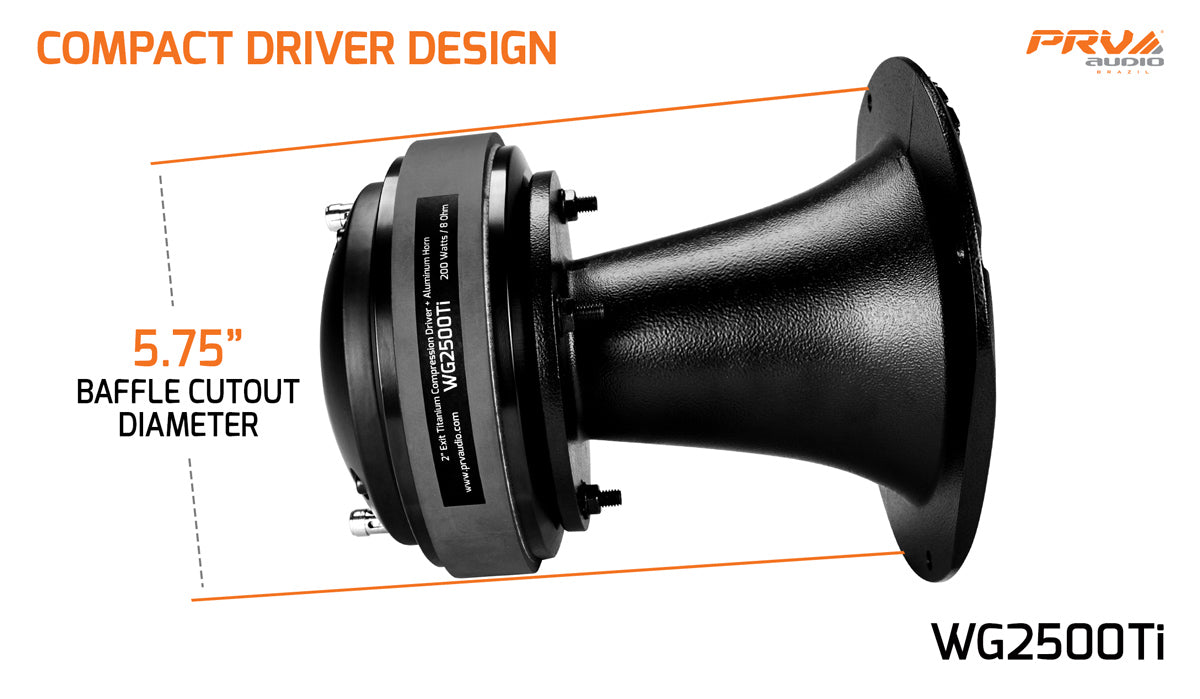

  • Front Mount Baffle Cutout 5.75” (146 mm)
  • Net Weight 10.32lbs (4.68 kg)
  • Shipping Weight 11.02lbs (5.00 kg)
  • Carton Dimensions WxLxH 8.26” x 7.58” x 9.45” (210 x 190 x 240 mm)

WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov View our Return Policy.

Repair Parts

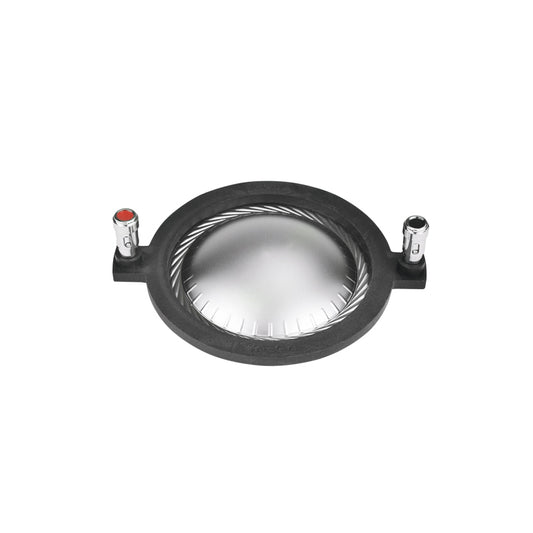

  • PRV RPD2500Ti

    RPD2500Ti

    Price:
    Regular price $29.91
    Regular price $37.39 Sale price $29.91
