PRV WGP14-25 GREEN CR-S Waveguide

PRV WGP14-25 GREEN CR-S Waveguide

SKU: WGP14-25 GREEN CR-S

PRV WGP14-25 GREEN CR-S Waveguide

PRV WGP14-25 GREEN CR-S Waveguide

SKU: WGP14-25 GREEN CR-S

  • 1″ Exit Screw-On Green
  • 3.98″ Mounting Depth
  • Green Chrome Finish
$14.91
$18.64

In stock
  • 1″ Exit Screw-On Green
  • 3.98″ Mounting Depth
  • Green Chrome Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

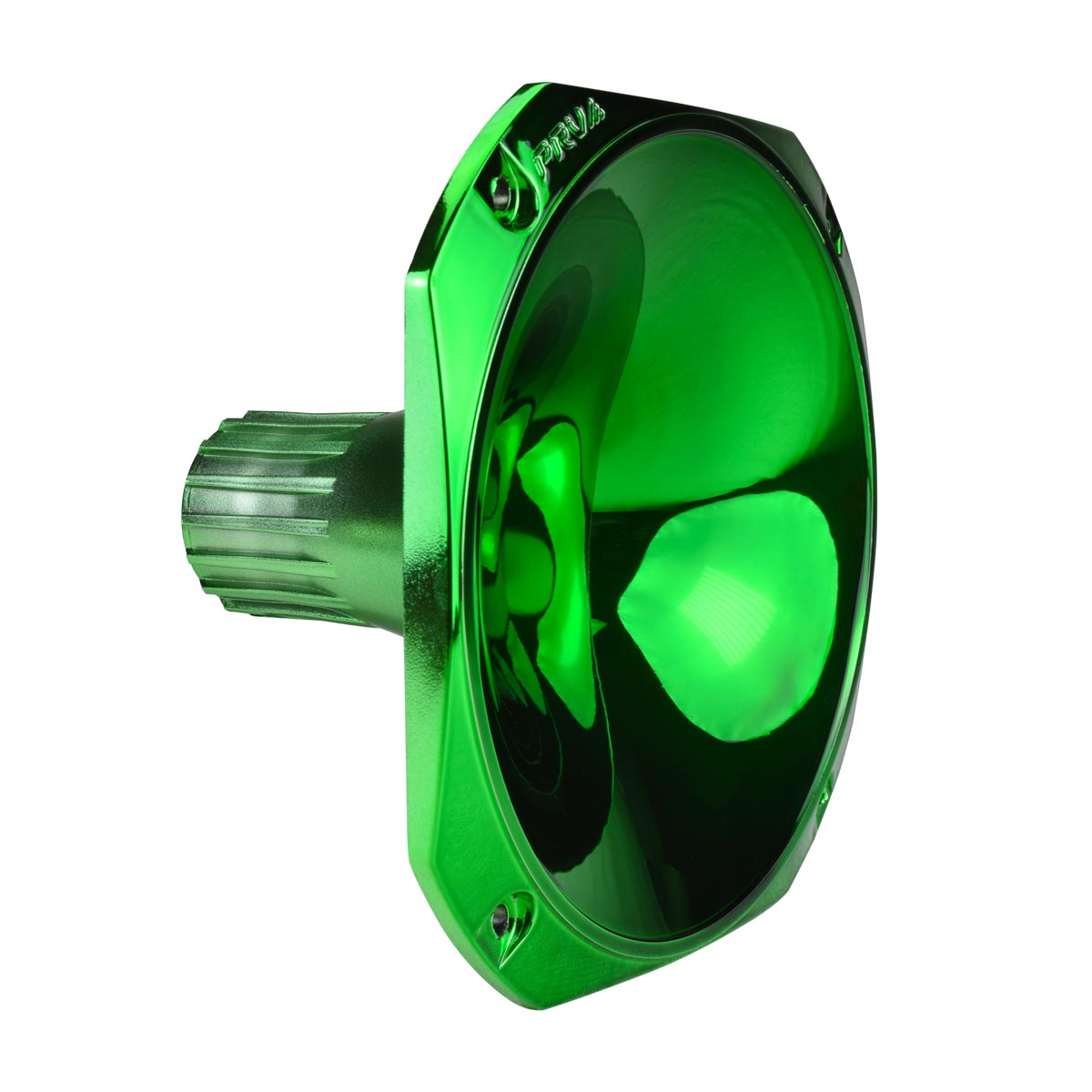

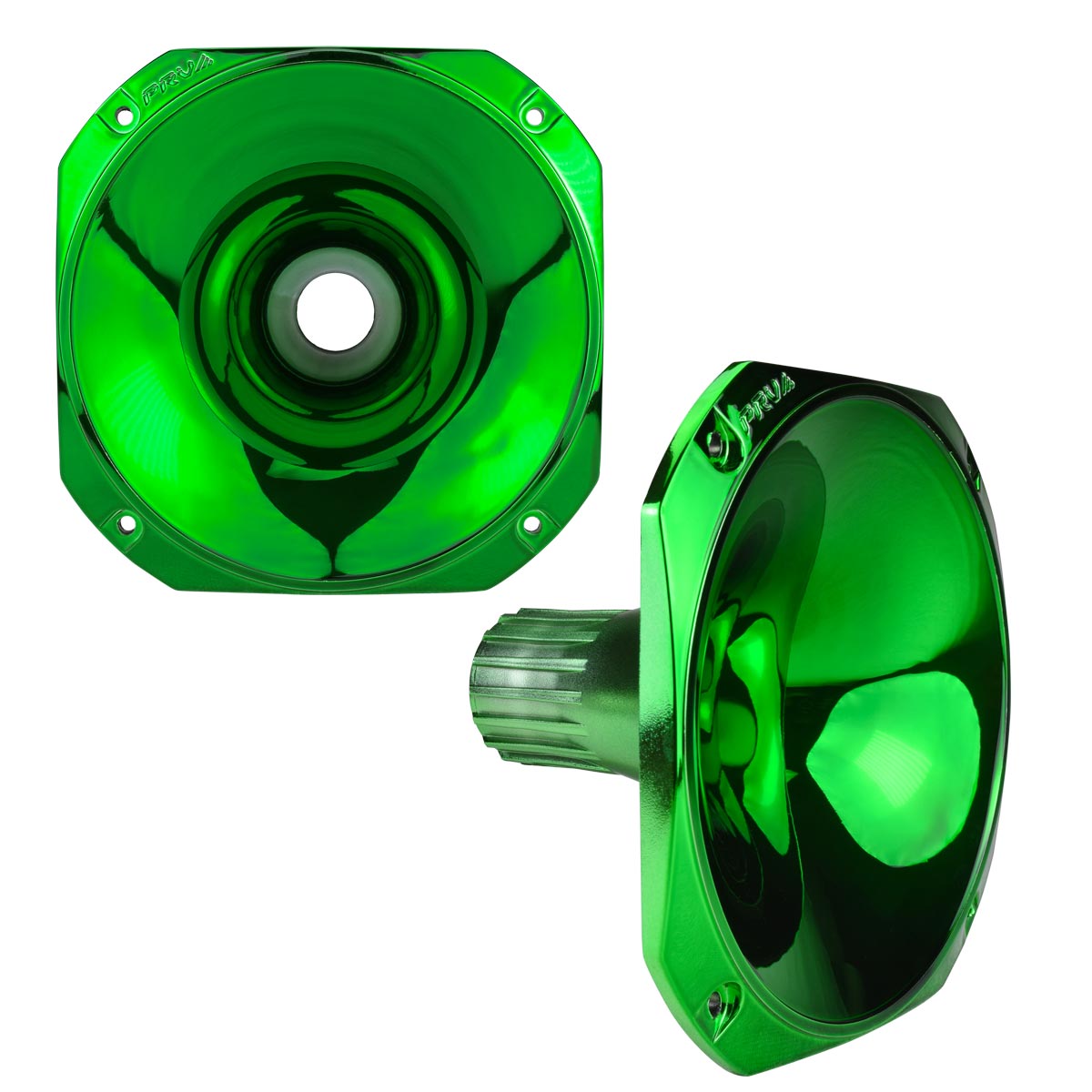

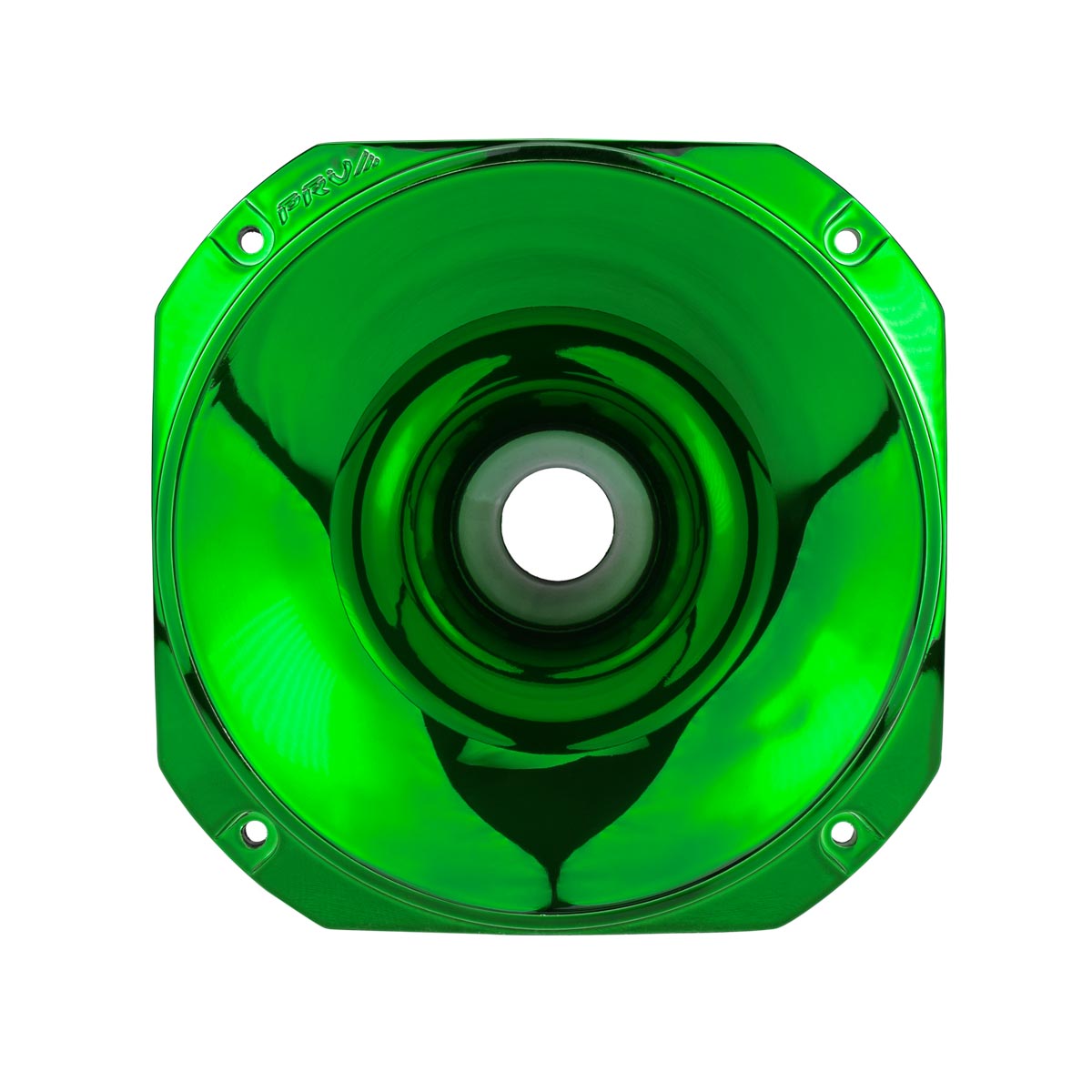

Add a little color to your sound, in a good way, with PRV Audio’s WGP14-25 Green finished exponential horn. At under 4″ of depth this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with most 1″ compression drivers. The WGP14-25 Green-S is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 600 Hz.

  • Under 4″ of mounting depth for installation in tight spaces
  • 1″ Exit throat
  • Non-resonant reinforced plastic construction
  • Minimum recommended frequency of 600 Hz
  • UV resistant Chrome Finish

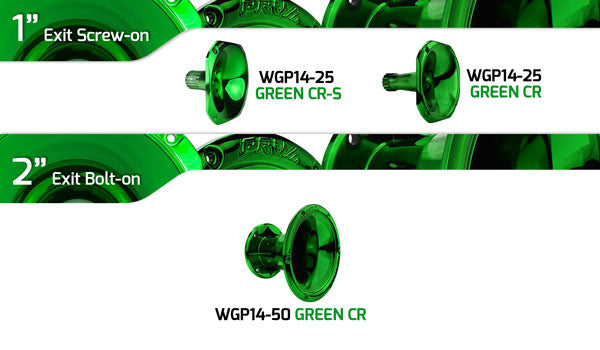

WGP14-25 Green CR-S is a 1″ Exit Screw-On HORN that fits any of our 1″ Exit Screw-on compression drivers

WGP14-50 Green CR Green Chrome finish all around

WGP14-50 series are 2” Exit Bolt-on HORNS that fits any of our 2″ Exit Bolt-On compression drivers

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4 mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 45°
  • Vertical: 45°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Green

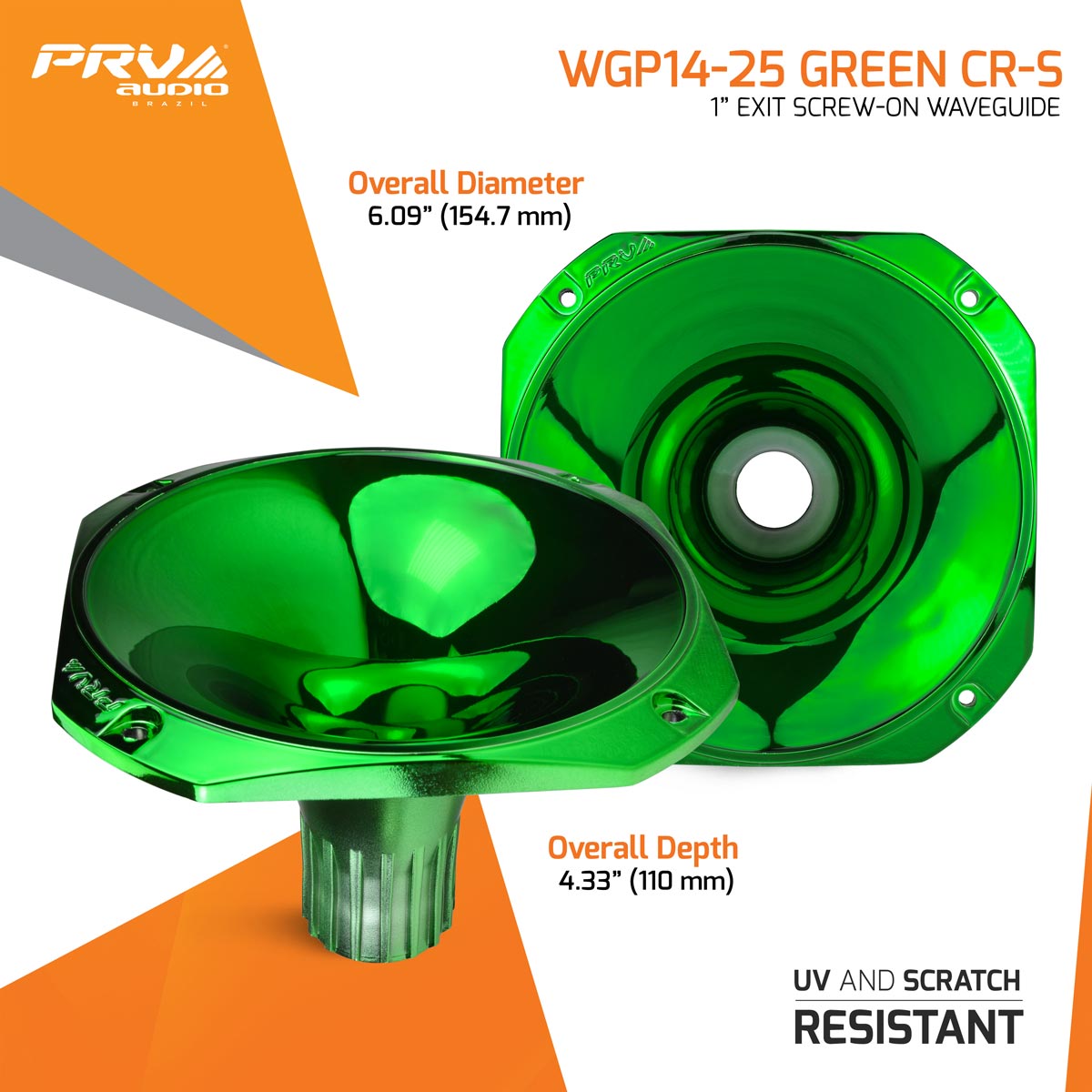

  • Dimensions:
  • Height: 6.09″ (154.7 mm)
  • Width: 6.09″ (154.7 mm)
  • Depth: 4.33″ (110 mm)
  • Mount Depth: 3.98″ (100 mm)
  • Baffle Cutout:
  • Width: 5.51″ (140 mm)
  • Net weight: 0.2 lb (0.09 kg)

EXTRA INFO

PRV WGP14-25 GREEN CR-S Waveguide DATASHEET Download
PRV WGP14-25 GREEN CR-S Waveguide DATASHEET Download
