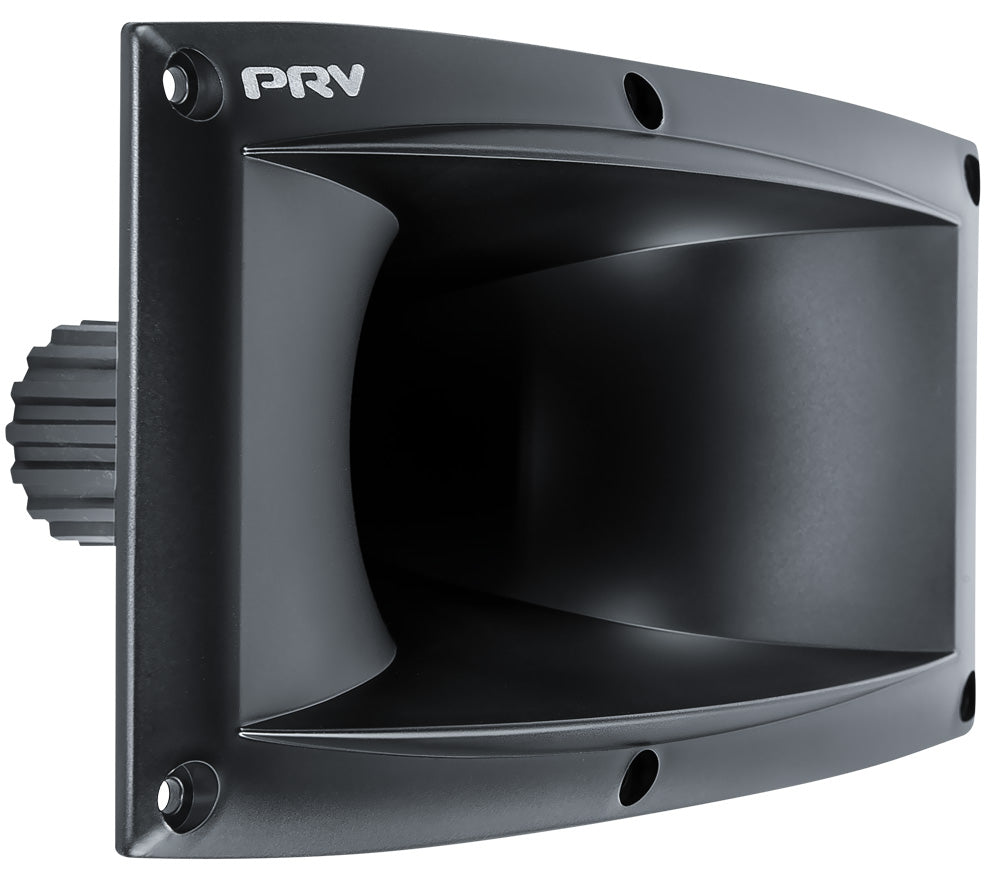

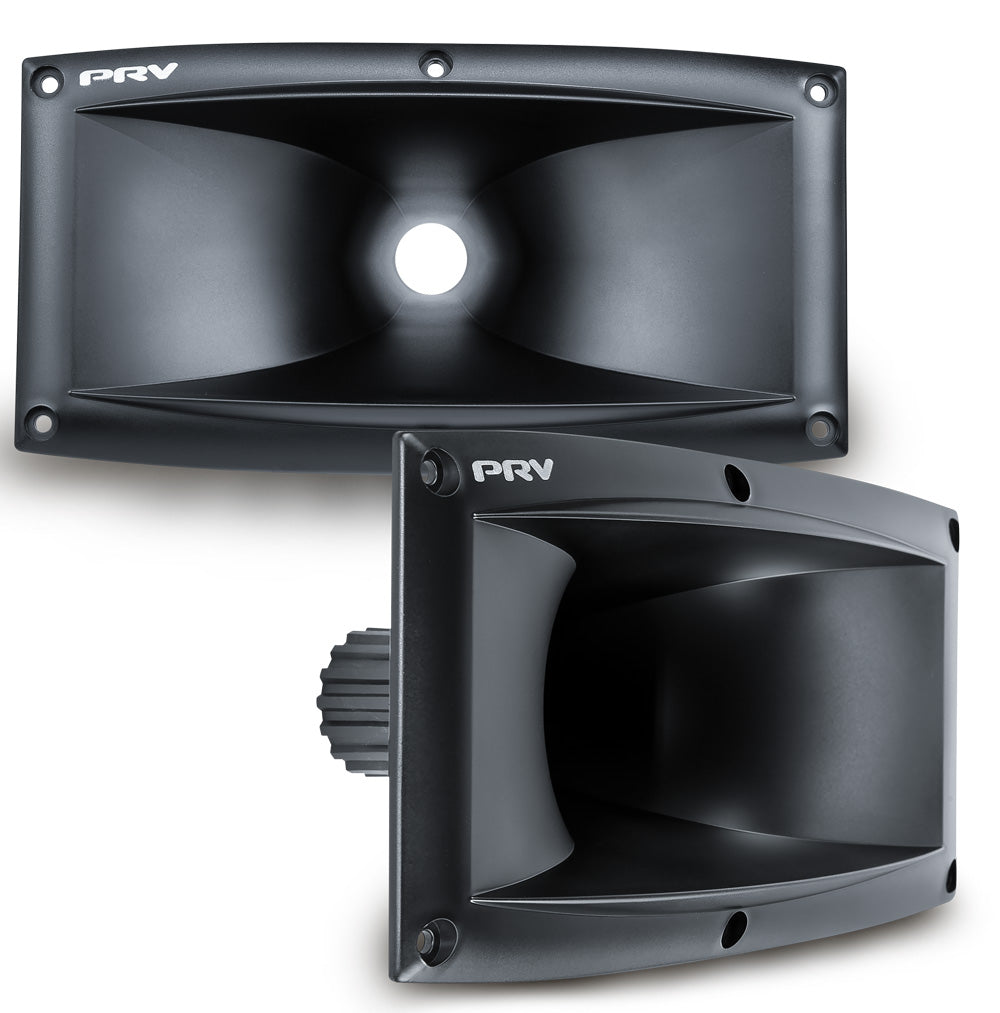

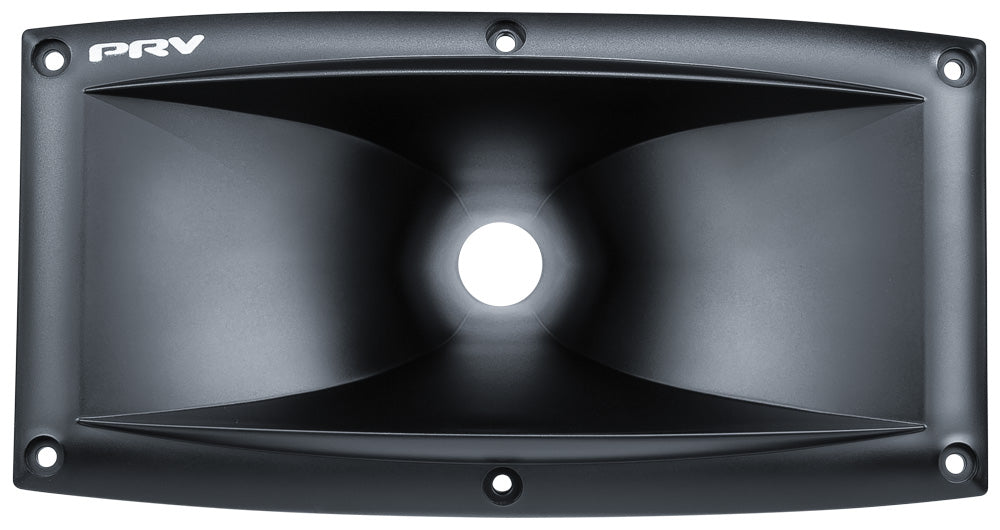

PRV WG23-25 Waveguide

PRV WG23-25 Waveguide

SKU: WG23-25

PRV WG23-25 Waveguide

PRV WG23-25 Waveguide

SKU: WG23-25

  • 1" Exit Screw-On
  • 4.84" Mount Depth
  • Black Finish

$7.91
$9.89

In stock

  • 1" Exit Screw-On
  • 4.84" Mount Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

1″ Exit – ABS Wave Guide – Screw-on

Highlights

  • 1” Throat Diameter
  • Screw-on
  • Wide Horizontal dispersion
  • 100° x 40° Nominal Coverage

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 100°
  • Vertical: 40°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 10.0″ (254mm)
  • Width: 5.30″ (134mm)
  • Depth: 5.67″ (144mm)
  • Mount Depth: 4.84″ (123mm)
  • Baffle Cutout:
  • Width: 7.50″ (190mm)
  • Height: 3.50″ (89mm)
  • Net weight: 0.37lb (0.17kg)

EXTRA INFO

PRV WG23-25 Waveguide DATASHEET Download
PRV WG23-25 Waveguide DATASHEET Download
