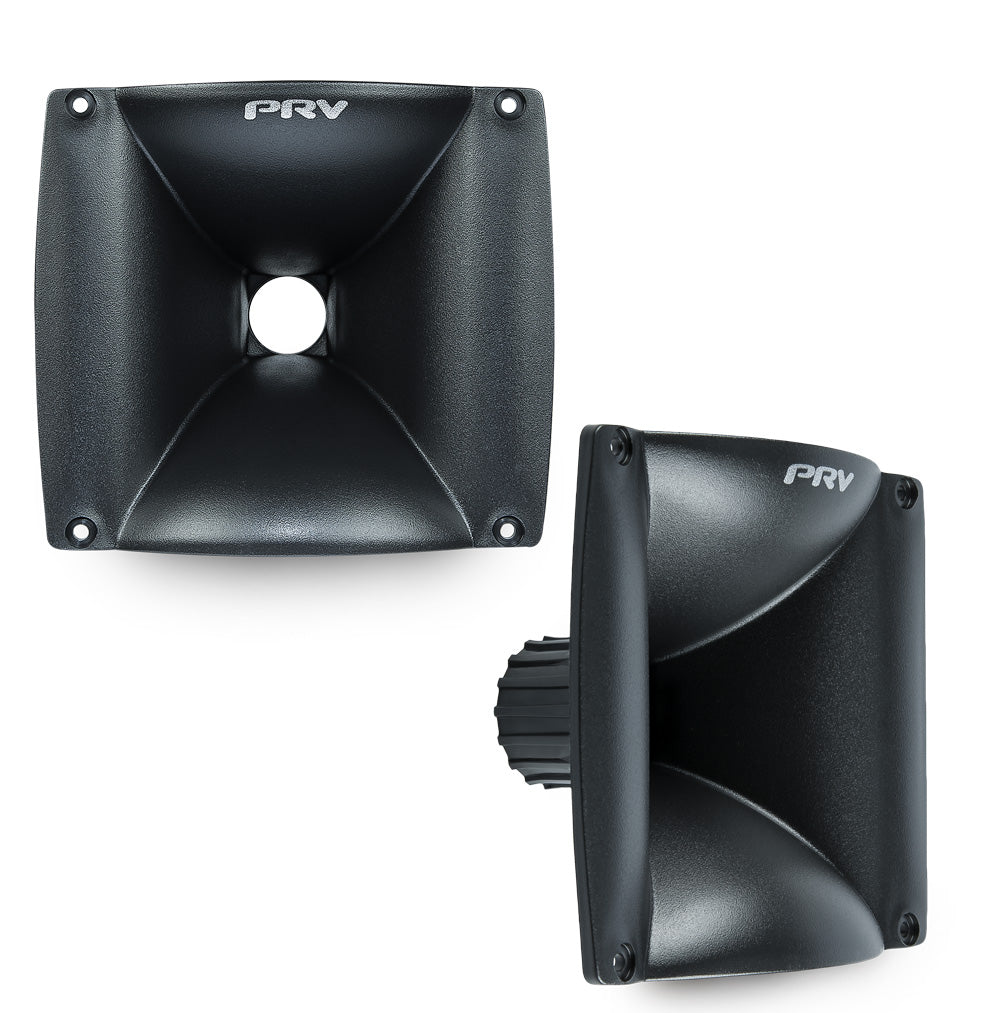

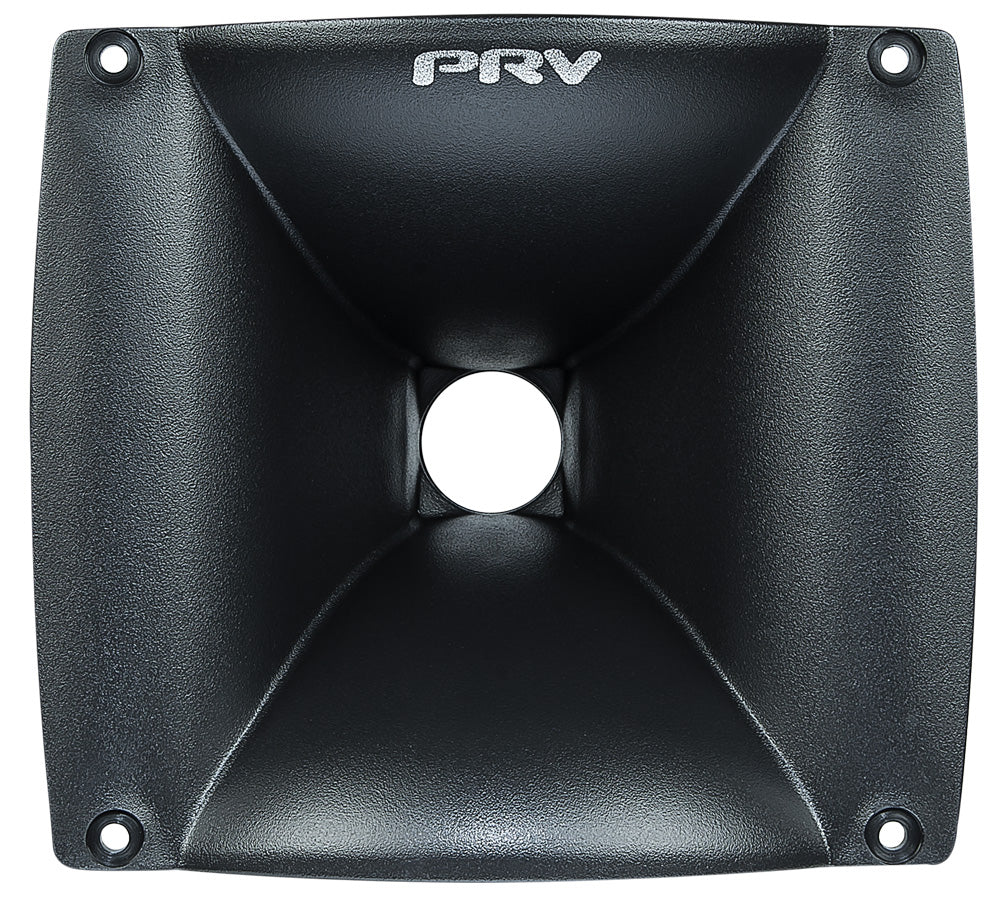

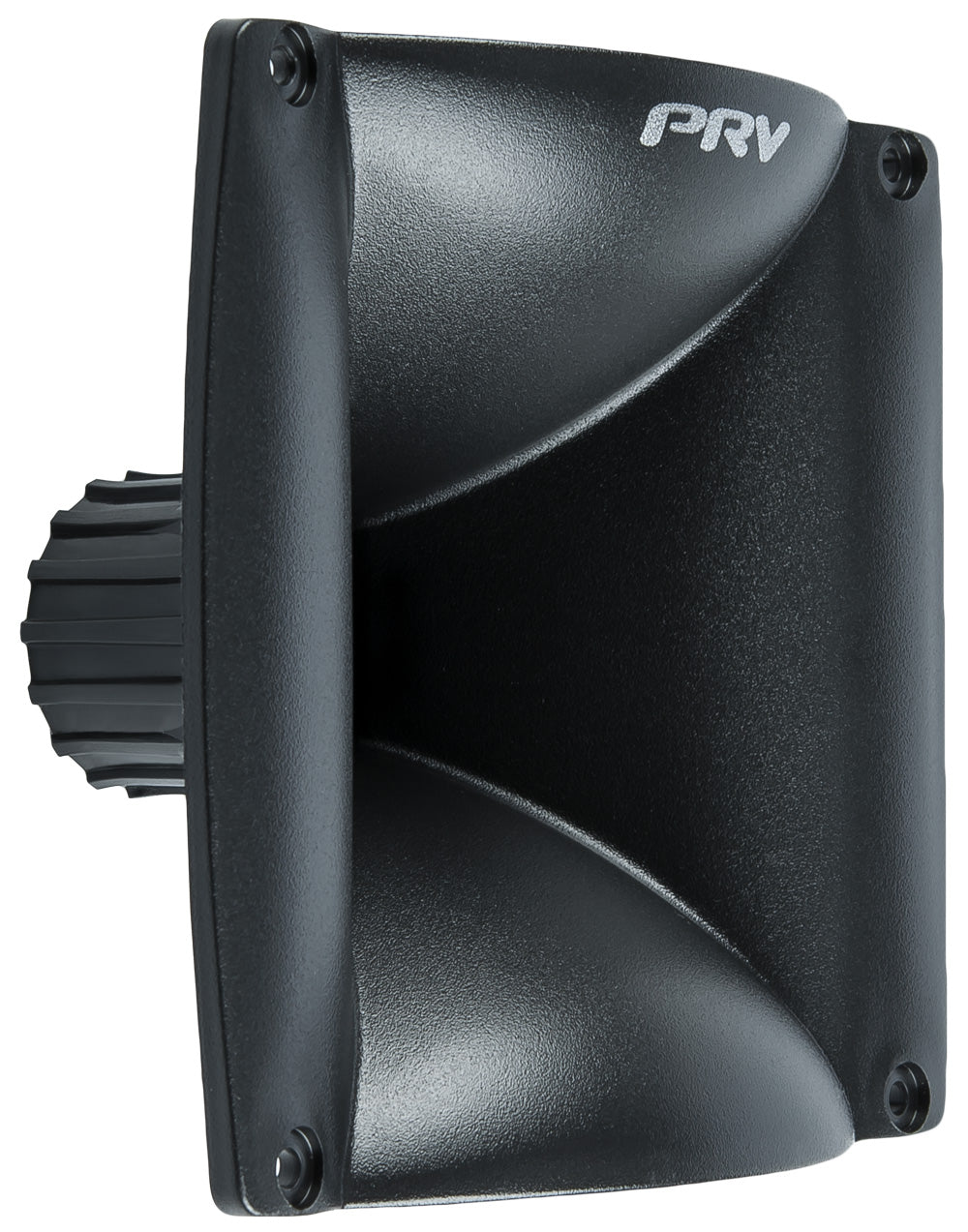

PRV WG17-25 Waveguide

PRV WG17-25 Waveguide

SKU: WG17-25

PRV WG17-25 Waveguide

PRV WG17-25 Waveguide

SKU: WG17-25

  • 1″ Exit Screw-On
  • 3.18″ Mount Depth
  • Black Finish

$7.91
$9.89

In stock

  • 1″ Exit Screw-On
  • 3.18″ Mount Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

1″ Exit – ABS Wave Guide – Screw-on

  • 1” Throat Diameter
  • Screw-on
  • 60° x 40° Nominal Coverage

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 60°
  • Vertical: 40°
  • Flare type: Bi-radial
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 5.57″ (141mm)
  • Width: 6.32″ (160mm)
  • Depth: 4.05″ (103mm)
  • Mount Depth: 3.18″ (81mm)
  • Baffle Cutout:
  • Width: 4.57″ (116mm)
  • Height: 5.11″ (130mm)
  • Net weight: 0.24lb (0.17kg)

EXTRA INFO

PRV WG17-25 Waveguide DATASHEET Download
PRV WG17-25 Waveguide DATASHEET Download
