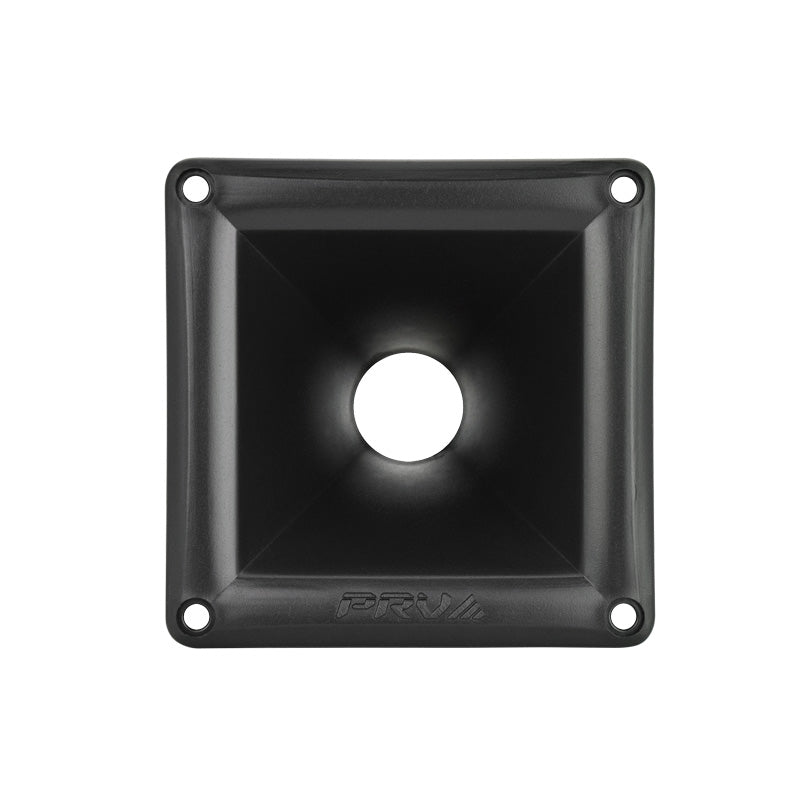

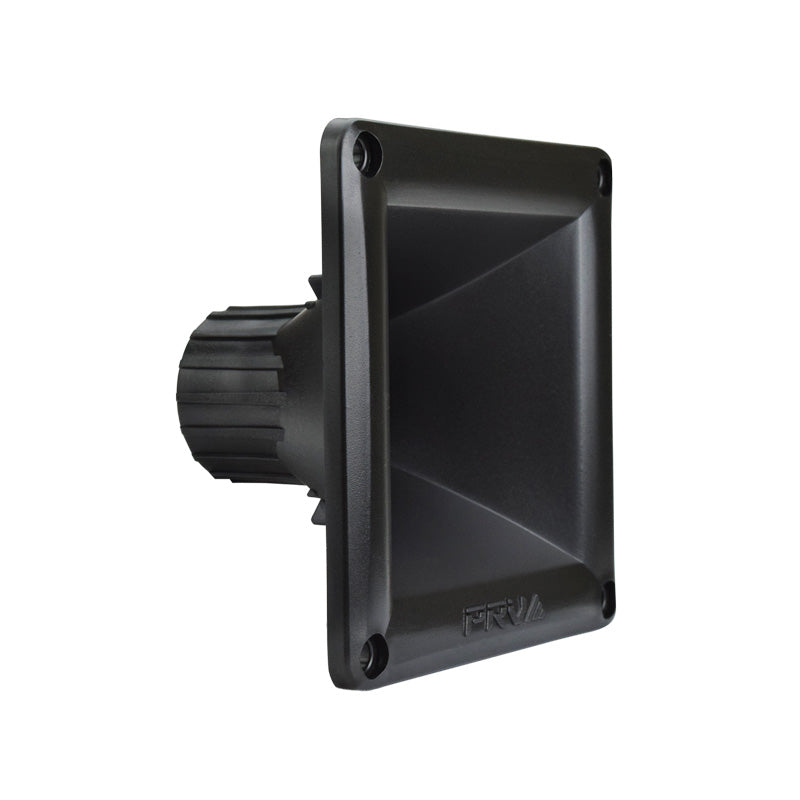

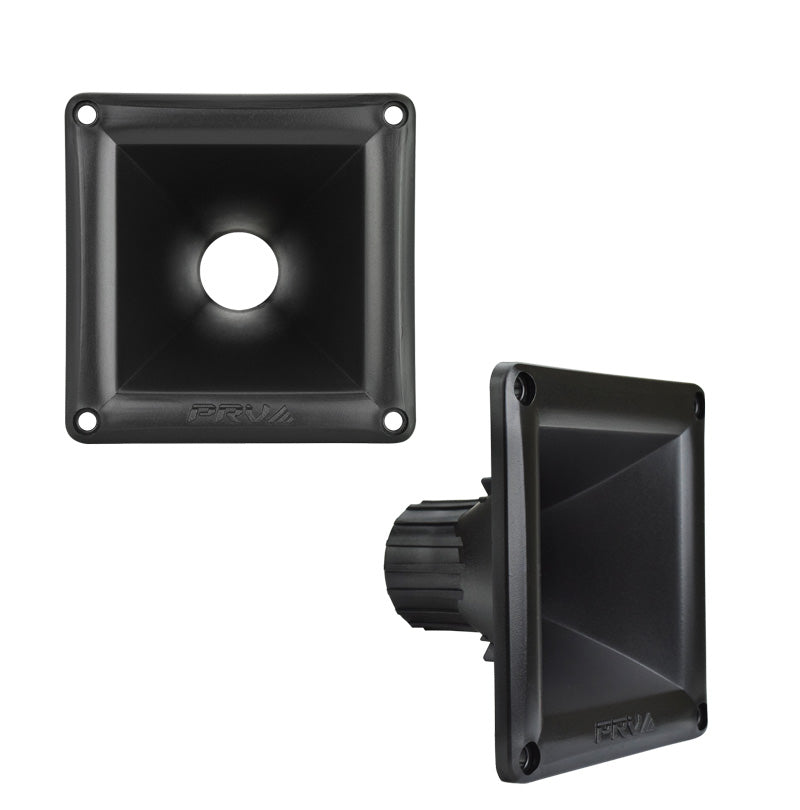

PRV WG11-25 Waveguide

PRV WG11-25 Waveguide

SKU: SKU:WG11-25

Skip to product information

PRV WG11-25 Waveguide

PRV WG11-25 Waveguide

SKU: SKU:WG11-25

  • 1" Exit Screw-On
  • 2.71" Mount Depth
  • Black Finish

$4.91
$6.14

In stock

  • 1" Exit Screw-On
  • 2.71" Mount Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

Screw-On compact PRV Audio’s WG11-25 exponential horn. At under 3″ of depth this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with most 1″ compression drivers. The WG11-25 is constructed from non-resonant ABS plastic making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1200 Hz.


  • Under 3″ of mounting depth for installation in tight spaces
  • 1″ Exit throat
  • Non-resonant reinforced plastic construction
  • Minimum recommended frequency of 1200 Hz

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 60°
  • Vertical: 60°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black
  • Dimensions:
  • Height: 4.5″ (115mm)
  • Width: 4.5″ (115mm)
  • Depth: 2.95″ (75mm)
  • Mount Depth: 2.71″ (69mm)
  • Baffle Cutout:
  • Width: 3.31″ (84mm)
  • Height: 3.31″ (84mm)
  • Net weight: 0.18lb (0.08kg)
