PRV WG08-25 Waveguide

PRV WG08-25 Waveguide

SKU: WG08-25
New

PRV WG08-25 Waveguide

PRV WG08-25 Waveguide

SKU: WG08-25

  • Mini 1" Exit Screw-On
  • 1.72" Mounting Depth
  • Black Finish

$7.91
$9.89

In stock
  • Mini 1" Exit Screw-On
  • 1.72" Mounting Depth
  • Black Finish

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

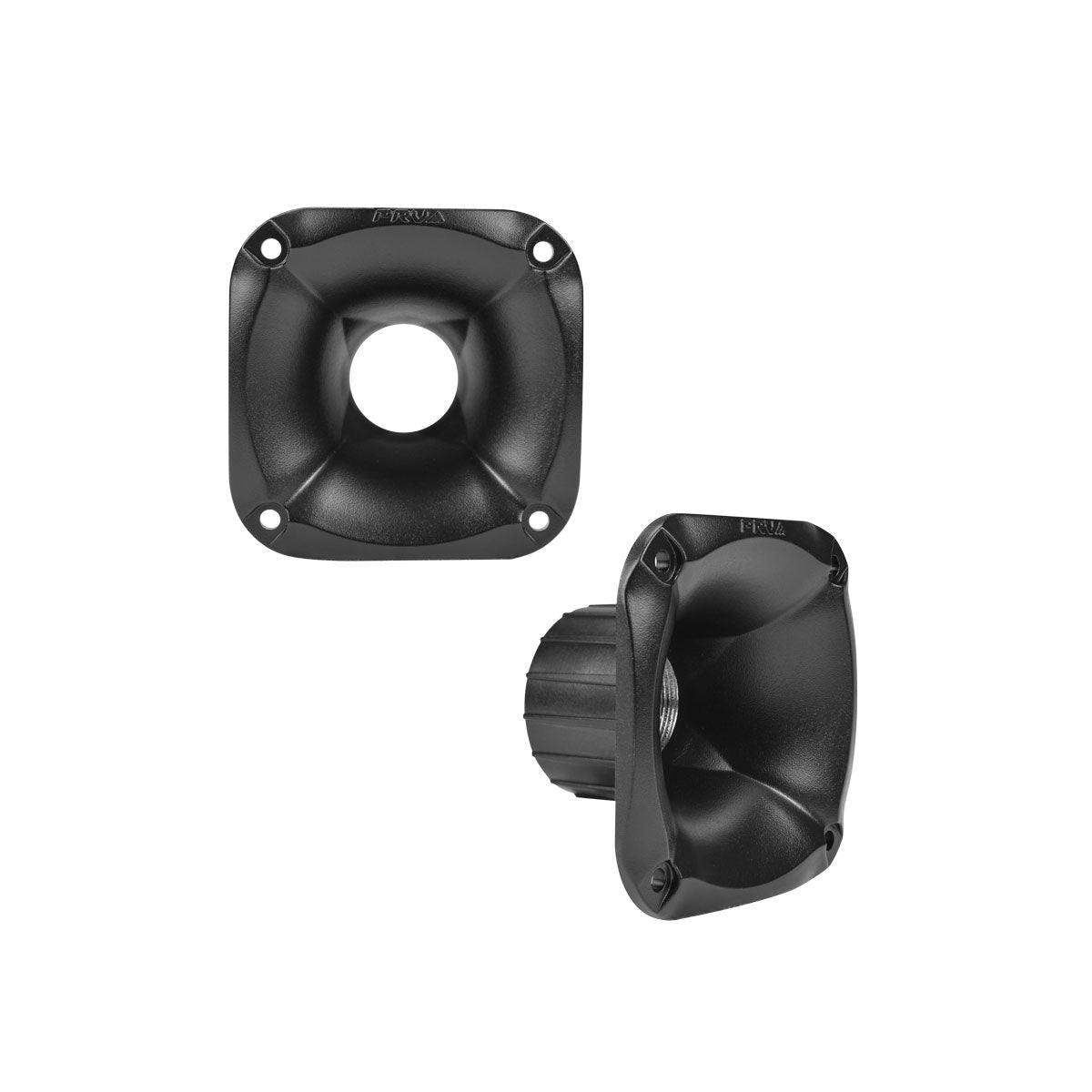

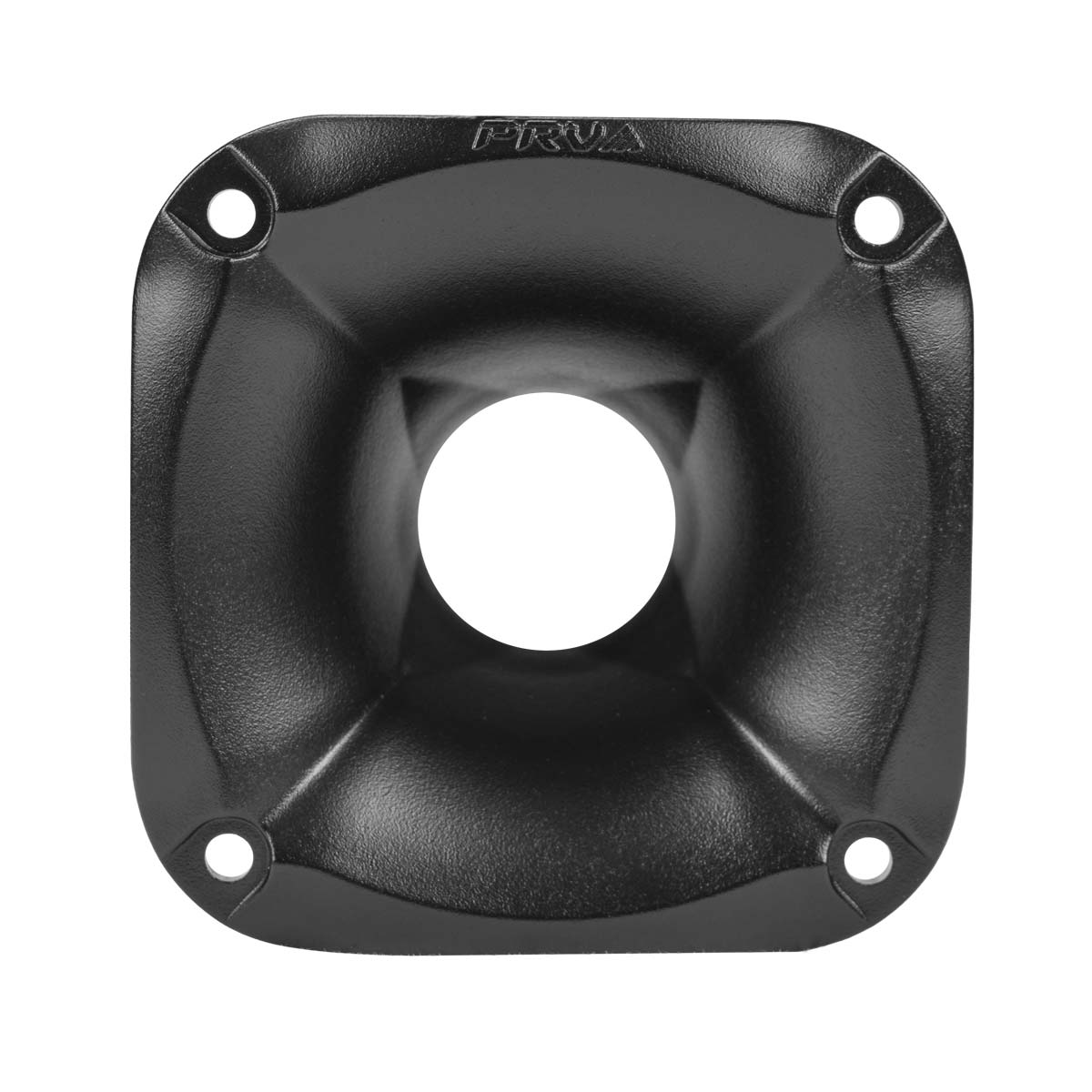

Screw-on mini waveguide WG08-25 from PRV Audio is an exponential horn to consider! At 1.72″ of depth, this horn makes installation easy in tight spaces.

A standard 1-3/8″-18 TPI Screw on mount is compatible with any PRV 1″ exit screw-on compression drivers. The WG08-25 is constructed from non-resonant ABS plastic, making it perfect for outdoor or automotive use. Acoustic loading is maintained down to 1600 Hz.

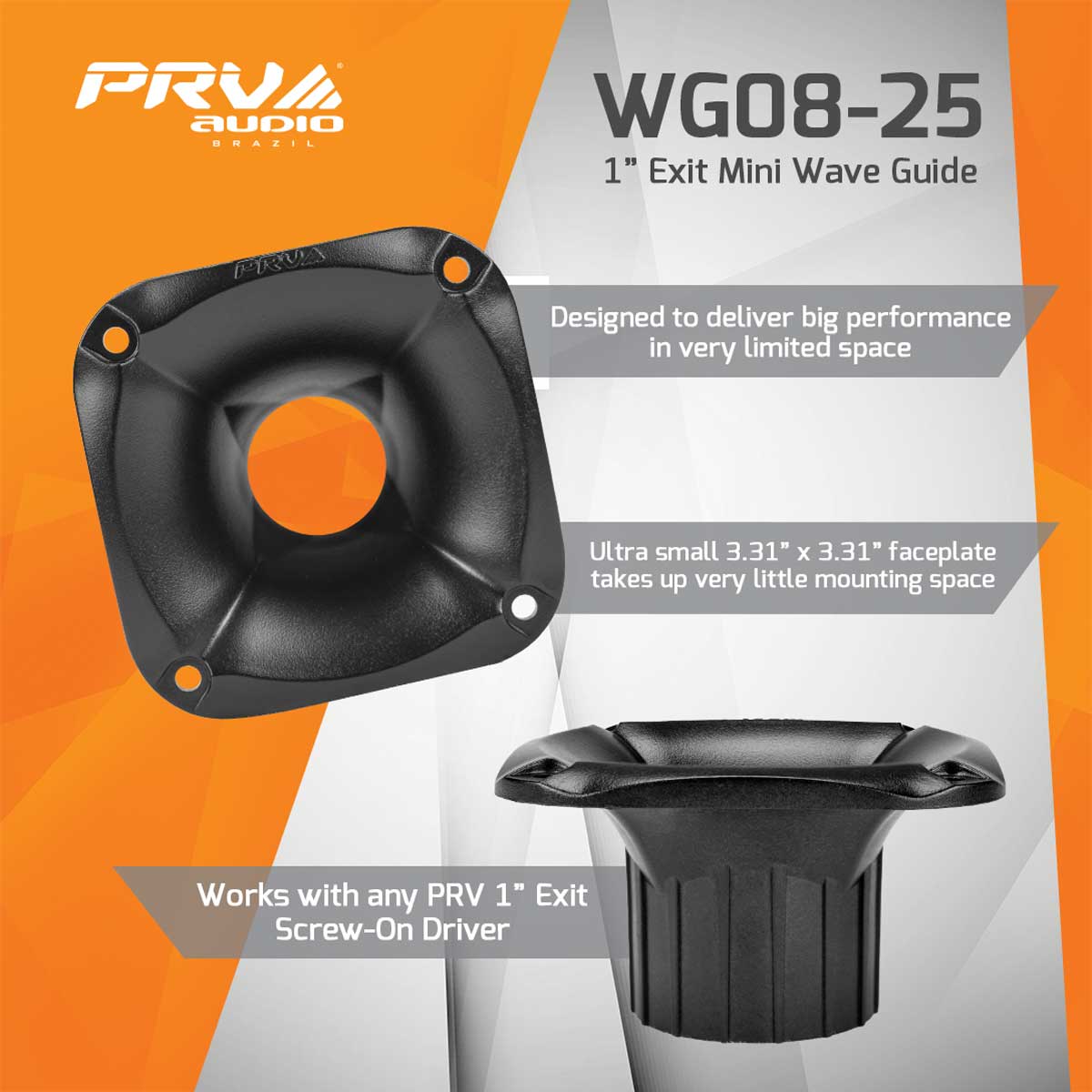

WG08-25 Compact Design Highlights

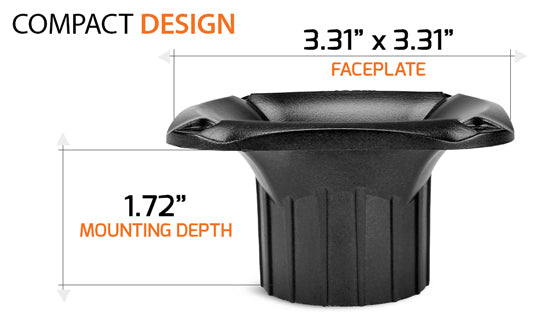

  • Its slim mounting depth of 1.72″, with an ultra small 3.31″ x 3.31″ faceplate, takes up very little mounting space, allowing you to mount a compression driver between speakers.
  • Designed to deliver big performance in very limited space, when you add any PRV 1″ Exit Driver to it.
  • Its 90° x 90° dispersion pattern is ideal for short throw applications
  • Non-resonant reinforced plastic construction, with unique pattern dispersion to minimize reflection for a more consistent sound
  • Recommended minimum crossover frequency of 1,600 Hz

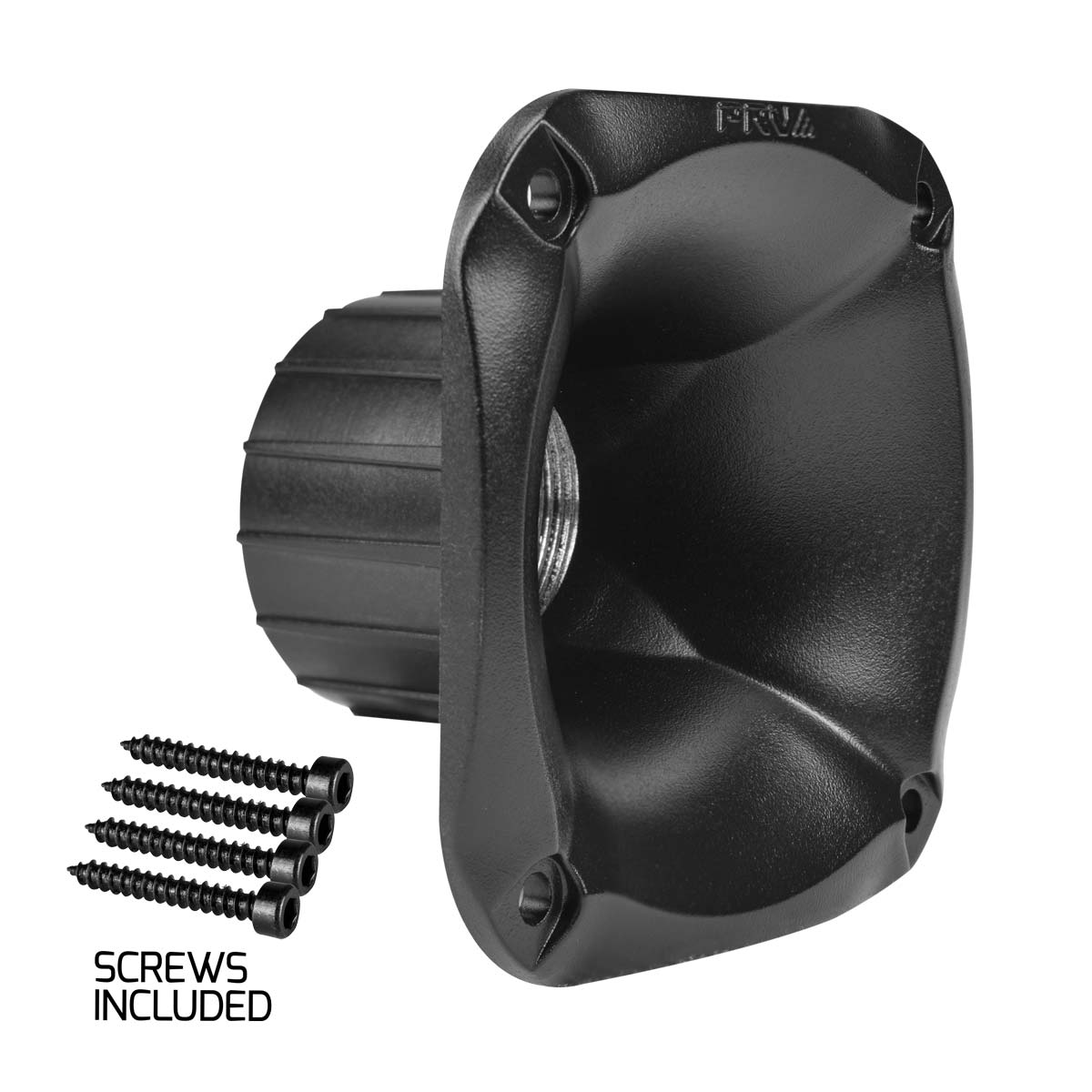

  • Includes 4x screws

Technical Details

GENERAL SPECIFICATIONS

  • Throat Diameter: 1” (25.4mm)
  • Mounting Type: Screw-on
  • Thread dimensions: 1-3/8″
  • Nominal Coverage:
  • Horizontal: 90°
  • Vertical: 90°
  • Flare type: Exponential
  • Material: Plastic (ABS)
  • Finish / Coating: Black

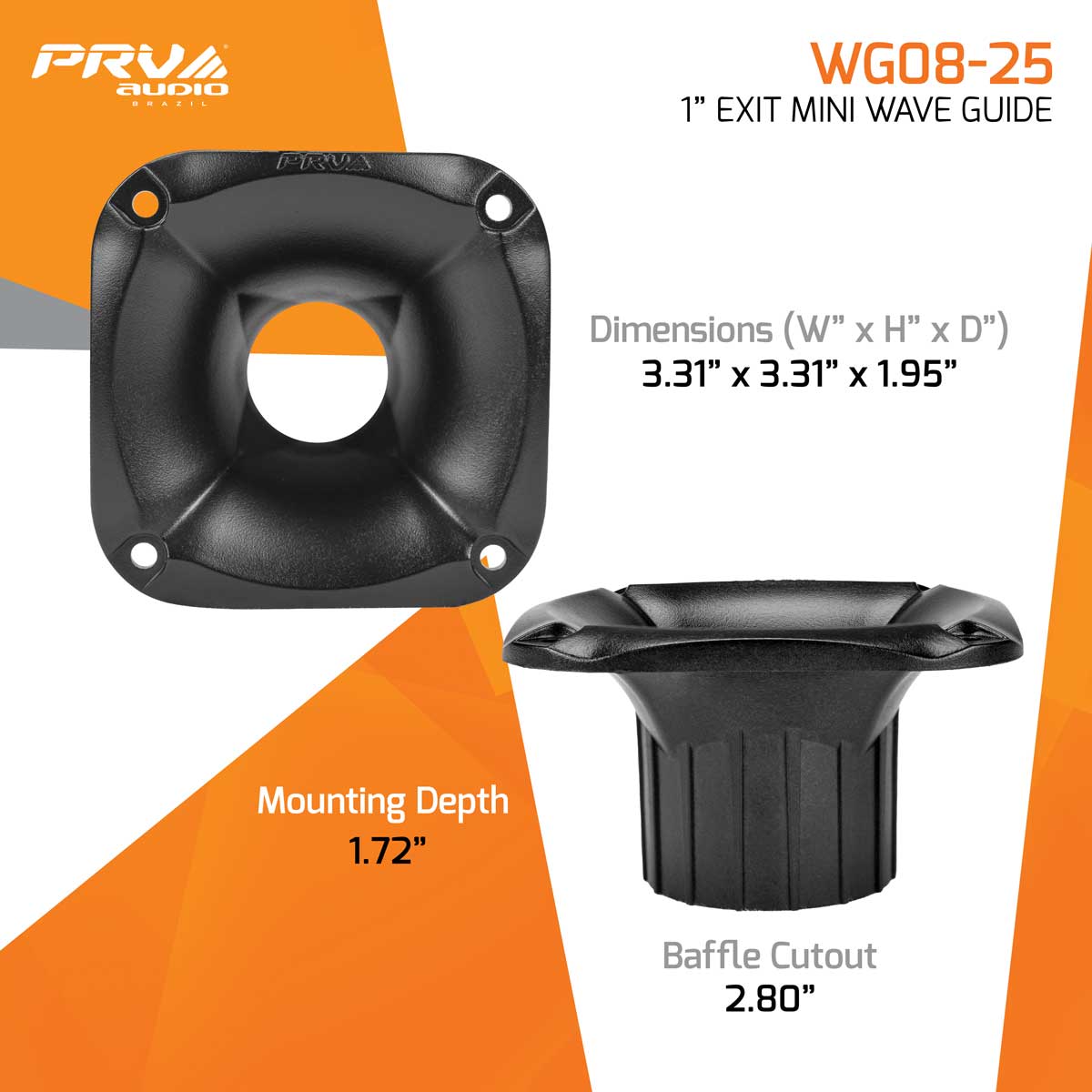

  • Dimensions:
  • Height: 3.31″ (84mm)
  • Width: 3.31″ (84mm)
  • Depth: 1.95″ (49.5mm)
  • Mount Depth: 1.72″ (43.5mm)
  • Baffle Cutout:
  • Width: 2.80″ (71mm)
  • Height: 3.31″ (84mm)
  • Net weight: 0.13lb (0.06kg)

EXTRA INFO

PRV WG08-25 Waveguide DATASHEET Download
PRV WG08-25 Waveguide DATASHEET Download
