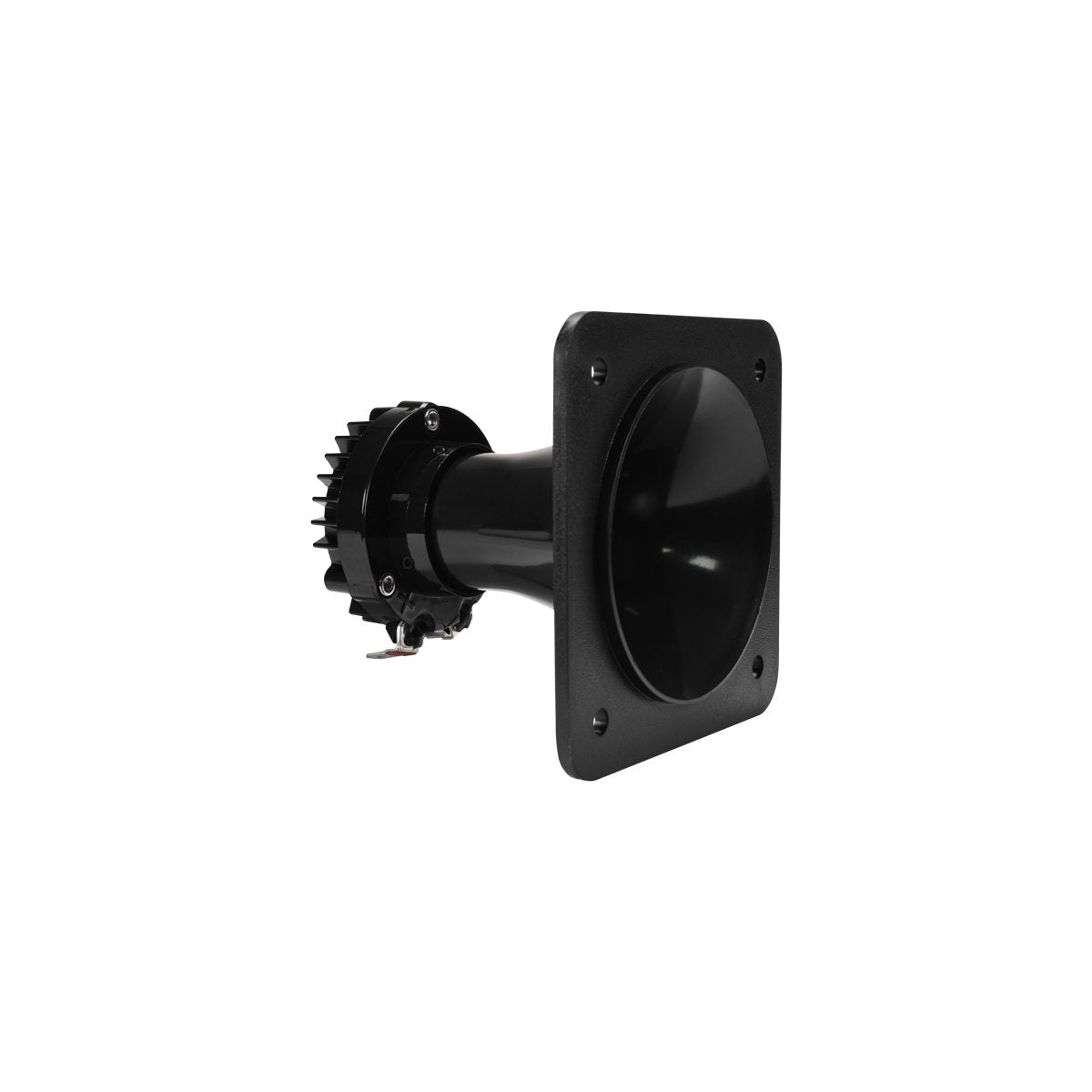

TPT-DH100 Driver + Horn Combo

TPT-DH100 Driver + Horn Combo

SKU: SKU:TPT-DH100

Skip to product information

TPT-DH100 Driver + Horn Combo

TPT-DH100 Driver + Horn Combo

SKU: SKU:TPT-DH100

  • 1″ Exit Neodymium Driver + Plastic Horn
  • 200 Watts Continuous Power
  • 1,500 – 18,000 Hz / 106 dB
$16.95
$19.94

In stock

  • 200 Watts Continuous
  • 106 dB / 8 Ohm
  •  1.5KHz – 18KHz
  • Mounting Depth: 3.00″
  • 1″ Exit Neodymium Driver + Plastic Horn
  • 200 Watts Continuous Power
  • 1,500 – 18,000 Hz / 106 dB

Free Shipping available on orders over $1,500.00 in the U.S.

View full details

Features

TPT-DH100 1″ Exit Neodymium Driver + Plastic Horn Car Audio | Pro Audio

The TPT-DH100 compact horn loaded tweeter weighs less than 1/2 pound but has enough output capability to keep up with high SPL sound systems. A 1″ phenolic diaphragm is used to produce a smooth and natural response all the way up to 18,000 Hz. The horn loaded design controls dispersion and increases output to put the sound right where you need it.

With a compact neodymium motor, this high frequency driver weighs less than 1/2 pound without sacrificing efficiency or overall output capability. The low weight and compact design make this the ideal tweeter for installation into car doors and trunk lids.

  • Less than 1/2 lb for easy installation in car doors and trunk lids
  • 106 dB sensitivity for high output even with moderate power
  • Naturally damped phenolic diaphragm produces smooth high frequency response

Technical Details

GENERAL SPECIFICATIONS

  • Nominal Impedance 8 Ohm
  • Rated AES Power Handling (RMS)** 100 Watts
  • Program Power*** 200 Watts
  • Sensitivity 2.83V at 1m106 dB
  • Frequency Response at -10dB 1.5KHz – 18KHz
  • Voice Coil Diameter 1″
  • Diaphragm Phenolic
  • Magnet Type Neodymium

EXTRA INFO

  • Mounting Depth 3.00″
  • Front Mount Baffle Cutout 2.50″
  • Net Weight 0.40 Lbs
